Body Rear End Schematics

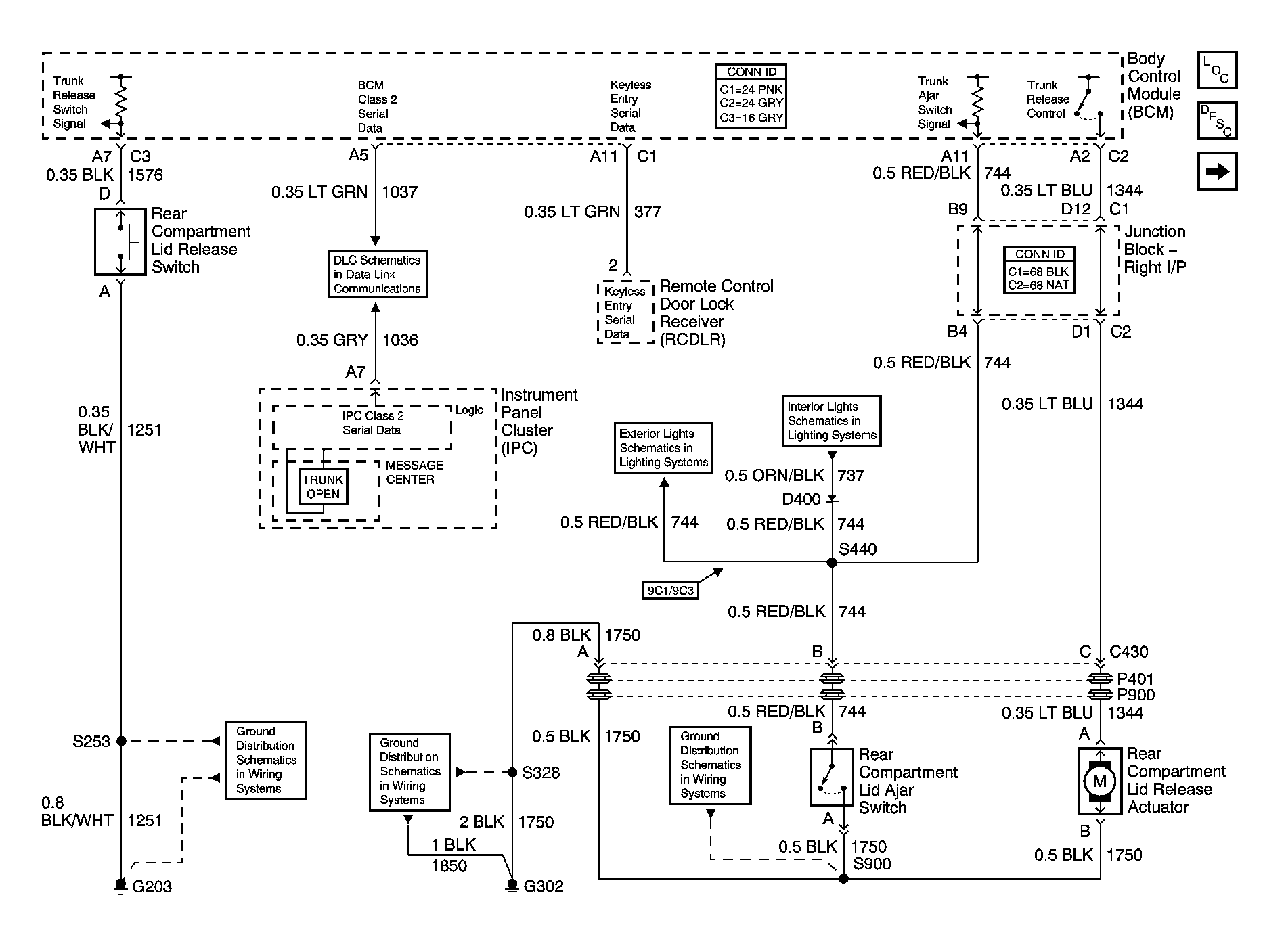

Fig 1: Decklid Release Schematic

GM866170

Courtesy of GENERAL MOTORS CORP.
