Exterior Lights Schematics

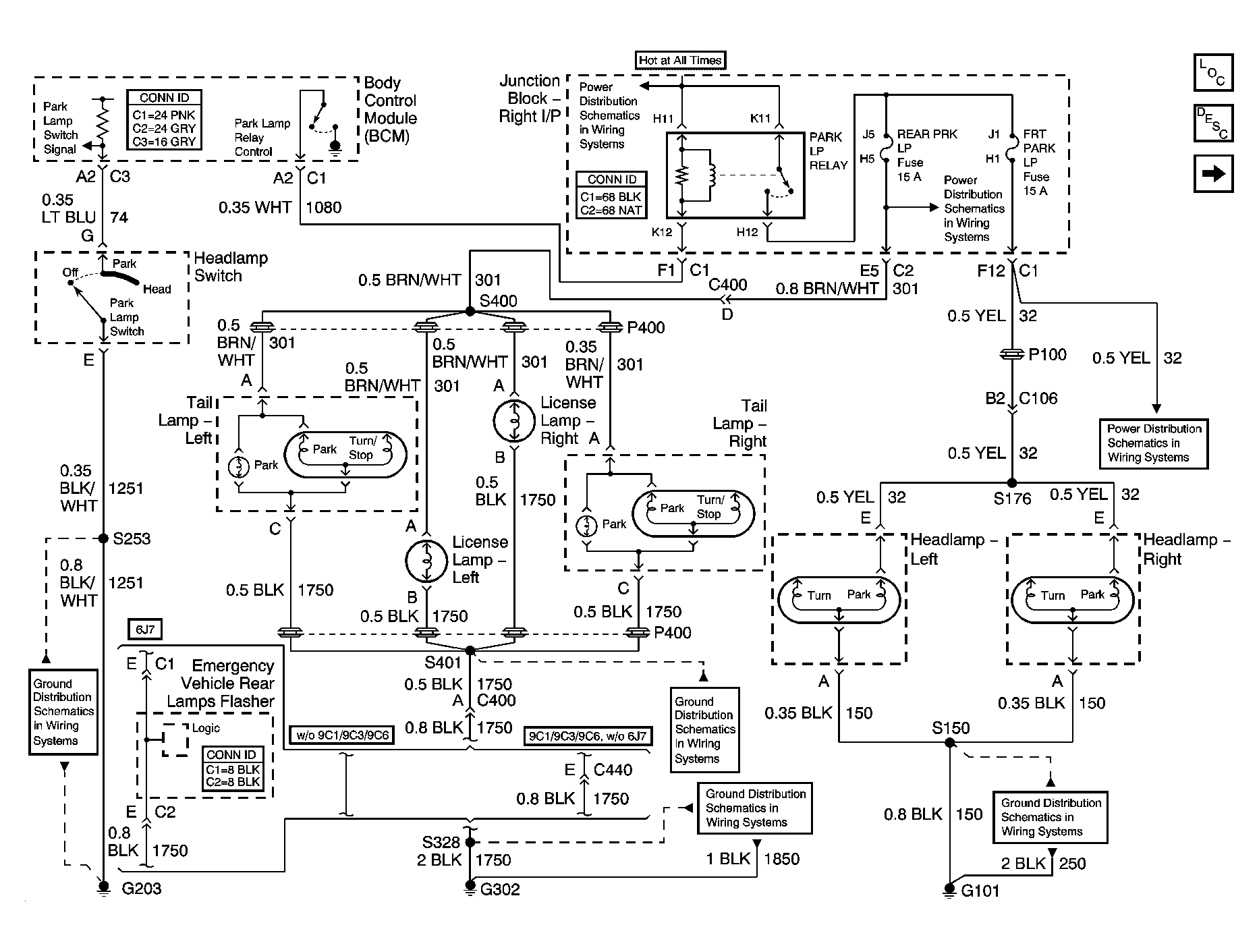

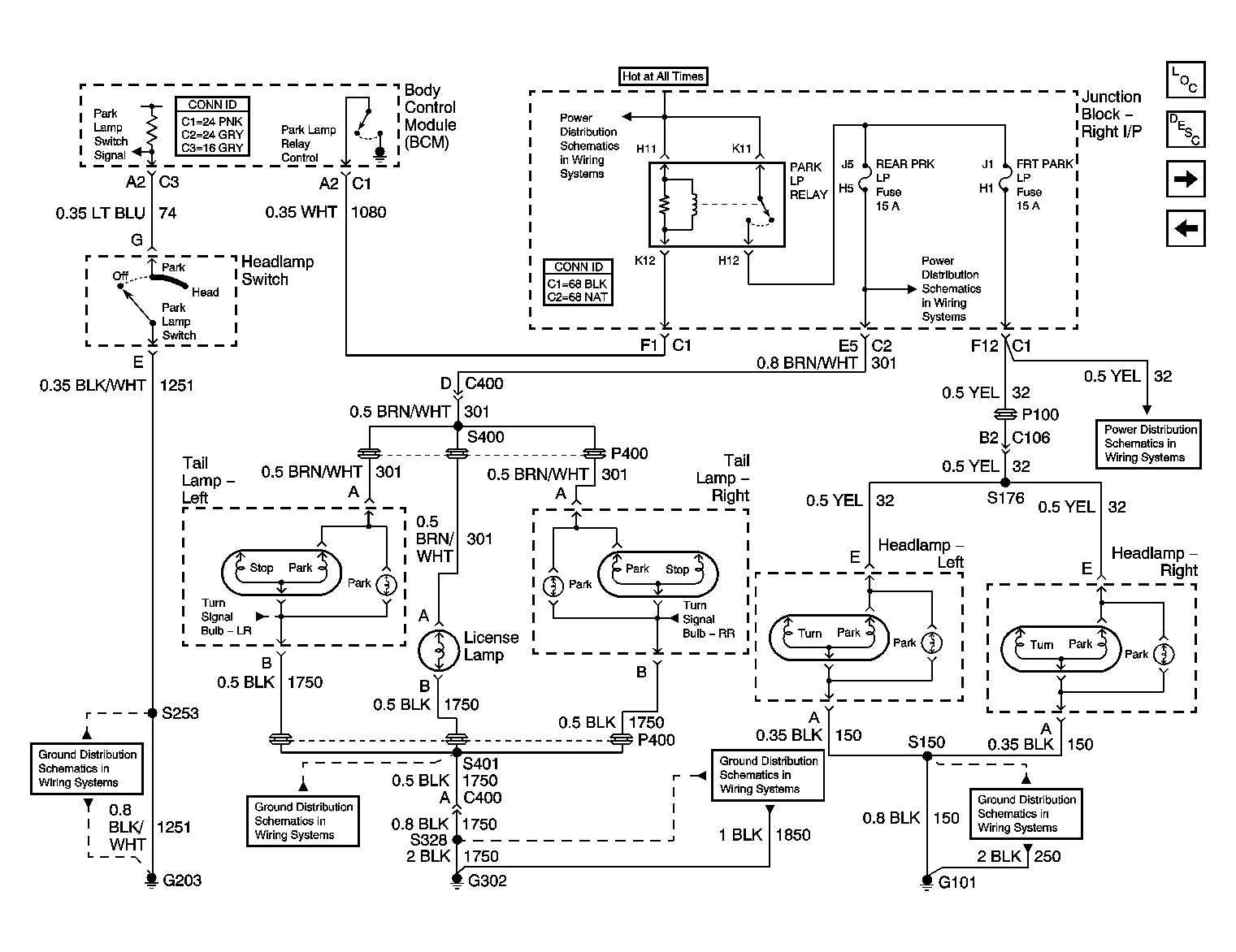

Fig 1: Park Lamps Schematic (Impala)

Courtesy of GENERAL MOTORS CORP.

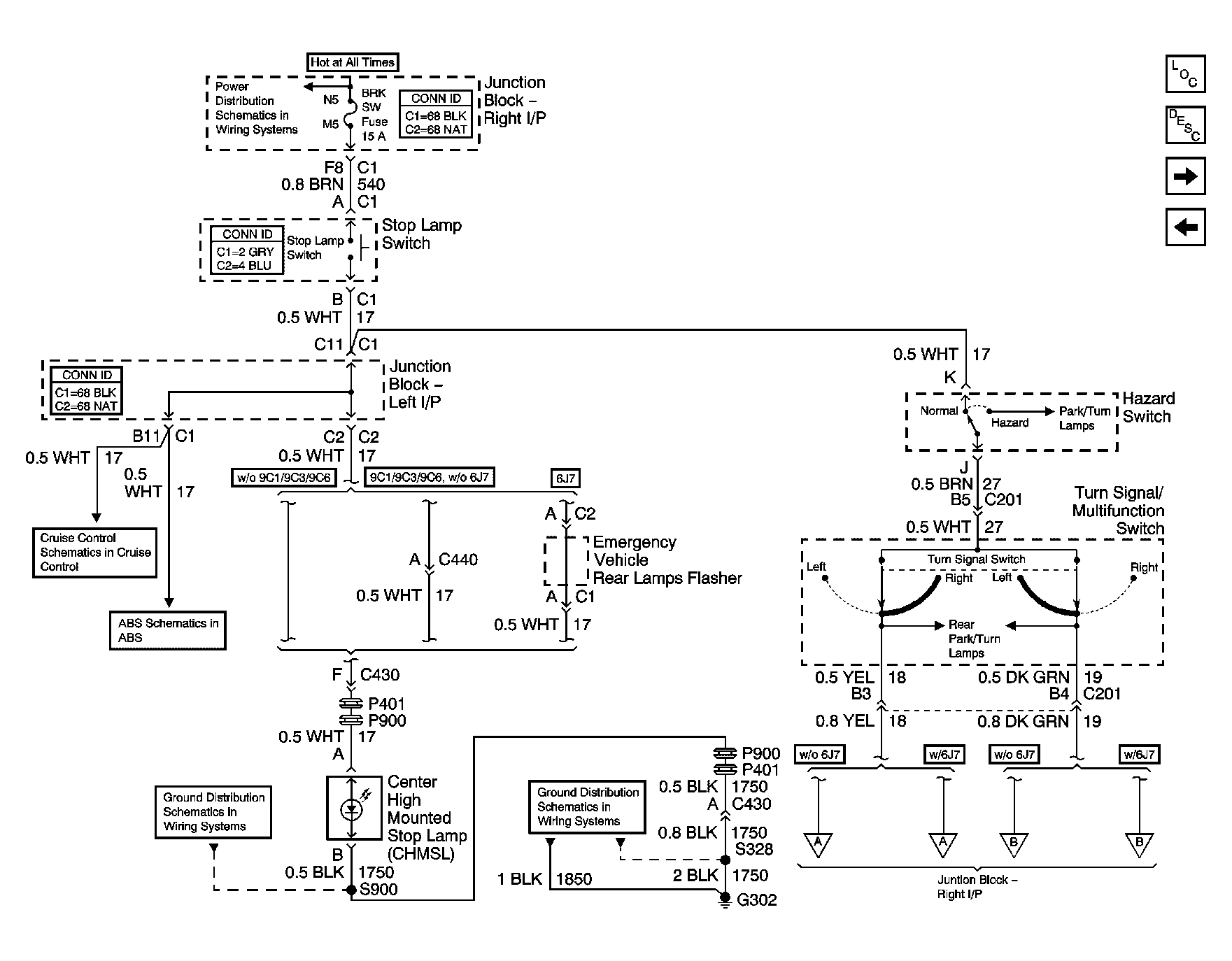

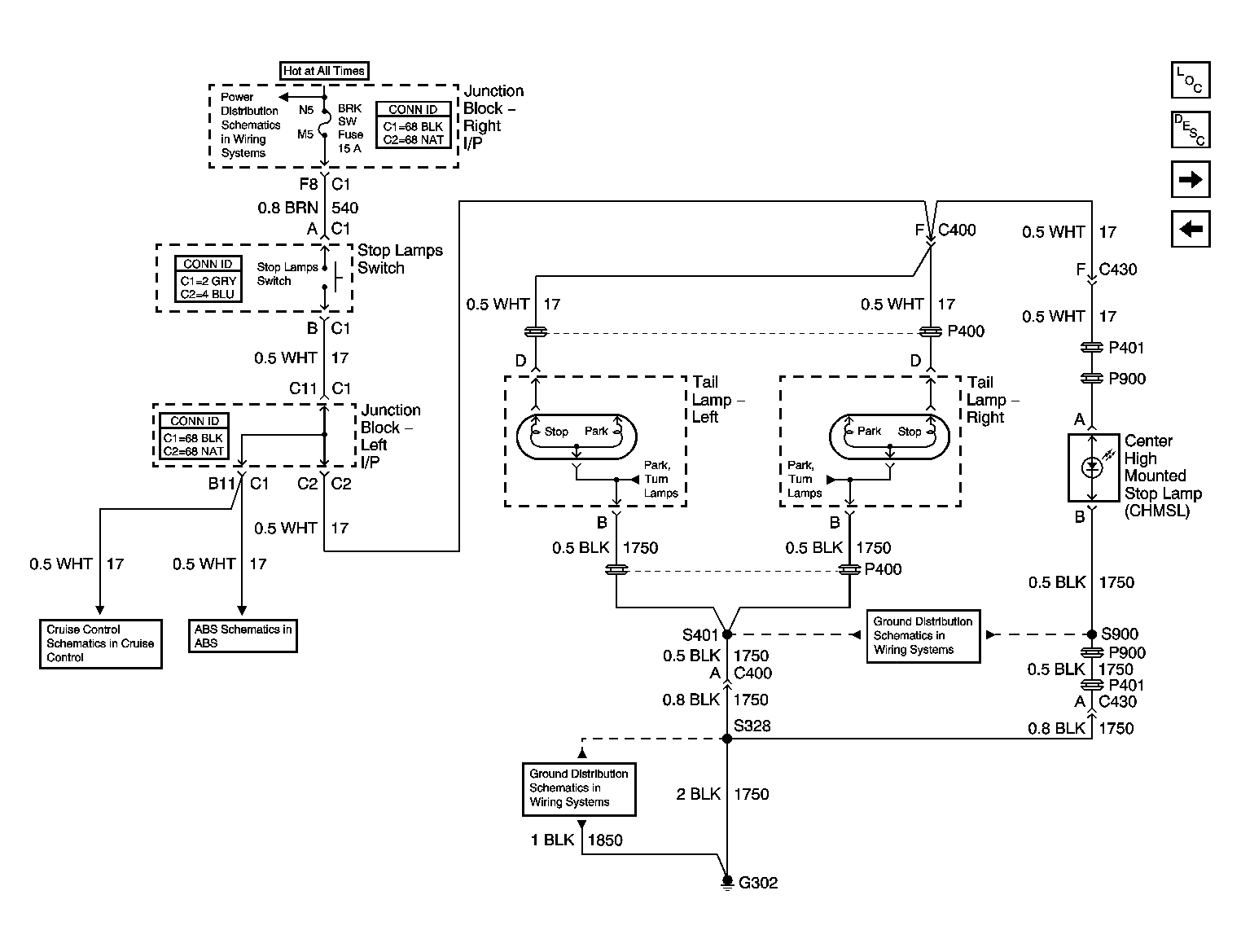

Fig 2: Stop Lamps Control & CHMSL Schematic (Impala)

Courtesy of GENERAL MOTORS CORP.

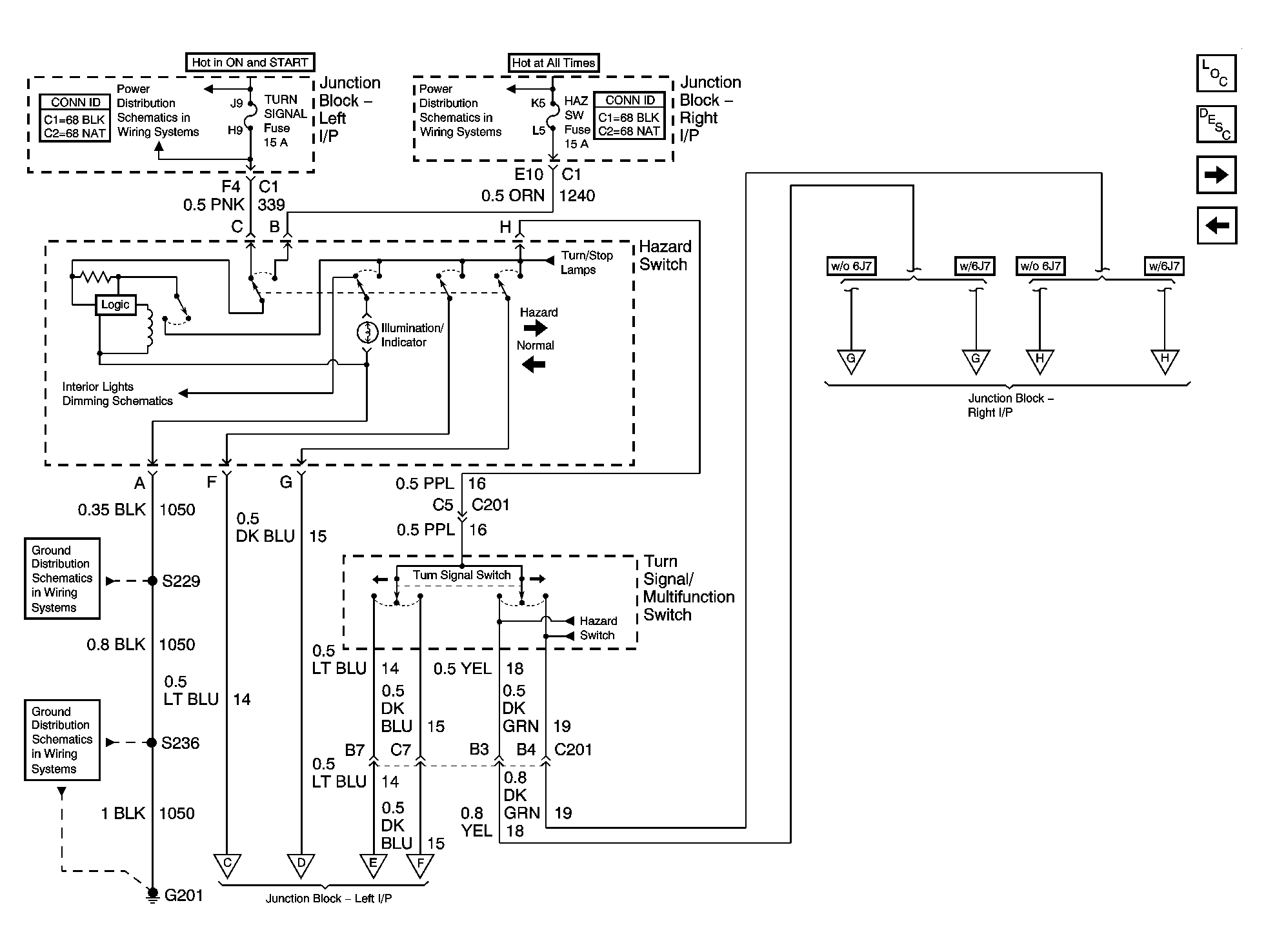

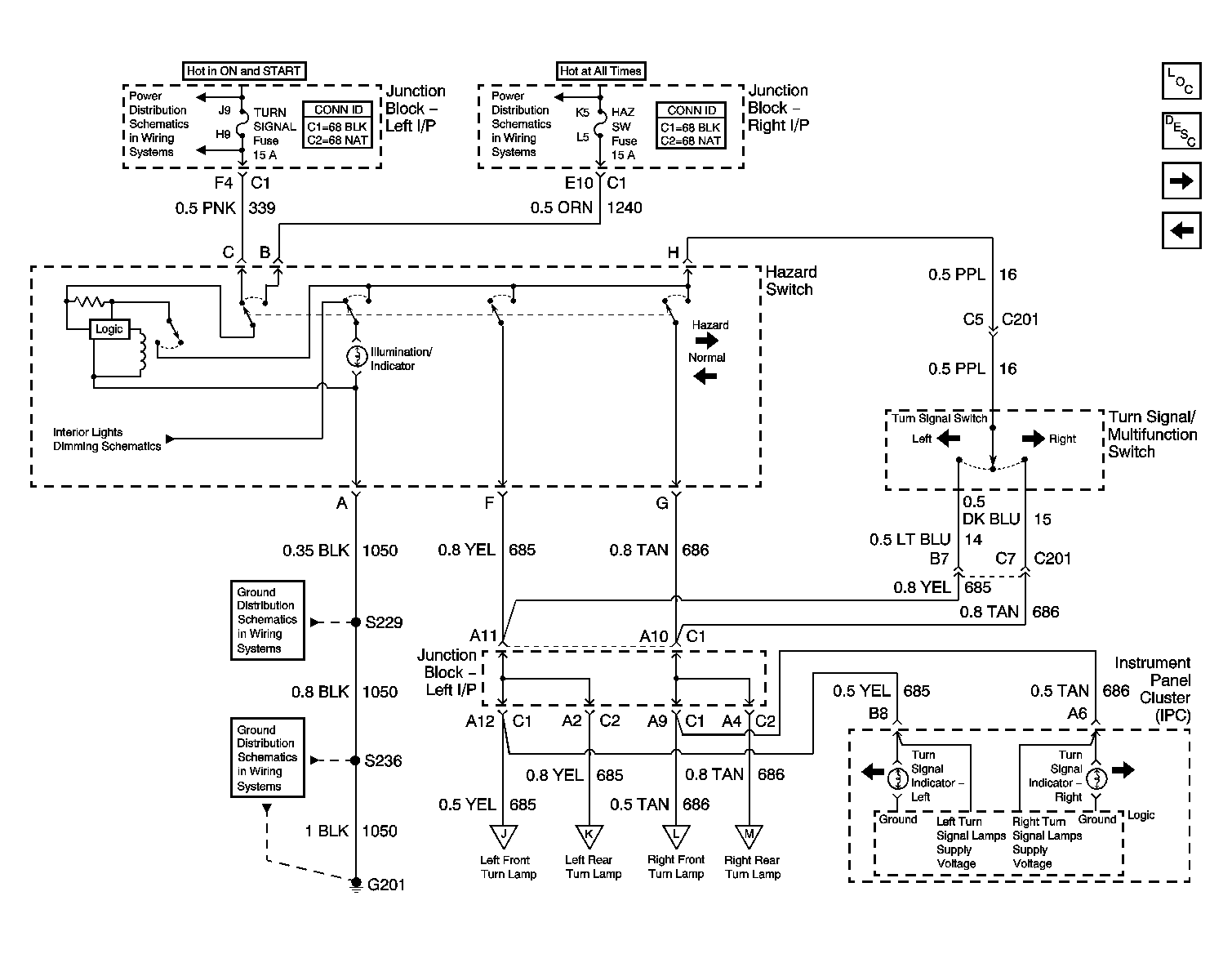

Fig 3: Turn/Hazard Lamps Control Schematic (Impala)

Courtesy of GENERAL MOTORS CORP.

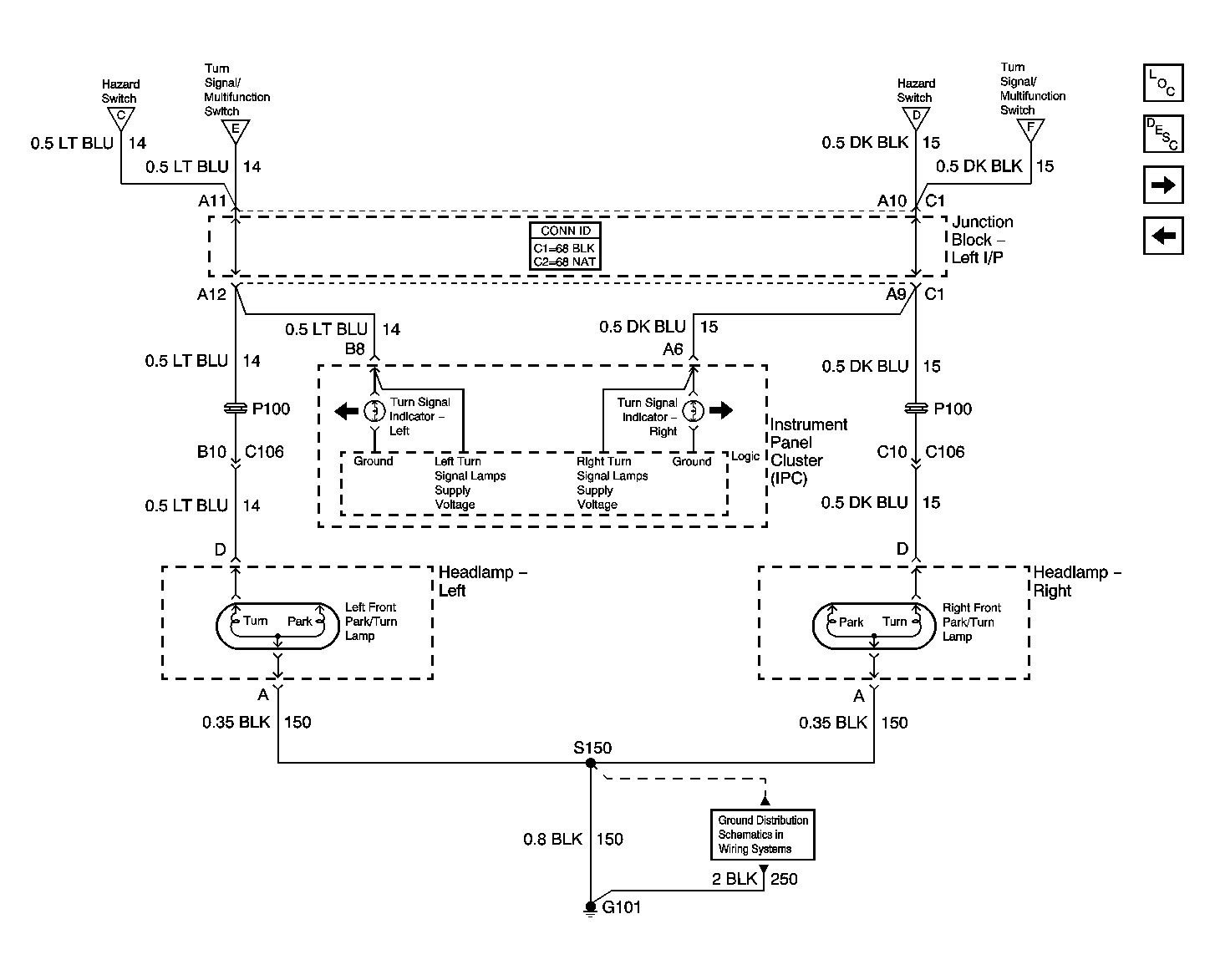

Fig 4: Front Park & Turn/Hazard Lamps Schematic (Impala)

Courtesy of GENERAL MOTORS CORP.

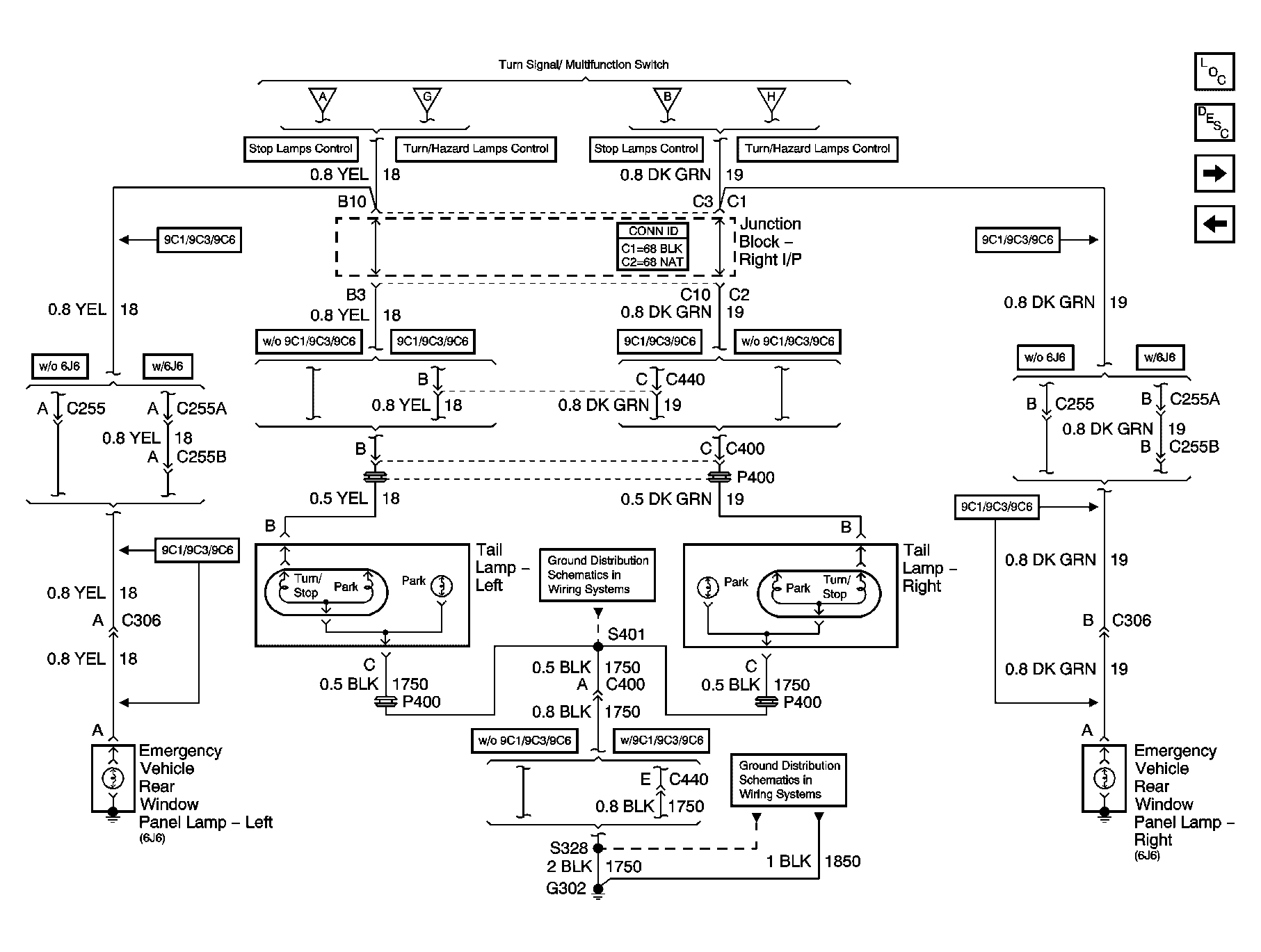

Fig 5: Rear Turn/Stop/Hazard Lamps Schematic (Impala w/o 6J7)

Courtesy of GENERAL MOTORS CORP.

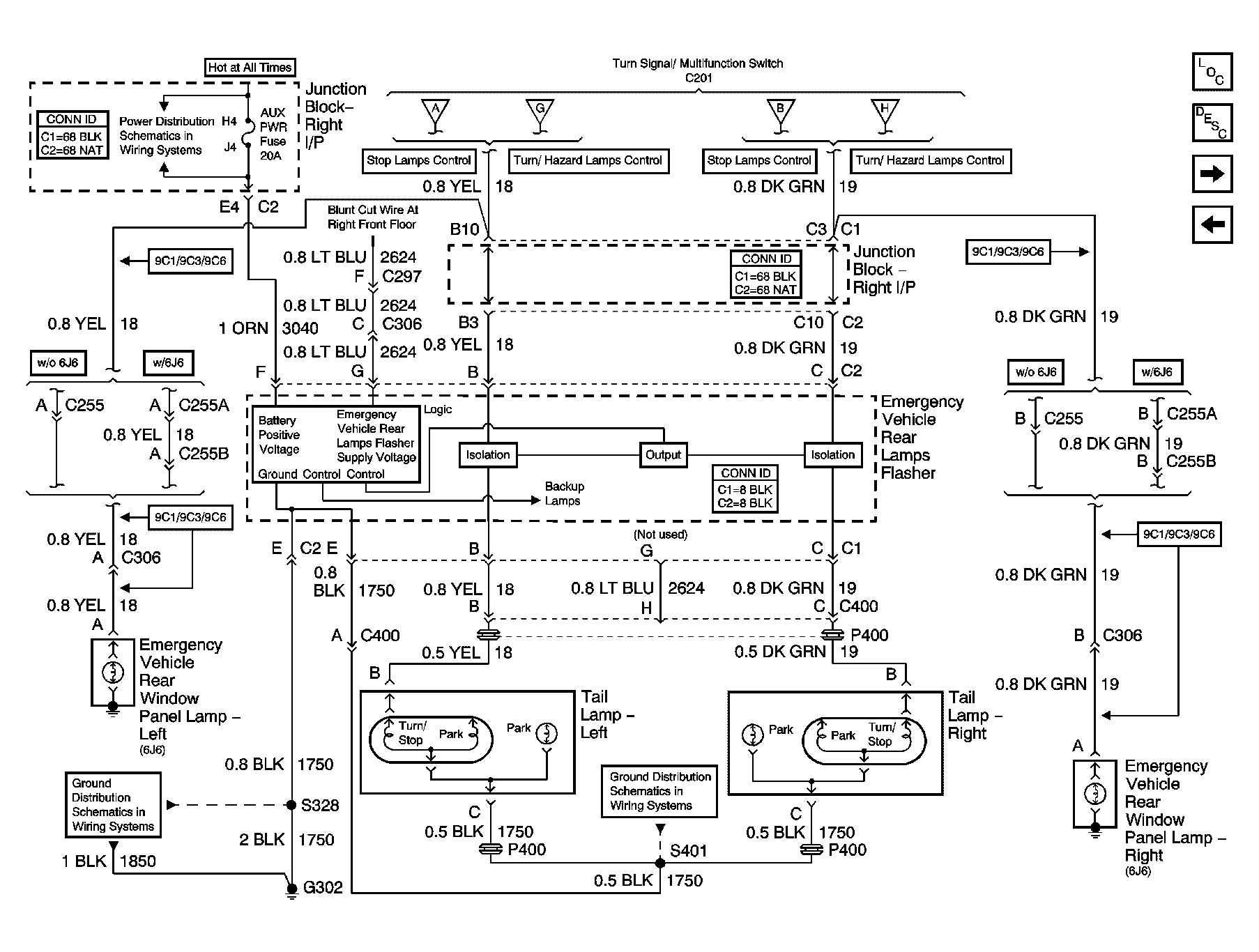

Fig 6: Rear Turn/Stop/Hazard Lamps Schematic (Impala w/6J7)

Courtesy of GENERAL MOTORS CORP.

Fig 7: Park Lamps Schematic (Monte Carlo)

Courtesy of GENERAL MOTORS CORP.

Fig 8: Stop Lamps Schematic (Monte Carlo)

Courtesy of GENERAL MOTORS CORP.

Fig 9: Turn/Hazard Lamps Control Schematic (Monte Carlo)

Courtesy of GENERAL MOTORS CORP.

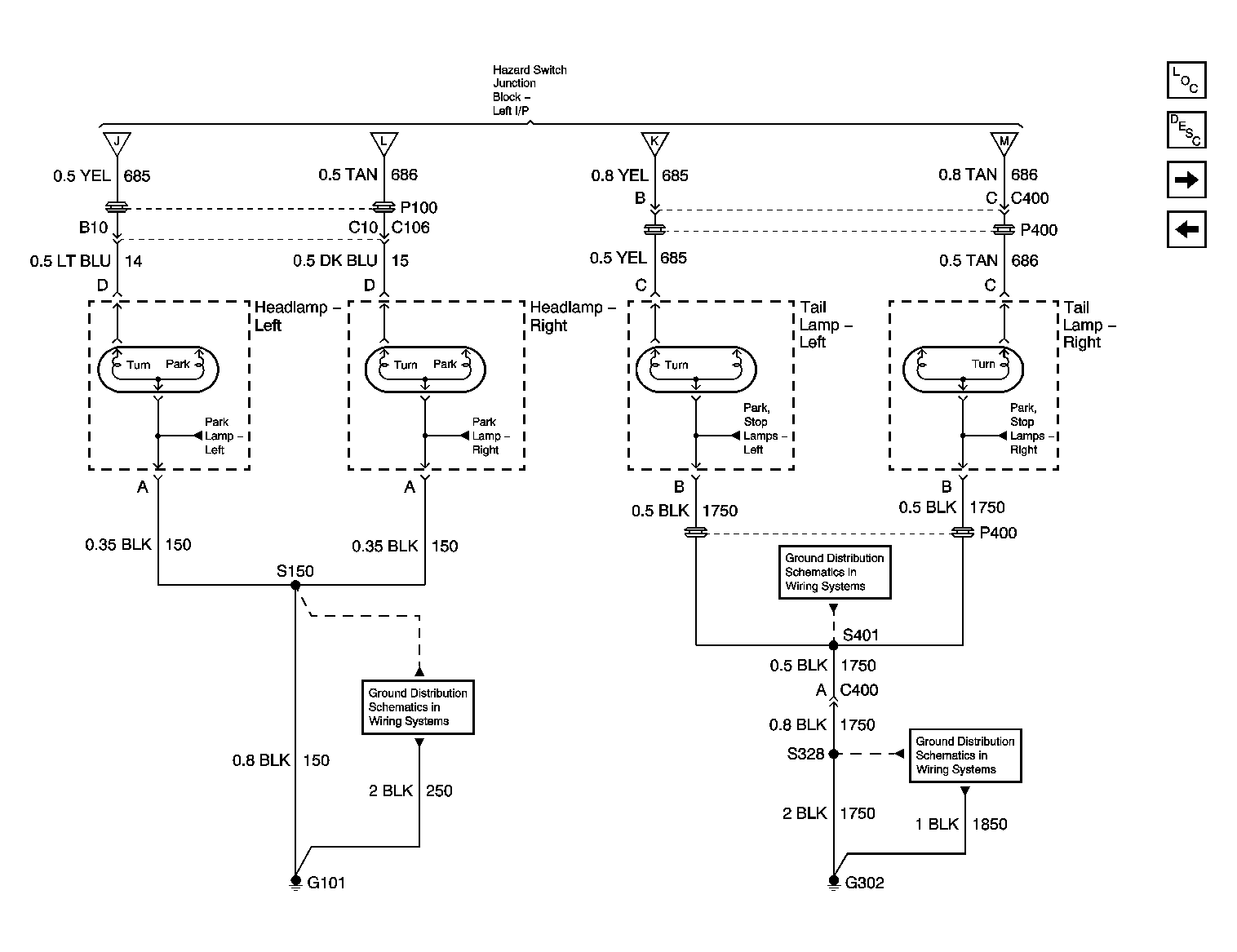

Fig 10: Turn Lamps Schematic (Monte Carlo)

Courtesy of GENERAL MOTORS CORP.

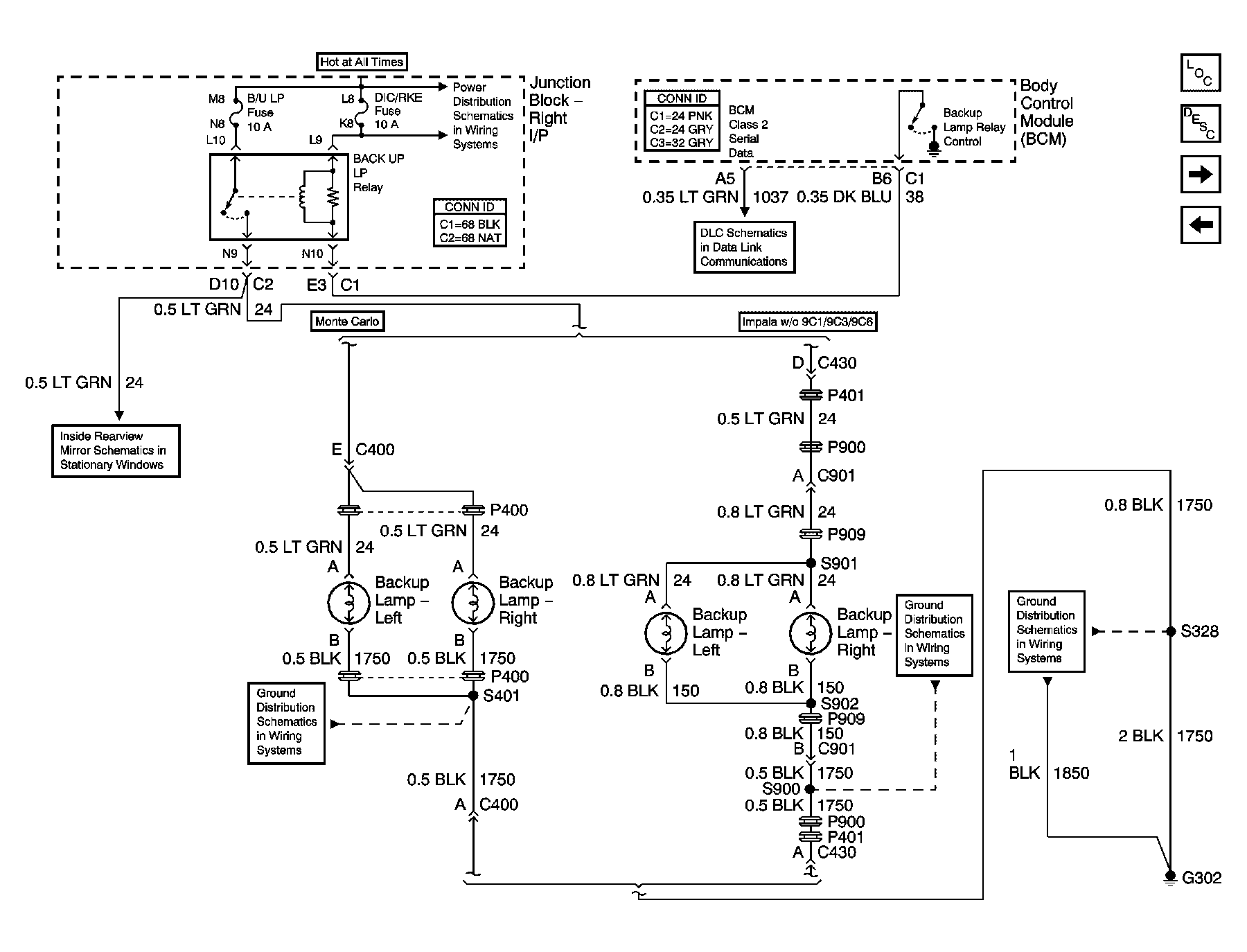

Fig 11: Backup Lamps Schematic (w/o 9C1/9C3/9C6)

Courtesy of GENERAL MOTORS CORP.

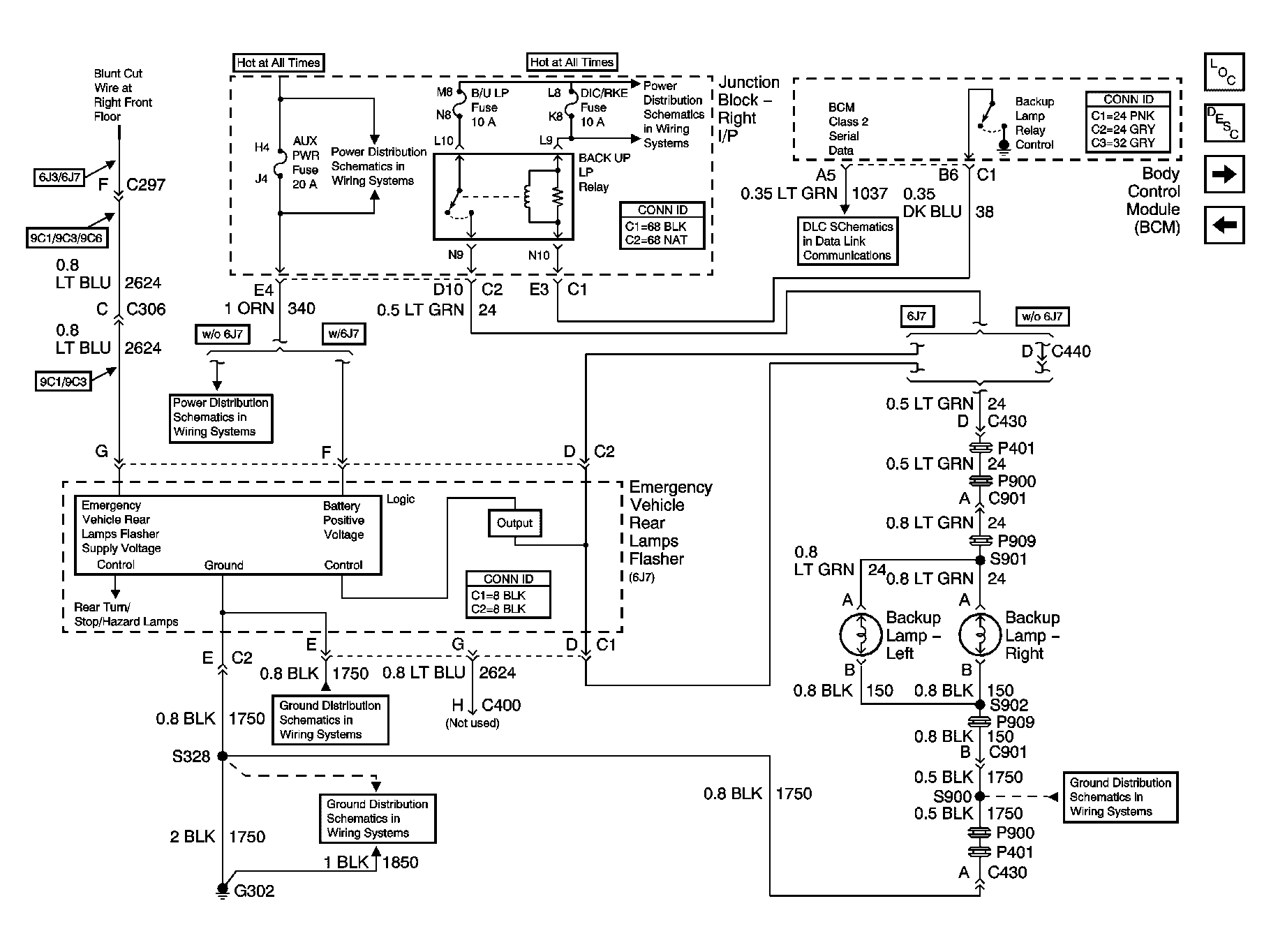

Fig 12: Backup Lamps Schematic (9C1/9C3/9C6)

Courtesy of GENERAL MOTORS CORP.

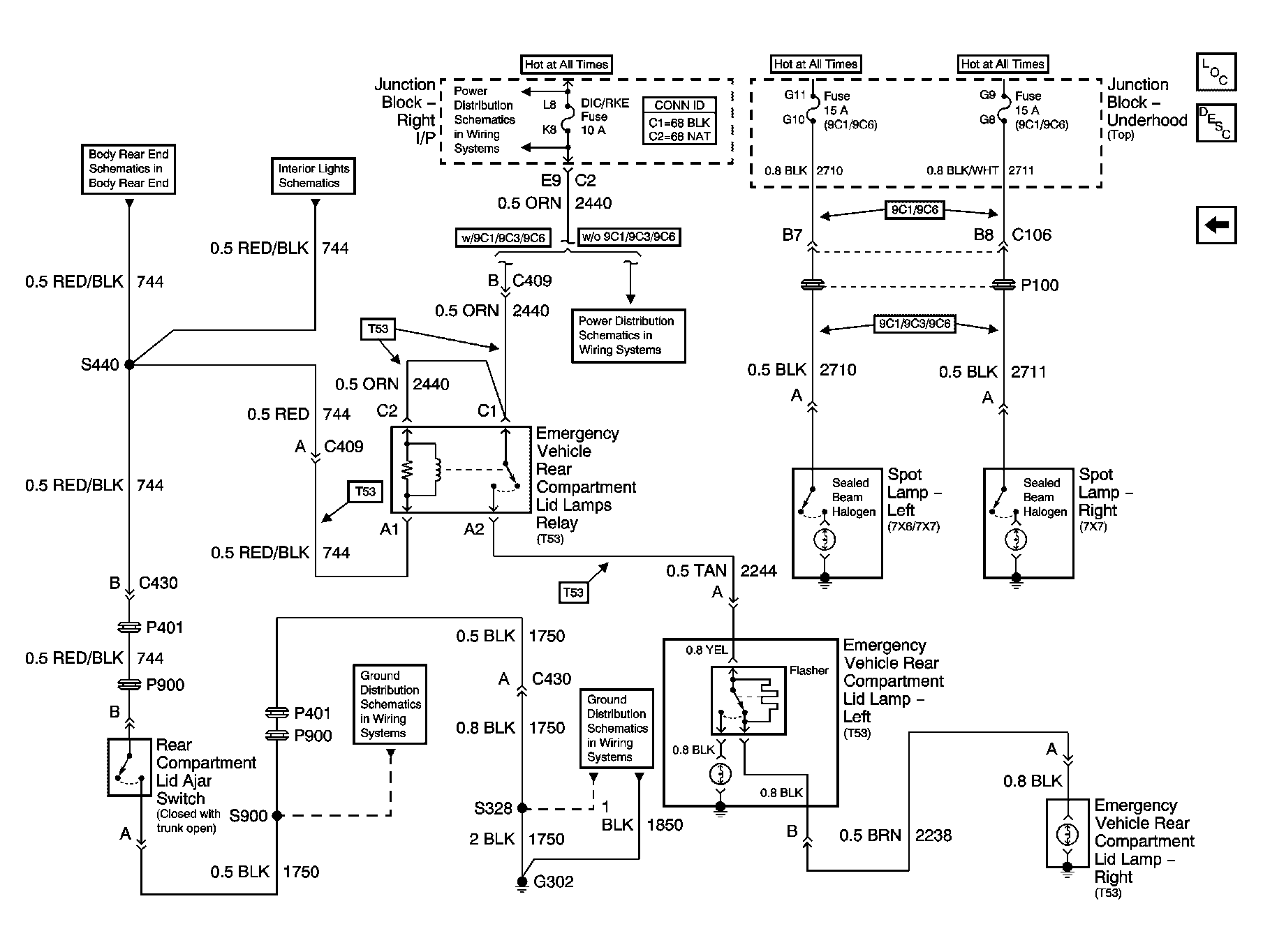

Fig 13: Emergency Vehicle Rear Compartment Lid Lamps & Spot Lamps Schematic

Courtesy of GENERAL MOTORS CORP.
