Installation Procedure

    Fig 1: Installing I/P Lower Trim Panel & Screws (Impala)
    GM519552Courtesy of GENERAL MOTORS CORP.
  1. Position the I/P lower trim panel within the vehicle.
  2. Reposition the I/P wiring harness.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the screws which secure the I/P lower trim panel to the cross vehicle beam in the order indicated in the graphic.

    Tighten:  Tighten the screws to 10 N.m (89 lb in).

  4. Install the I/P compartment lamp switch. Refer to Instrument Panel (I/P) Compartment Lamp Replacement in Lighting Systems.
  5. Install the SIR inflator module. Refer to Inflatable Restraint Instrument Panel Module Replacement in SIR.
  6. Install the I/P cluster. Refer to Instrument Panel Cluster (IPC) Replacement .
    7. Fig 2: Installing I/P Lower Trim Panel To Passenger Knee Bolster Screws (Impala)
    GM519561Courtesy of GENERAL MOTORS CORP.
  7. Install the screws which secure the I/P lower trim panel to the I/P compartment bracket.

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

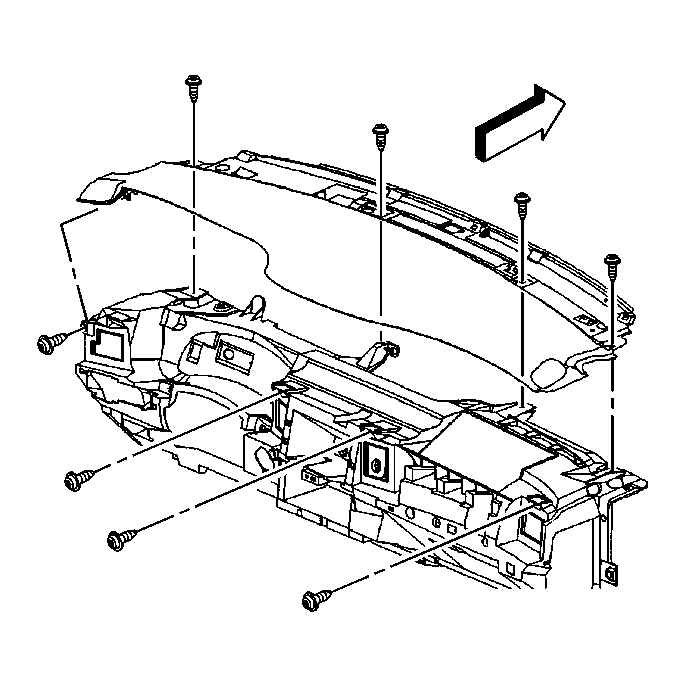

    8. Fig 3: I/P Upper Trim Pad (Impala)
    GM454282Courtesy of GENERAL MOTORS CORP.
  8. Position the I/P upper trim pad to the I/P. Install the retainers to the rear of the windshield.
  9. Install the I/P upper trim pad screws.

    Tighten:

    • Tighten the horizontal screws to 2 N.m (18 lb in).
    • Tighten the vertical screws to 10 N.m (89 lb in).

    10. Fig 4: Daytime Running Lamps Sensor
    GM519305Courtesy of GENERAL MOTORS CORP.
  10. Install the remote keyless entry (RKE) module.
  11. Connect the RKE module electrical connector.
  12. Position the I/P upper trim panel to the upper I/P. Connect the daytime running lamps (DRL) sensor to the I/P upper trim panel. Verify that the DRL sensor wiring harness is not pinched when you install the panel.
  13. Starting at the left side, install the trim panel retainers to the upper I/P. Continue working to the right until you have installed all of the retainers.
  14. Install the garnish moldings to the right and to the left windshield pillar. Refer to Garnish Molding Replacement - Windshield Pillar (Impala) or Garnish Molding Replacement - Windshield Pillar (Monte Carlo) .
    15. Fig 5: Data Link Connector
    GM658375Courtesy of GENERAL MOTORS CORP.
  15. Install the data link connector. Install the screws that secure the data link connector.

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

    16. Fig 6: I/P Cluster Trim Plate (Impala)
    GM578987Courtesy of GENERAL MOTORS CORP.
  16. Install the hood latch release handle. Refer to Hood Latch Release Handle Replacement in Body Front End.
  17. Install the headlamp switch. Refer to Headlamp Switch Replacement in Lighting Systems.
  18. Install the HVAC control assembly. Refer to HVAC Control Assembly Replacement in HVAC Systems-Manual.
  19. Install the radio. Refer to Radio Replacement in Entertainment.
  20. Install the ignition switch. Refer to Ignition Switch Replacement .
  21. Install the I/P cluster trim plate to the I/P lower trim panel.
  22. Connect the electrical connectors to the hazard switch and to the traction control switch, if equipped.
  23. Carefully press the I/P cluster trim plate into the I/P lower trim panel. Fully engage all of the retainers.
  24. Install the I/P cluster trip plate screws.

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

    25. Fig 7: Ignition Lock Cylinder Bezel
    GM601131Courtesy of GENERAL MOTORS CORP.
  25. Install the ignition switch cylinder bezel.
  26. Position the transaxle shift control indicator to Park.
  27. Release the parking brake.
  28. Install the multifunction switch. Refer to Multifunction, Turn Signal Switch Replacement in Steering Wheel and Column.
  29. Install the steering column shrouds.
  30. Install the steering wheel. Refer to Steering Wheel Replacement in Steering Wheel and Column.
  31. Install the steering wheel SIR inflator module. Refer to Inflatable Restraint Steering Wheel Module Replacement (Impala) or Inflatable Restraint Steering Wheel Module Replacement (Monte Carlo) in SIR.
  32. Install the floor console, if equipped. Refer to Console Replacement - Front Floor (Impala)  or Console Replacement - Front Floor (Monte Carlo) .
    33. Fig 8: I/P Compartment & Screws
    GM519555Courtesy of GENERAL MOTORS CORP.
  33. Align the I/P compartment to the opening.
  34. Connect the I/P damper cable to the I/P compartment tab, if equipped.
  35. Install the I/P compartment screws.

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

  36. Close the I/P compartment. Verify that the compartment is properly aligned. Adjust as required.

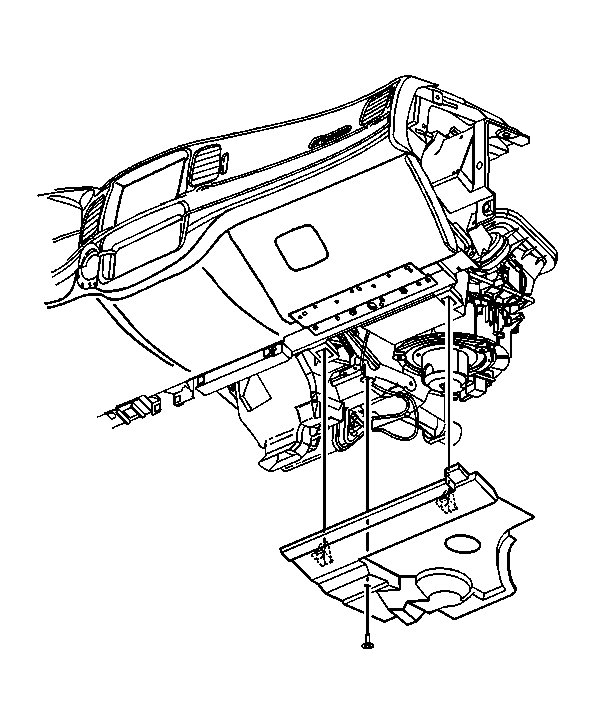

    37. Fig 9: Installing Right I/P Insulator (Impala)
    GM519527Courtesy of GENERAL MOTORS CORP.
  37. Position the right I/P insulator to the vehicle. Insert the retainer into the insulator.
  38. Rotate the courtesy lamp clockwise in order to connect the lamp to the insulator.
  39. Align and install the right I/P insulator with the push-in retainer.
  40. Lift upward on the insulator. Install the insulator tabs to the I/P lower trim panel retainers.
    41. Fig 10: I/P Fuse Block Access Hole Covers (Impala)
    GM519536Courtesy of GENERAL MOTORS CORP.
  41. Install the access opening cover to the right I/P fuse block.

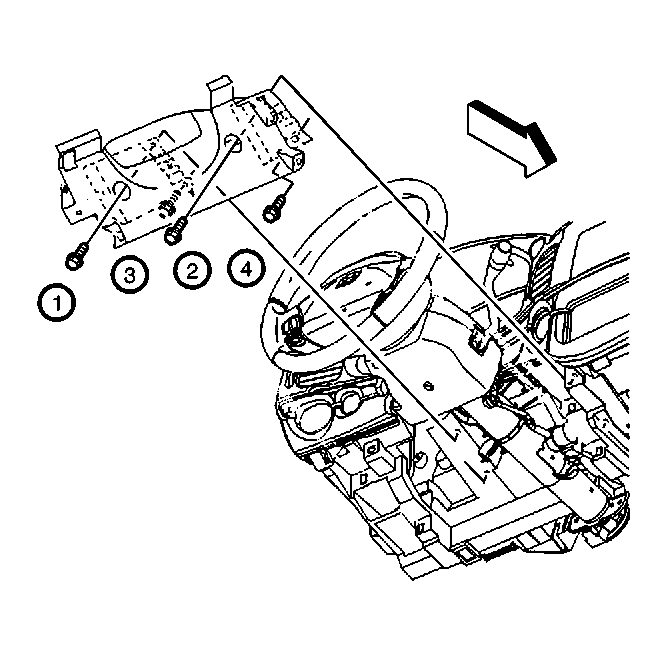

    42. Fig 11: Installing I/P Driver Knee Bolster Bracket Screws
    GM519543Courtesy of GENERAL MOTORS CORP.
  42. Align the driver knee bolster bracket to the I/P. Install the bolts to the knee bolster at the instrument carrier in the sequence shown.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

  43. Install the knee bolster bolts to the I/P lower trim panel.

    Tighten:  Tighten the bolts to 2 N.m (18 lb in).

  44. Install the 4 I/P driver knee bolster bracket screws.

    Tighten:  Tighten the screws to 10 N.m (89 lb in).

    45. Fig 12: Steering Column Filler Panel
    GM519517Courtesy of GENERAL MOTORS CORP.
  45. Position the filler panel for the steering column opening to the vehicle. Install the rear compartment release switch.
  46. Connect the electrical connector to the rear compartment release switch
  47. Align the filler panel to the I/P lower trim panel. Install the filler panel retainers to the I/P lower trim panel.
  48. Install the filler panel bolts.

    Tighten:  Tighten the bolts to 2 N.m (18 lb in).

    49. Fig 13: Left I/P Insulator Retainers
    GM519316Courtesy of GENERAL MOTORS CORP.
  49. Position the left I/P insulator to the vehicle. Install the insulator to the stud at the accelerator pedal.
  50. Rotate the courtesy lamp clockwise in order to connect the courtesy lamp to the left I/P insulator.
  51. Install the left I/P insulator tabs to the lower I/P trim pad retainers.
  52. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 and SIR Disabling and Enabling Zone 5 in SIR.
  53. Connect the battery ground cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.
