Instrument Panel, Gages, and Console Component Views

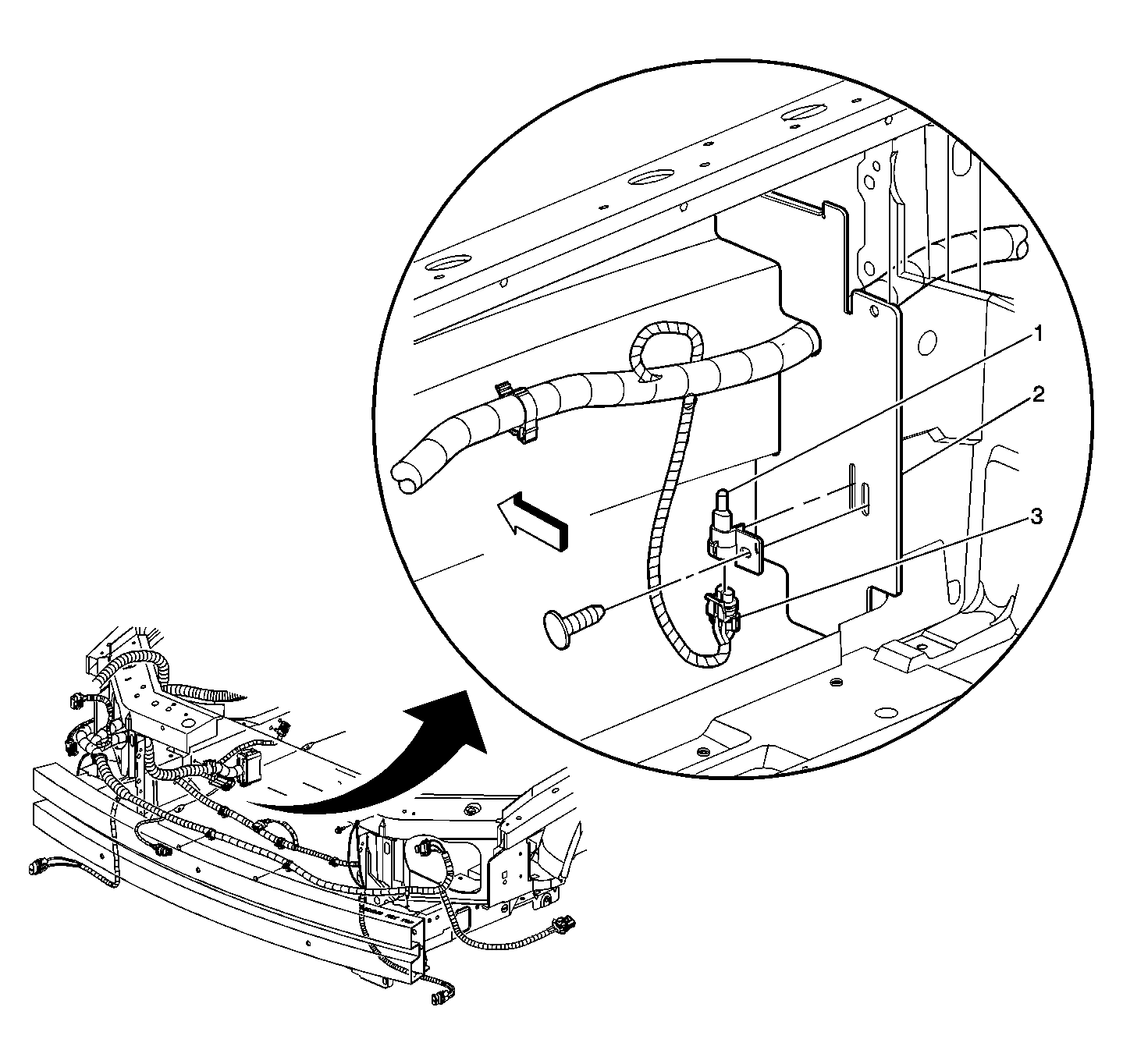

Fig 1: Front Of Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Air Temperature Sensor
2	Air Baffle
3	Ambient Air Temperature Sensor Connector

Fig 2: Front Of Engine Component View (L36/L67)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mass Air Flow (MAF) Sensor
2	Idle Air Control (IAC) Valve
3	Throttle Position (TP) Sensor
4	Fuel Pressure Test Connector
5	Engine Coolant Temperature (ECT) Sensor
6	Fuel Injector 5
7	Evaporative Emission (EVAP) Canister Purge Solenoid
8	Engine Oil Level Switch
9	Crankshaft Position (CKP) Sensor
10	Camshaft Position (CMP) Sensor, Behind Water Pump Pulley
11	Ignition Control Module (ICM)
12	Positive Crankcase Ventilation (PCV) Valve, Under MAP Sensor
13	Manifold Absolute Pressure (MAP) Sensor
14	C110
15	Fuel Pressure Regulator

Fig 3: Lower Right Rear Of Engine Component View (L36/L67)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C125
2	Engine Oil Pressure (EOP) Switch
3	Vehicle Speed Sensor (VSS)
4	C125

Fig 4: Lower Front Of Engine Component View (LA1)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Crankshaft Position (CKP) Sensor A Connector and Bracket
2	Knock Sensor (KS) Connector
3	Engine Oil Pressure (EOP) Switch Connector
4	Fusible Links (Starter)
5	A/C Compressor Clutch Diode

Fig 5: Rear Of Engine Component View (LA1)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Oil Level Switch
2	Vehicle Speed Sensor (VSS)
3	Crankshaft Position (CKP) Sensor B

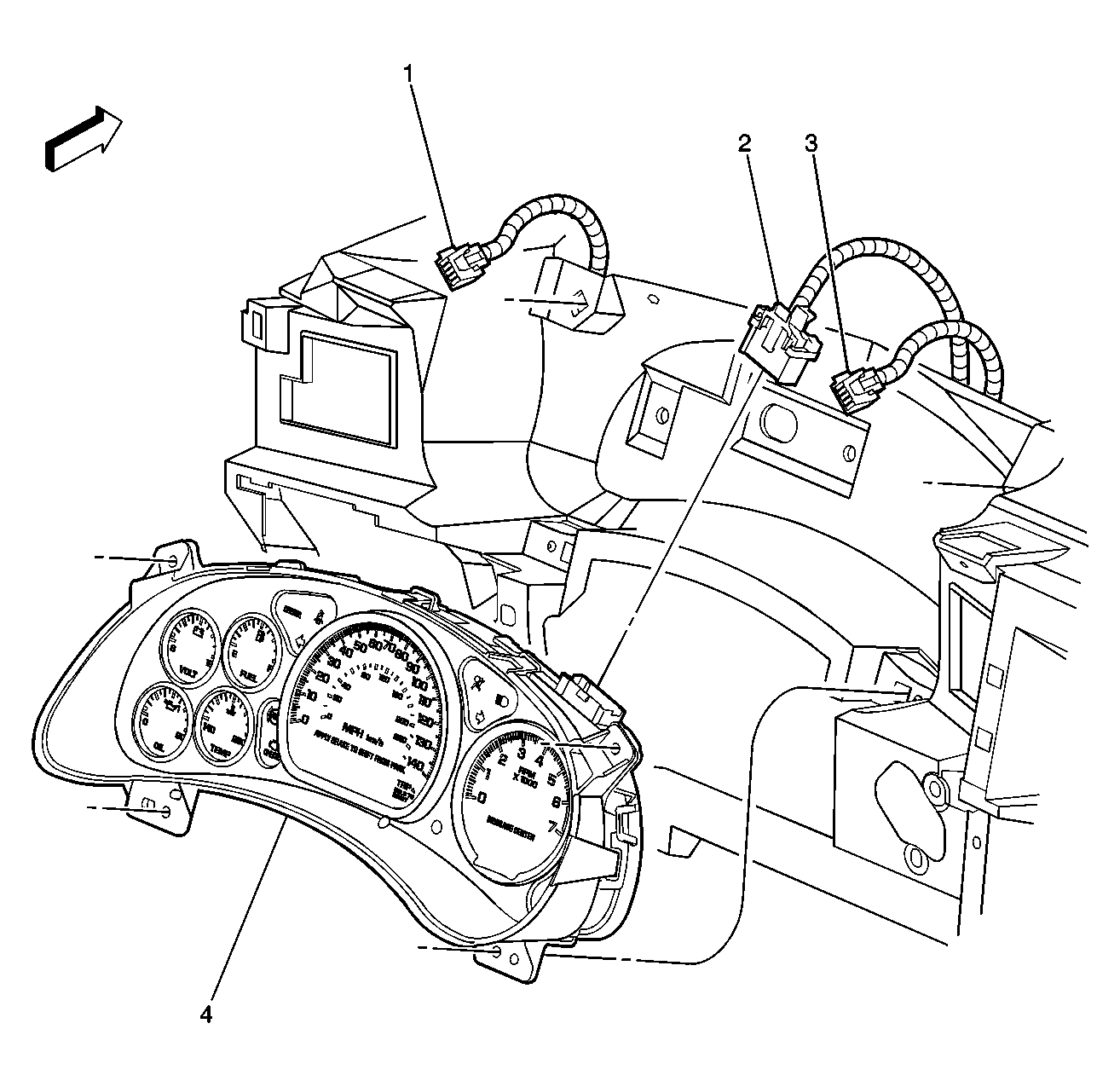

Fig 6: Left Side Of Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Traction Control Switch (Impala) Connector
2	Instrument Panel Cluster (IPC) Connector
3	Hazard Switch Connector
4	Instrument Panel Cluster (IPC)-Typical

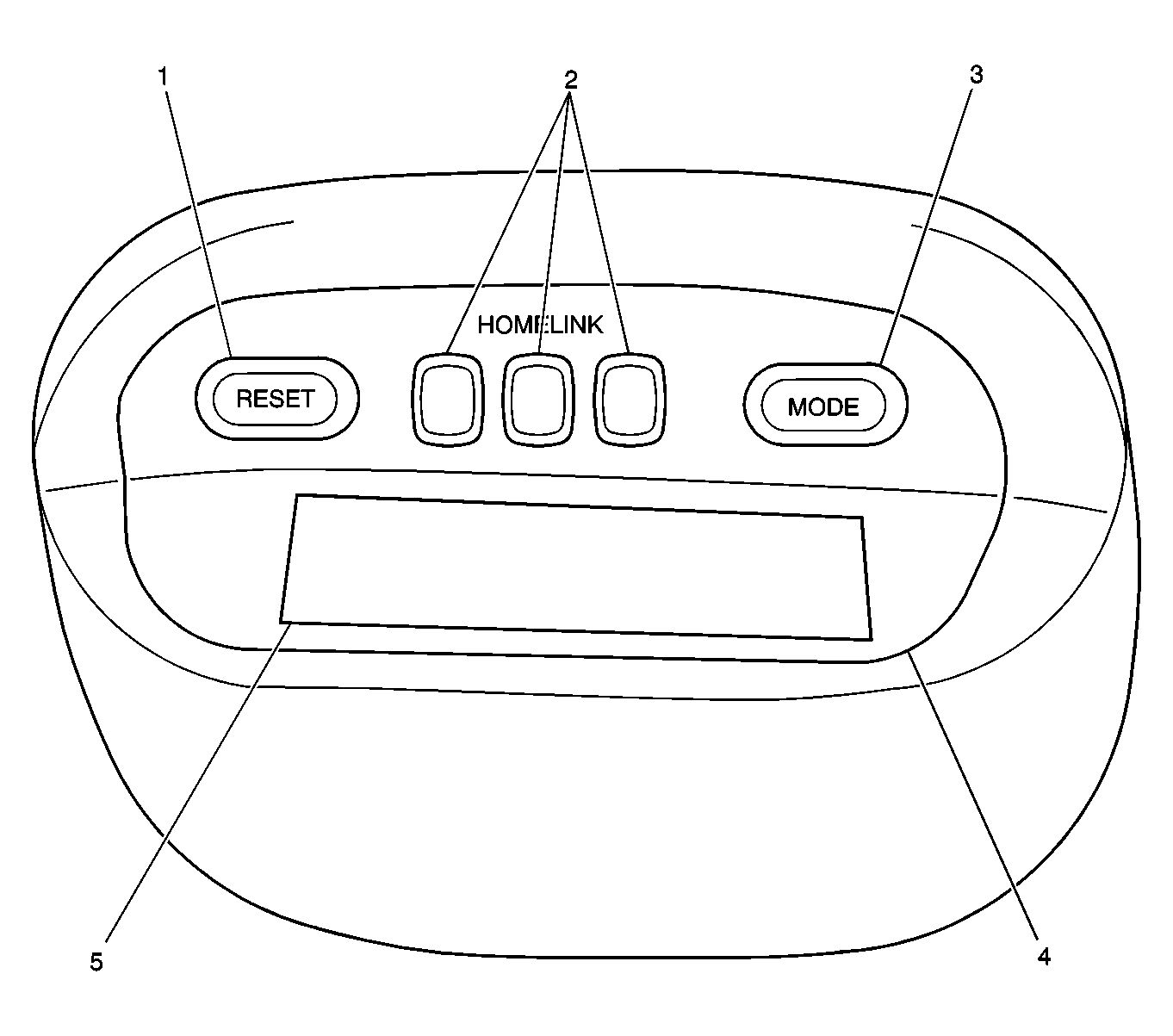

Fig 7: Driver Information Center (DIC) Component View

Courtesy of GENERAL MOTORS CORP.

Fig 8: Above Driver Information Center (DIC) Component View (CF5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Remote Compass Sensor
2	Roof Console

Fig 9: Fuel Pump & Sender Assembly Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Line Quick Connector
2	Fuel Pump
3	Base Plate
4	Fuel Strainer
5	Fuel Level Sensor
6	Springs
7	Fuel Tank Pressure (FTP) Sensor
