Instrument Cluster Schematics (Power, Ground and Serial Data)

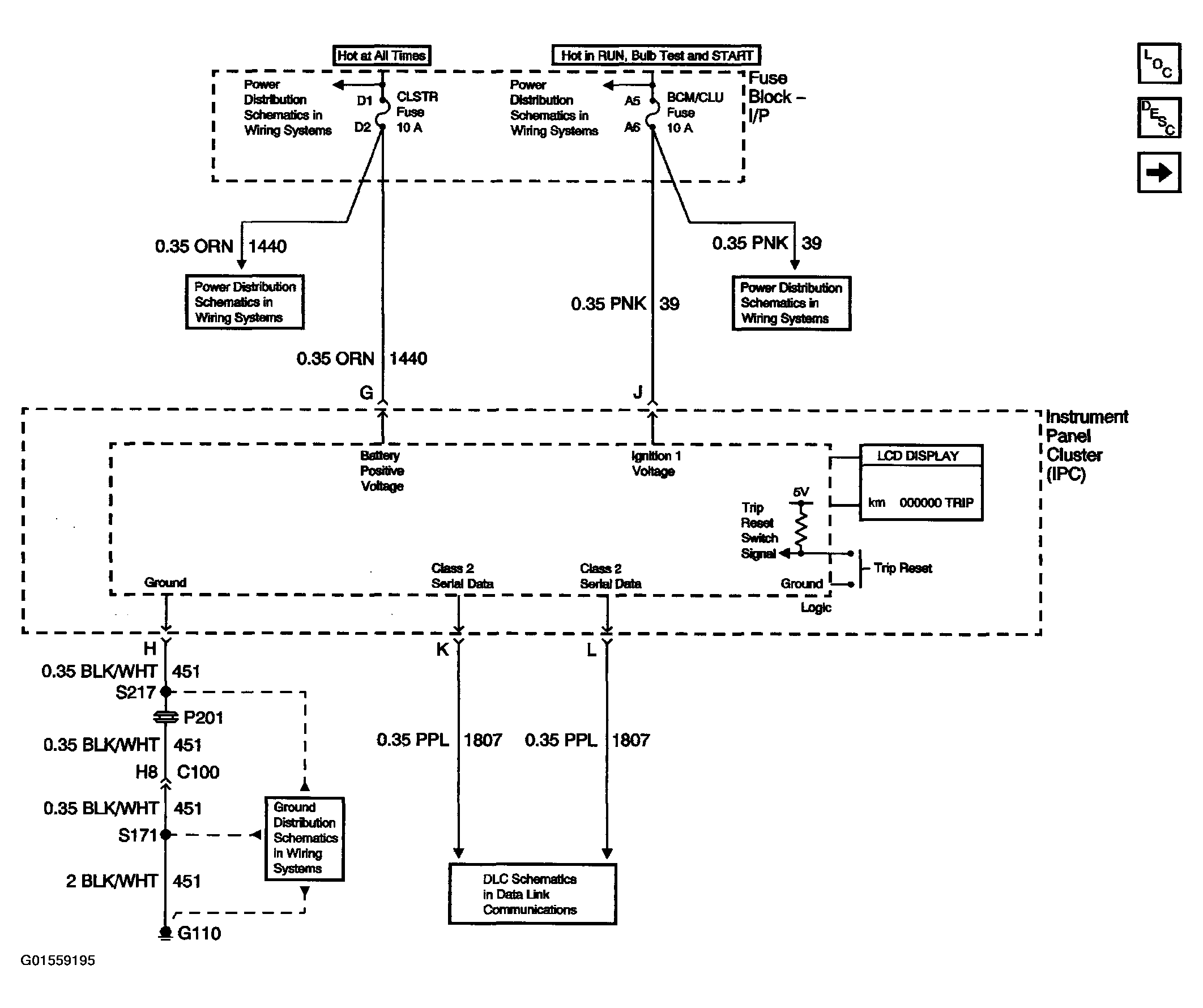

Fig 1: Instrument Cluster Schematics (Power, Ground And Serial Data)
G01559195Courtesy of GENERAL MOTORS CORP.

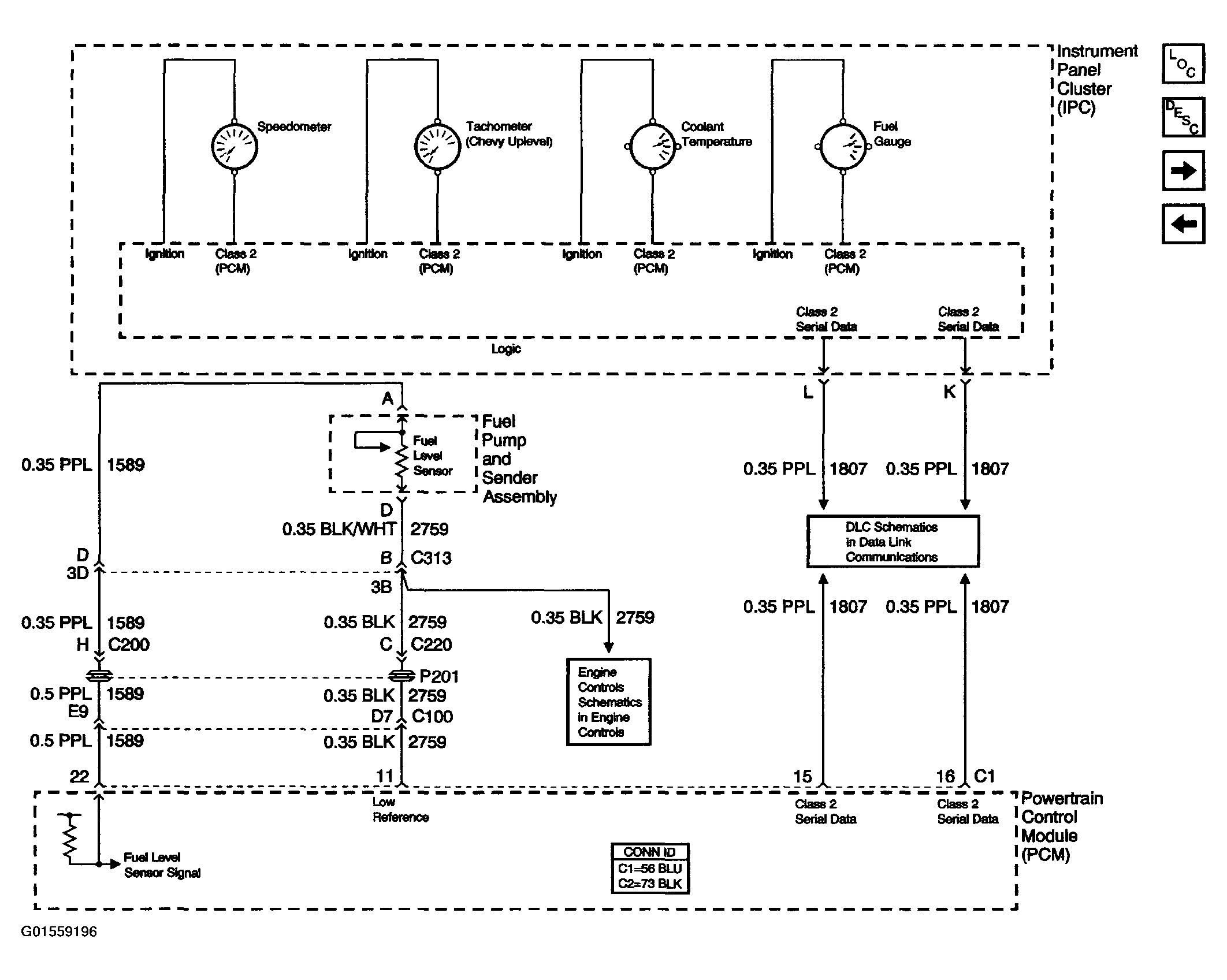

Fig 2: Instrument Cluster Schematics (Gages)
G01559196Courtesy of GENERAL MOTORS CORP.

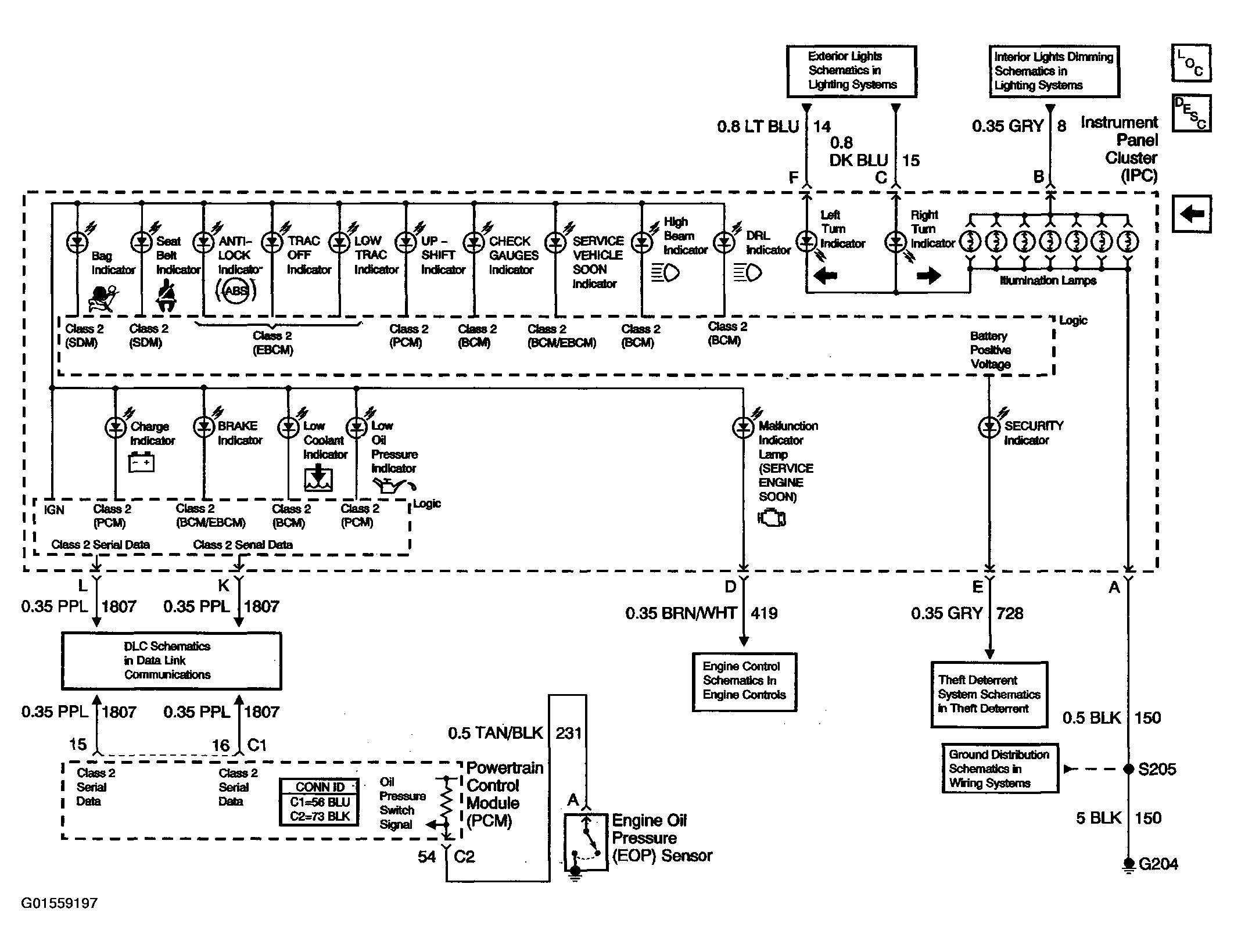

Fig 3: Instrument Cluster Schematics (Indicator Lights)
G01559197Courtesy of GENERAL MOTORS CORP.
