Installation Procedure

  1. Align the tabs for the I/P trim plate (3) to the I/P carrier (1).
  2. Push the I/P trim plate (3) into the I/P carrier (1) to engage the retainers.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the I/P accessory trim plate screws (2).

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  4. Close the I/P compartment door.

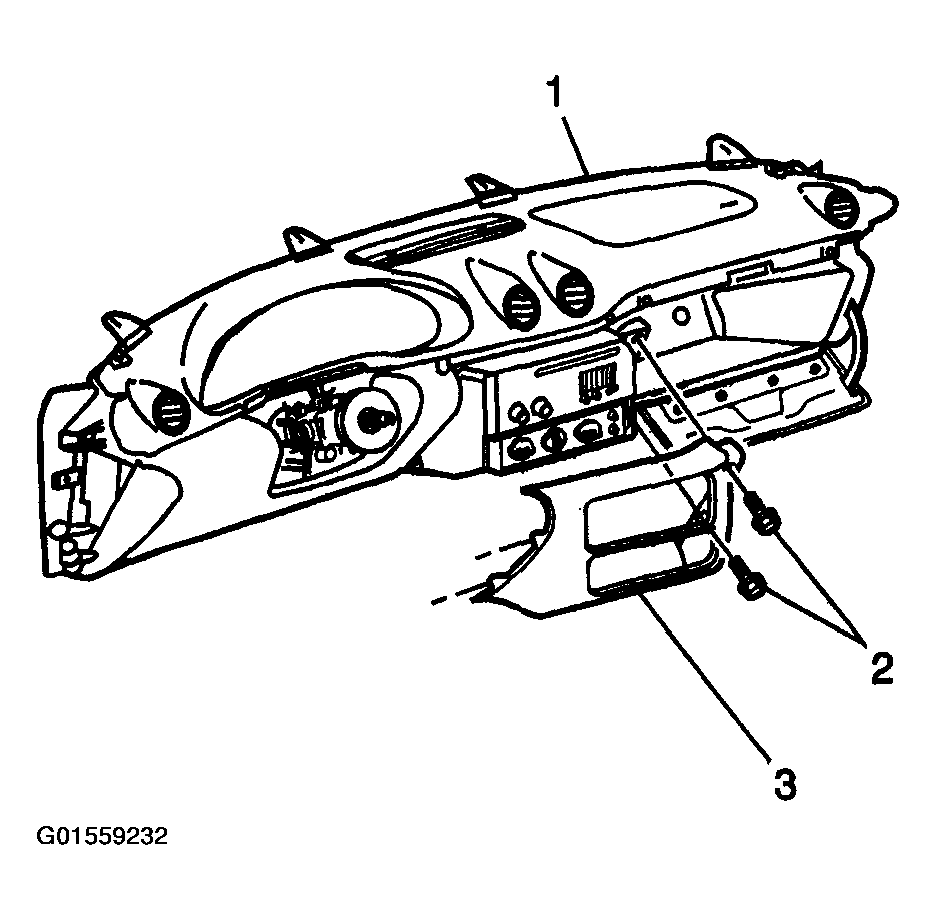

    Fig 1: Installing I/P Trim Plate To I/P Carrier (Pontiac)
    G01559232Courtesy of GENERAL MOTORS CORP.
