Removal Procedure

  1. Remove the power accessory port fuse.
  2. Remove the power accessory port access cover.
  3. Remove the power accessory port housing by placing one side of the "T" portion of J 42059  into the tab window. Angle the other side into the opposite tab window. Pull the power accessory port housing straight out.
    Fig 1: Removing Power Accessory Port Housing
    G01559295Courtesy of GENERAL MOTORS CORP.
  4. Remove J 42059  from the power accessory port housing.
  5. Disconnect the electrical connector from the power accessory port housing.
  6. Using your index finger pull out the power accessory port retainer.

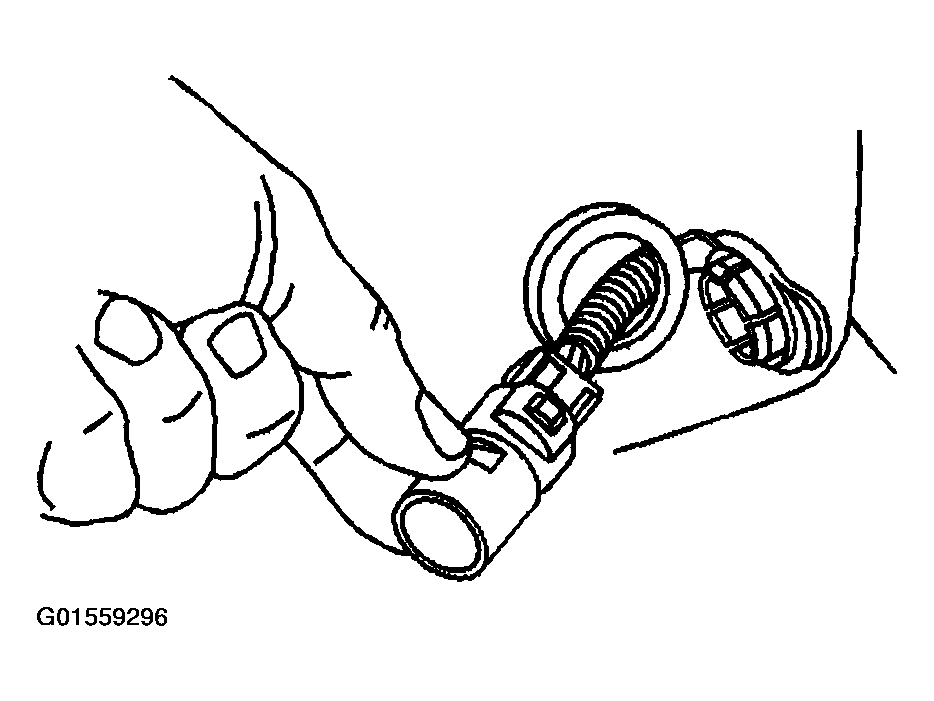

    Fig 2: Pulling Power Accessory Port Retainer
    G01559296Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: If tool fails to remove power accessory port.
  7. If the standard method fails to remove the socket, use the following alternate method:
    1. Insert a small grinding tool (2) with a cutoff wheel into the socket.
    2. Remove the plastic latches (1) in the 3-mm (0.11-in) square windows.
    3. Use J 42059  as directed above to remove the socket.
Fig 3: Inserting Small Grinding Tool With Cutoff Wheel Into Socket
G01559297Courtesy of GENERAL MOTORS CORP.
