Removal Procedure

  1. Remove the instrument panel (I/P) latch. Refer to LATCH REPLACEMENT - INSTRUMENT PANEL (I/P) COMPARTMENT  .
  2. Depress the lock cylinder retaining tab (1) located on the bottom of the lock cylinder (2).

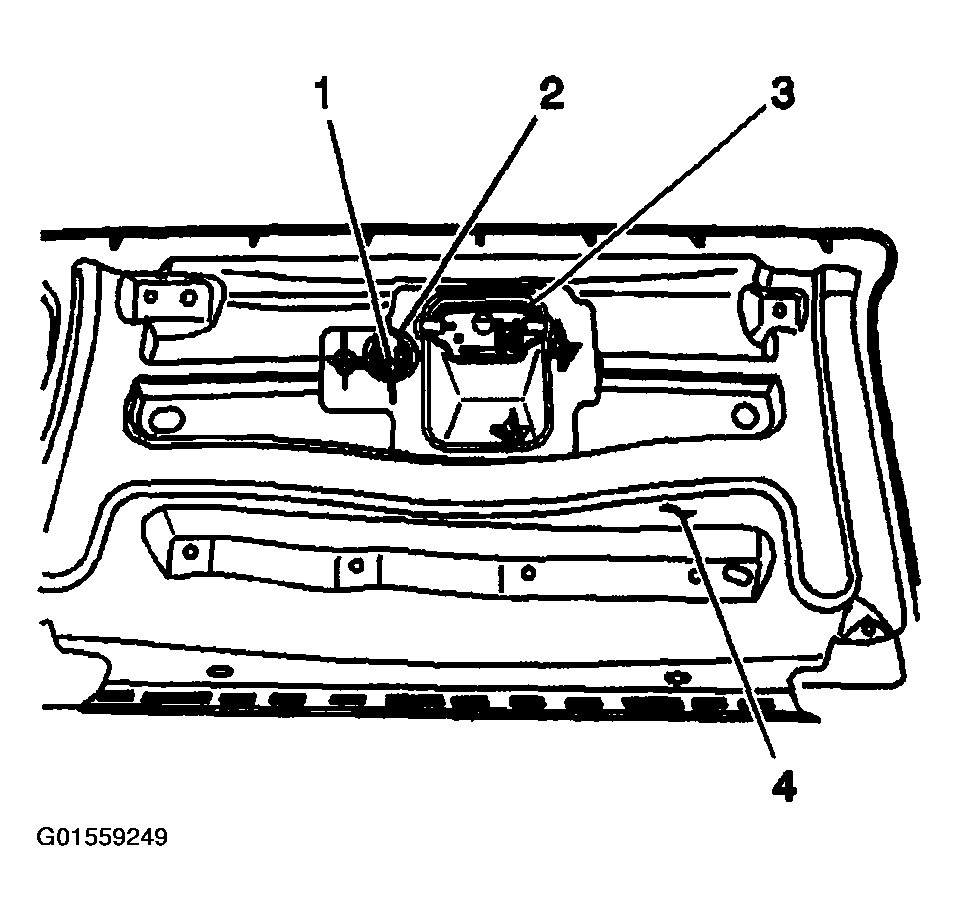

    Fig 1: Locating Lock Cylinder Retaining Tab On Bottom Of Lock Cylinder
    G01559249Courtesy of GENERAL MOTORS CORP.
  3. Press out the lock cylinder from the I/P compartment door.
    Fig 2: Removing Lock Cylinder From I/P Compartment Door
    G01559250Courtesy of GENERAL MOTORS CORP.
