Installation Procedure

  1. Connect the electrical connector (5) to the IP cluster (2).
  2. Position the IP cluster retainer tabs (4) into the IP carrier.
  3. Install the IP cluster (2) to the IP carrier.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the IP cluster screws (1, 3).

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  5. Install the IP trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) (CHEVROLET)  or TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) (PONTIAC)  .

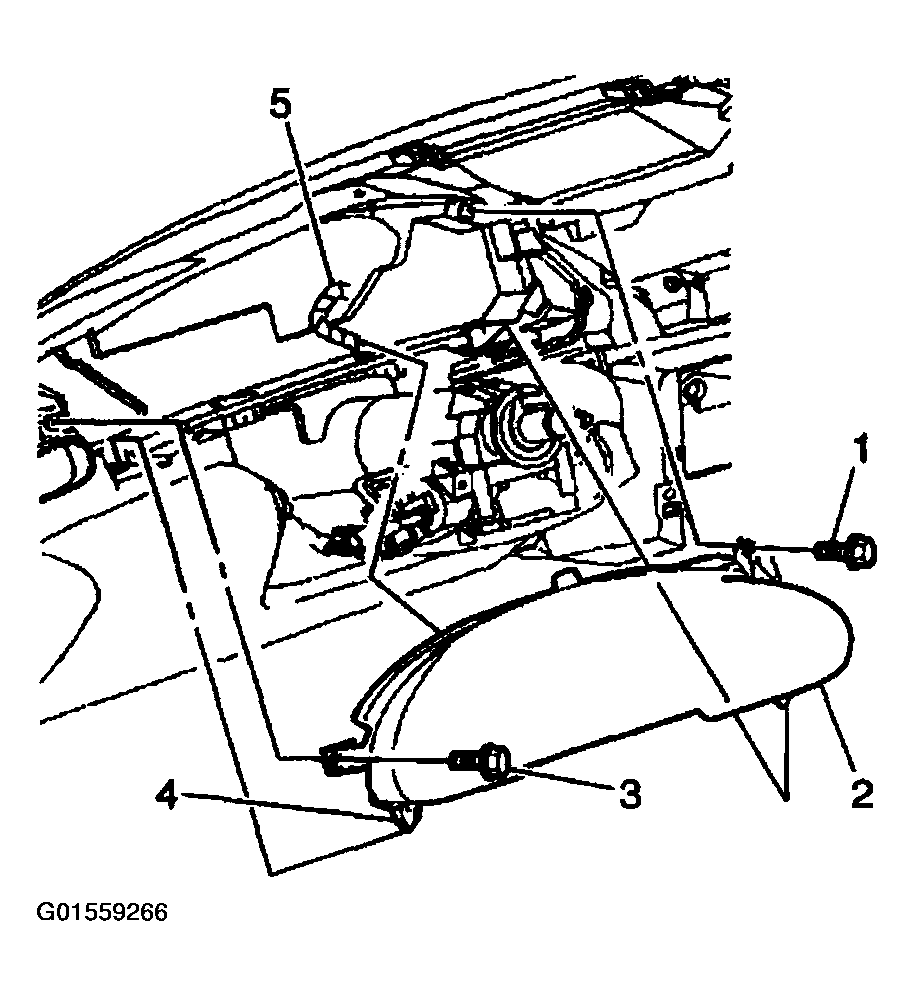

    Fig 1: Installing IP Cluster To IP Carrier (Pontiac)
    G01559266Courtesy of GENERAL MOTORS CORP.
