Removal Procedure

  1. Remove the instrument panel (IP) accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (CHEVROLET)  or TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (PONTIAC)  .
  2. Remove the screws (6) from the top of the IP cluster (5).
  3. Remove the IP cluster (5) pulling rearward.
  4. Disconnect the electrical connector (1) from the IP cluster (5).
  5. Remove the IP cluster (5) from IP (3).

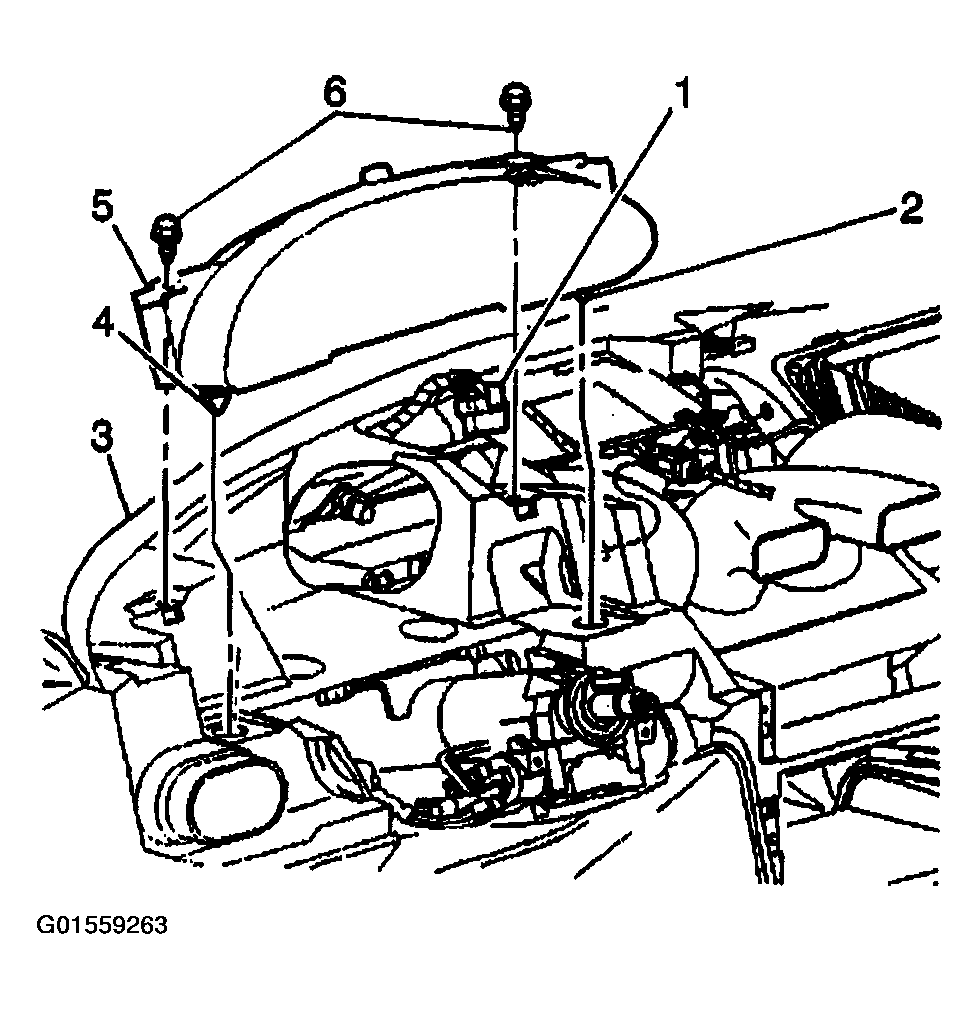

    Fig 1: Removing IP Cluster From IP (Chevrolet)
    G01559263Courtesy of GENERAL MOTORS CORP.
