Installation Procedure

  1. Connect the electrical connector (1) to the IP cluster (5).
  2. Position the IP cluster retainer tabs (4) into the IP (3).
  3. Install the instrument panel cluster (5) to the IP (3).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the IP cluster screws (6).

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  5. Install the instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (CHEVROLET)  or TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (PONTIAC)  .

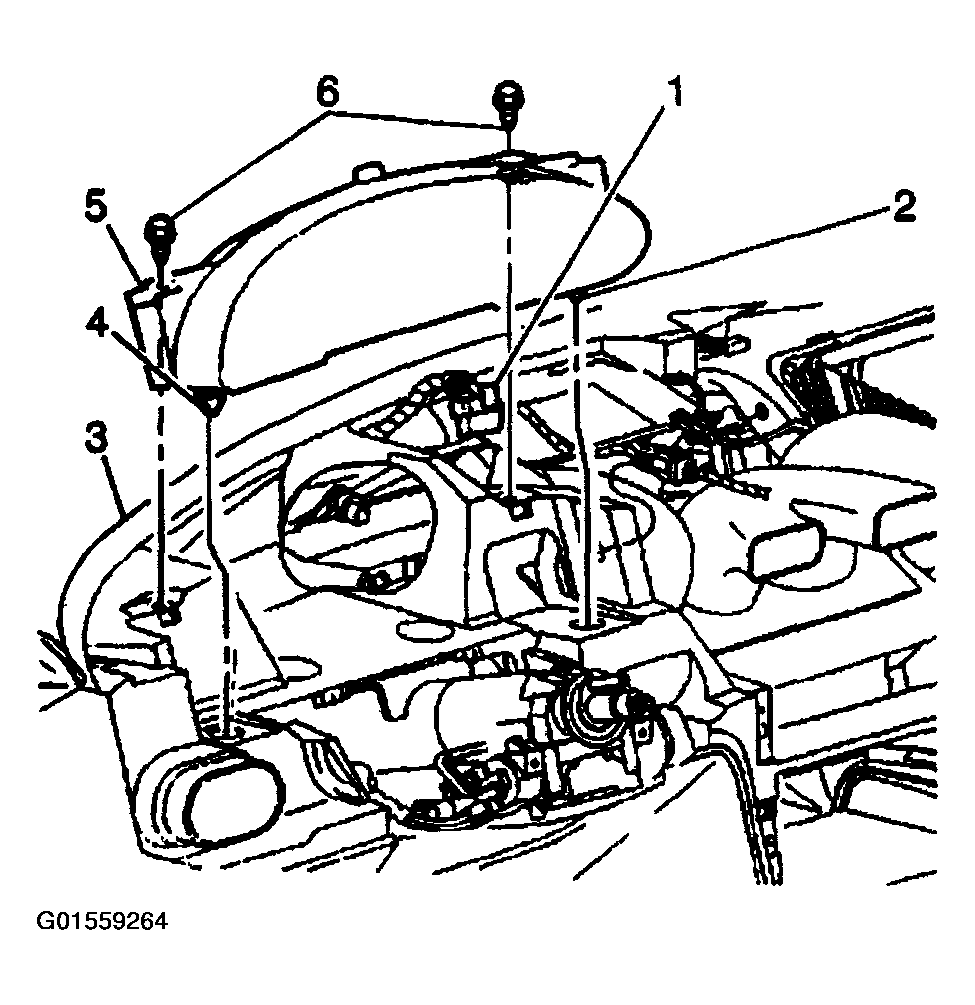

    Fig 1: Installing IP Cluster To IP (Chevrolet)
    G01559264Courtesy of GENERAL MOTORS CORP.
