Installation Procedure

1. Position the outer trim cover (1) to the I/P carrier.
   NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
2. Install the screw (2) to the outer trim cover (1).

Tighten

Tighten the screw to 2 N.m (18 lb in).

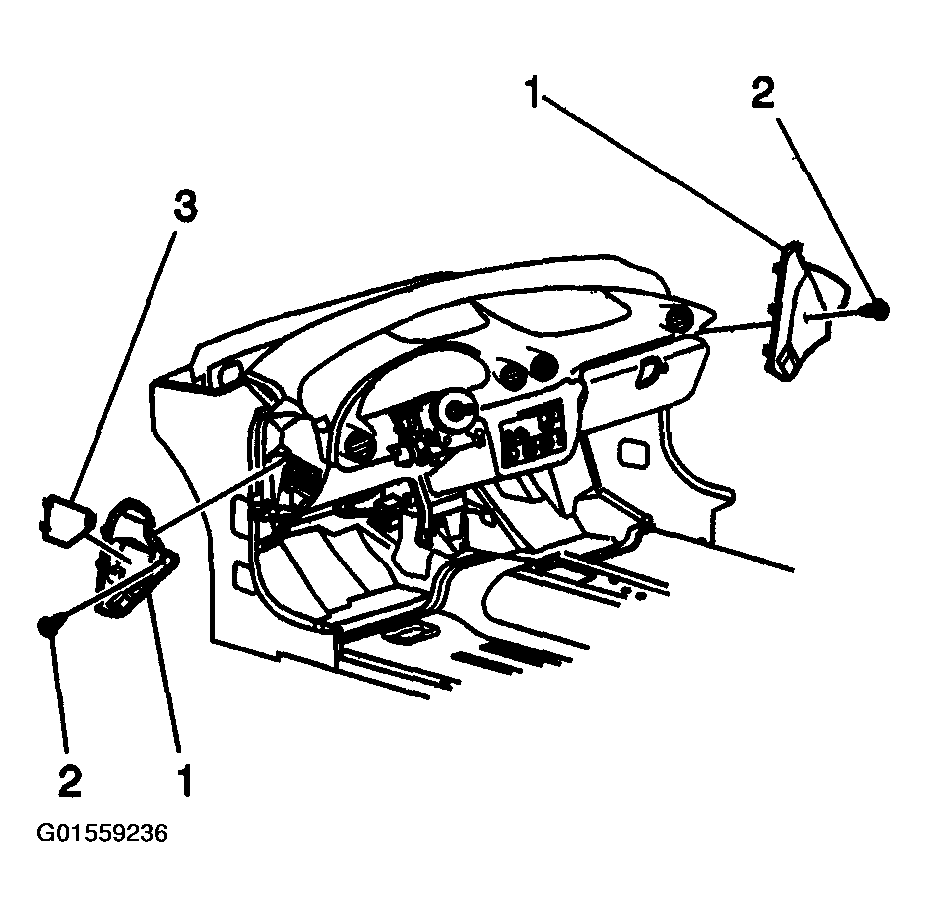

Fig 1: Installing Outer Trim Cover To Instrument Panel (I/P) Carrier (Pontiac)

Courtesy of GENERAL MOTORS CORP.
