Removal Procedure

  1. With a flat-bladed tool, separate the outer trim cover from the instrument panel (I/P).
  2. Pull the outer trim cover (1) rearward from the I/P to disengage the locating tabs.
  3. Remove the outer trim covers from the I/P.

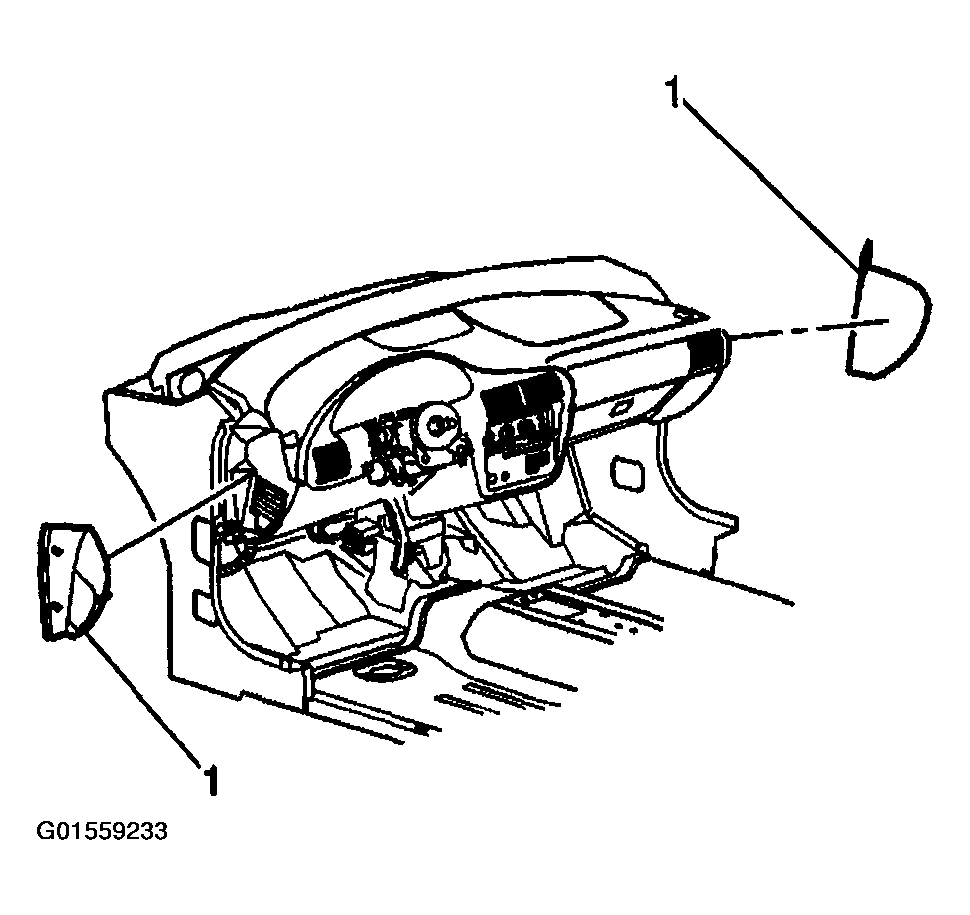

    Fig 1: Removing Outer Trim Covers From I/P (Chevrolet)
    G01559233Courtesy of GENERAL MOTORS CORP.
