Installation Procedure

  1. Align the outer trim cover (1) locating tabs to the opening in the I/P.
  2. Push the outer trim cover locating tabs into the I/P until fully engaged.
  3. Press the outer trim cover into the I/P until fully secured.

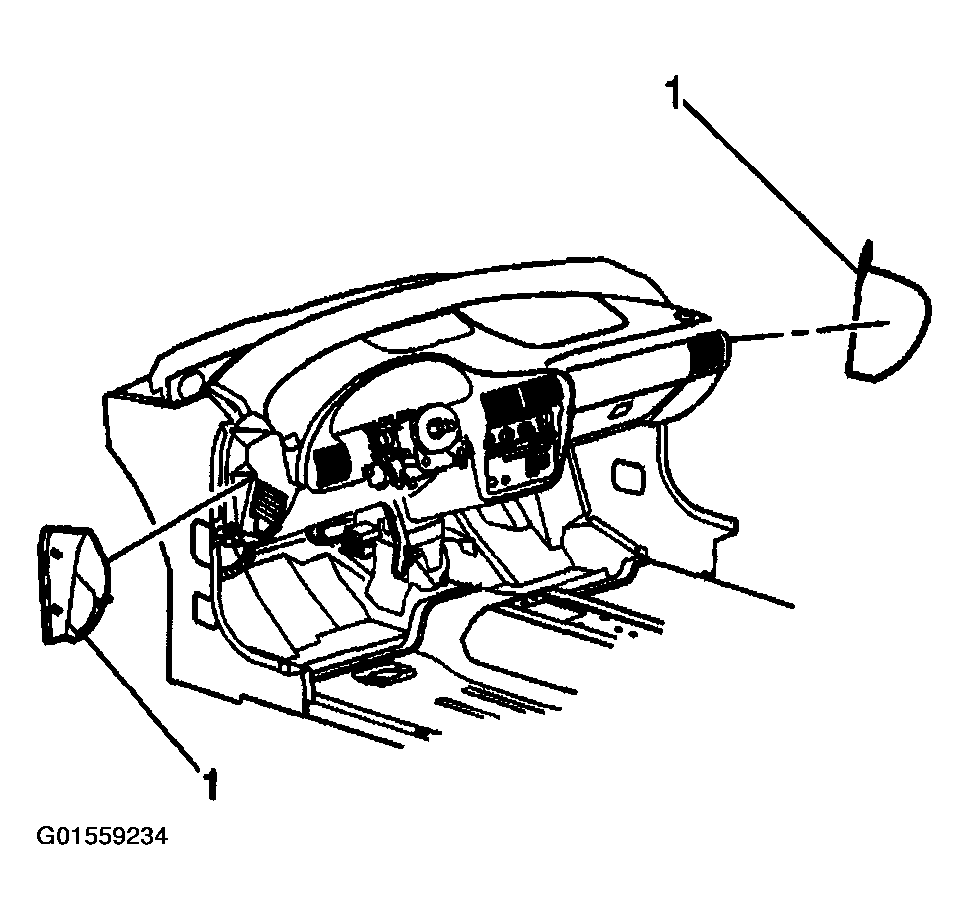

    Fig 1: Installing Outer Trim Cover Into I/P (Chevrolet)
    G01559234Courtesy of GENERAL MOTORS CORP.
