Installation Procedure

  1. Position the cigarette lighter retainer with the key to the slot into the cigarette lighter hole.
  2. Install the cigarette lighter retainer pressing into place until fully seated.
  3. Connect the electrical connector to cigarette lighter socket.
  4. Align the cigarette lighter socket to the cigarette lighter retainer and press into place until fully seated.
  5. Reposition the steering wheel.
  6. Install the cigarette lighter fuse.
  7. Install the cigarette lighter element.
  8. Inspect the instrument panel lighter for proper operation.

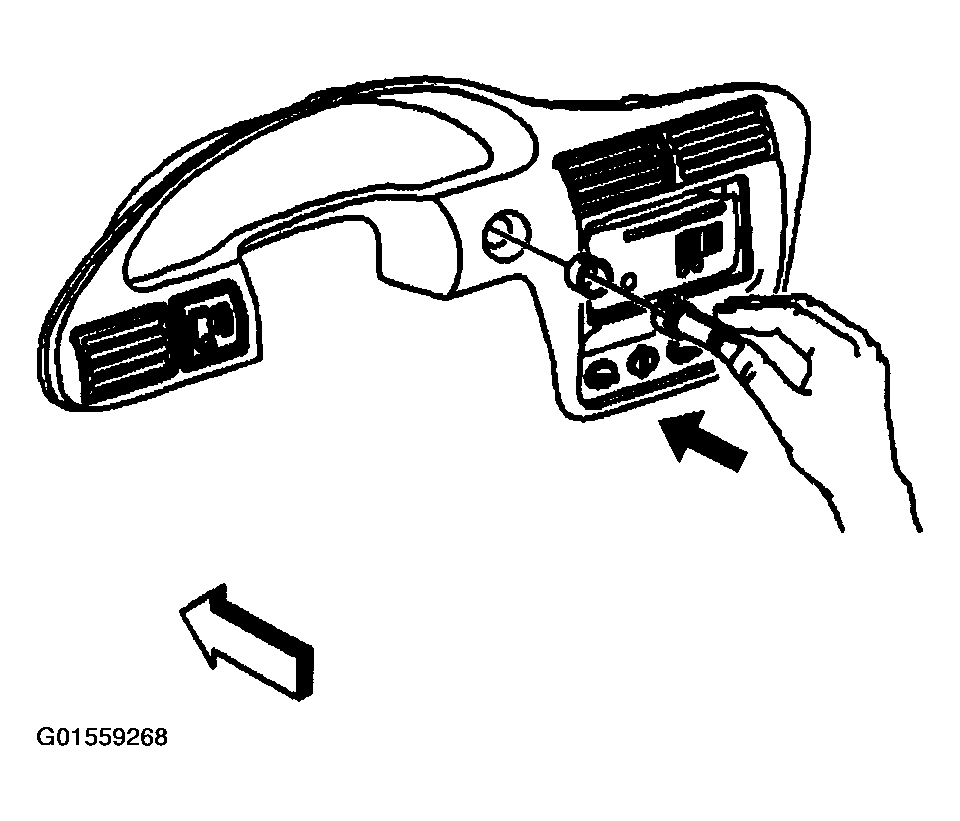

    Fig 1: Installing Cigarette Lighter Socket
    G01559268Courtesy of GENERAL MOTORS CORP.
