Speedometer and/or Odometer Inaccurate or Inoperative

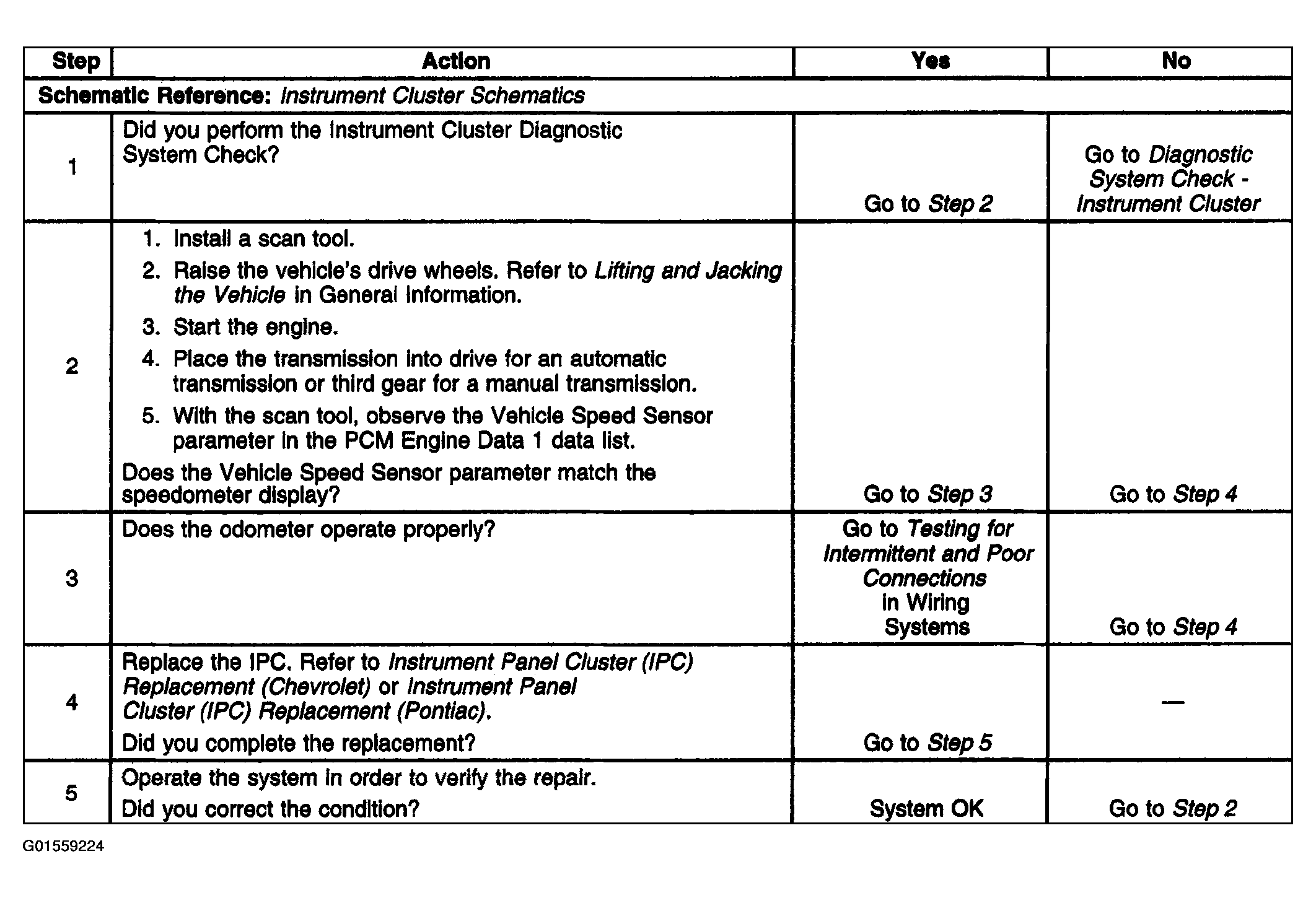

Fig 1: Diagnostic System Check - Speedometer And/Or Odometer Inaccurate Or Inoperative

G01559224

Courtesy of GENERAL MOTORS CORP.
