Engine Oil Pressure Indicator Always On

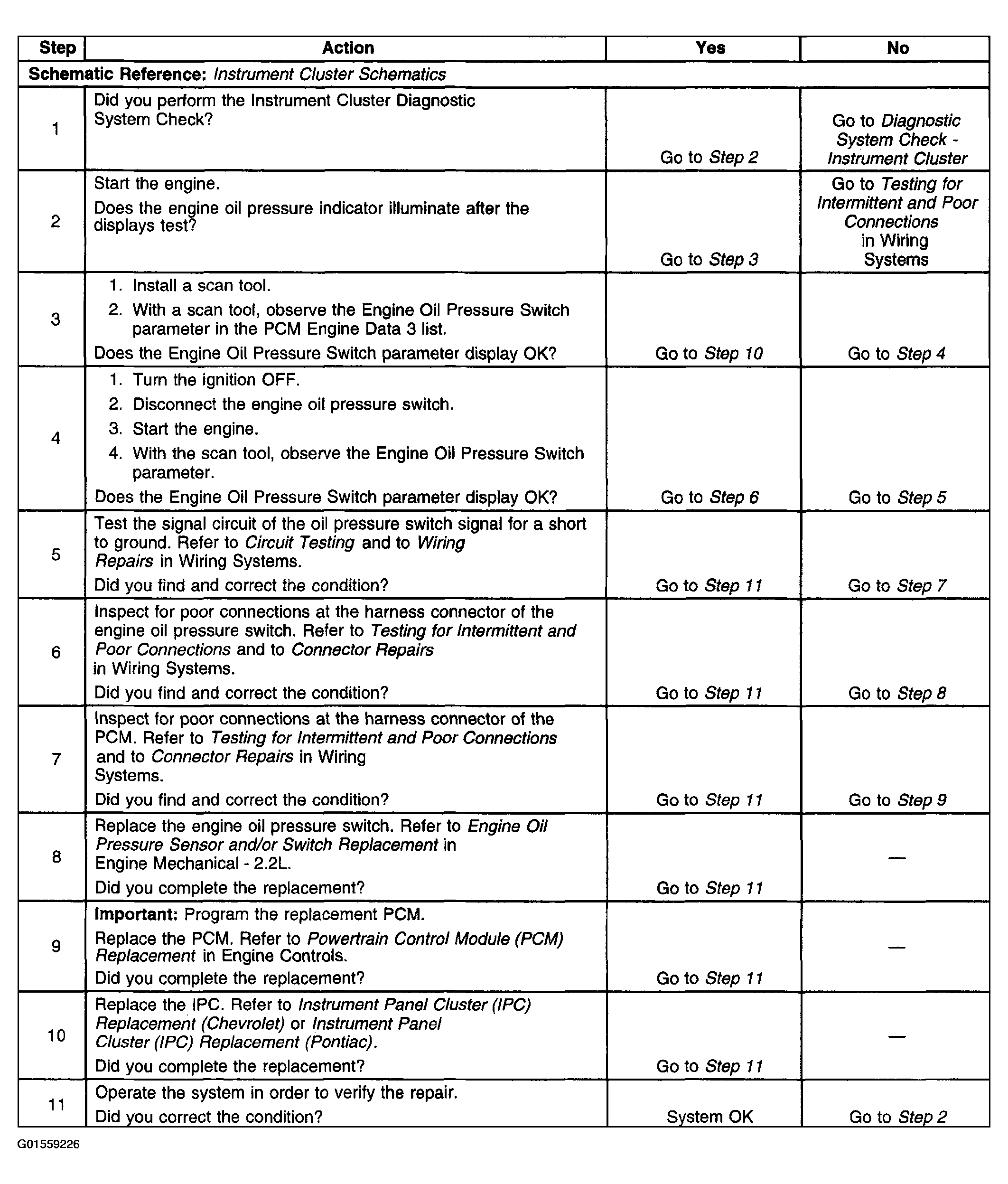

Fig 1: Diagnostic System Check - Engine Oil Pressure Indicator Always On

G01559226

Courtesy of GENERAL MOTORS CORP.
