Removal & Installation

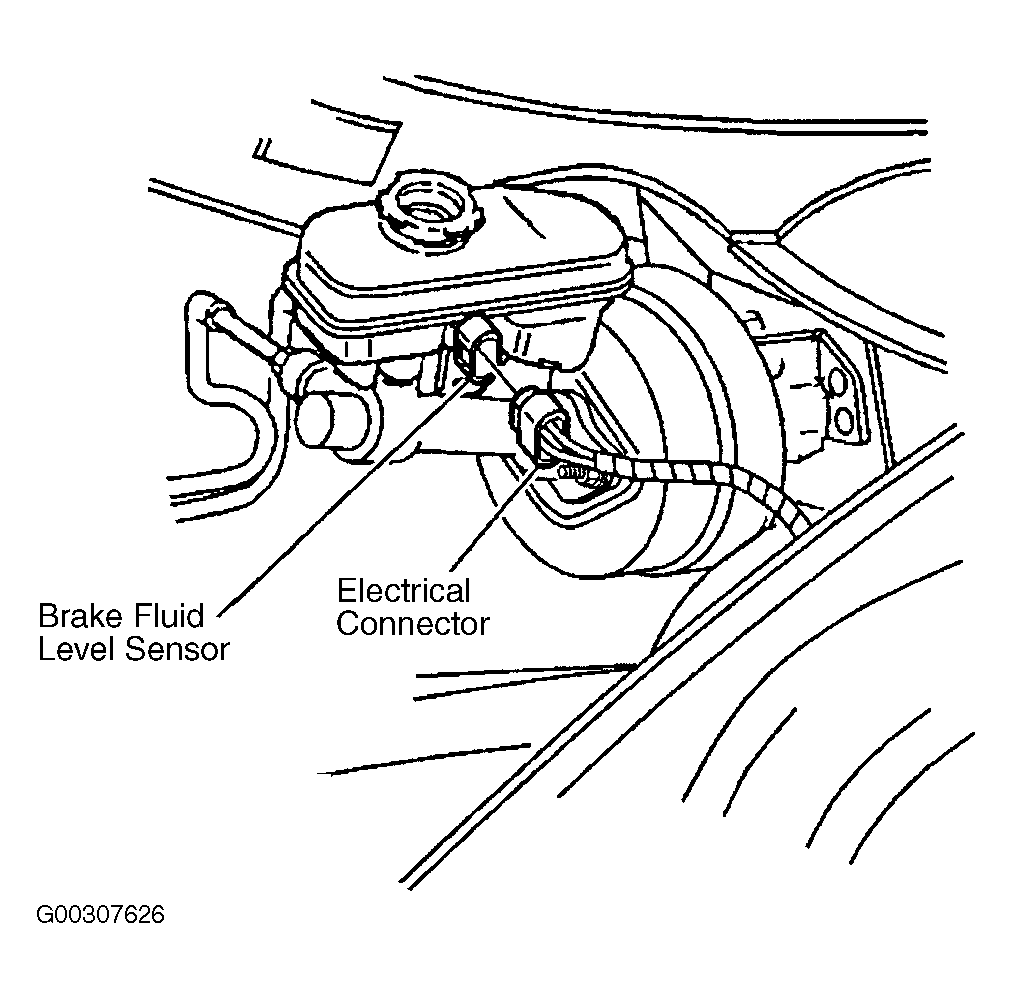

- Disconnect the electrical connector from the brake fluid level sensor. See Fig 1 .
- Remove the fluid level sensor. Use needle nose pliers in order to compress the switch locking tabs at the outboard side of the master cylinder.
- Place the brake fluid level sensor into the reservoir, press into place to secure the sensor retaining tabs.
- Connect the electrical connector to the Brake fluid level sensor. See Fig 1 .
