Instrument Panel, Gages, and Console Connector End Views

Fig 1: Identifying Heater Control Illumination Lamp Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Heater Control Illumination Lamp

Connector Part Information		097050200000 NAT
Pin	Wire Color	Function
1	RED/YEL	Headlamp Relay Output
2	RED/GRN	Illumination Controller On Signal

Fig 2: Identifying Instrument Cluster Connector C1 Terminals

Courtesy of GENERAL MOTORS CORP.

Instrument Cluster C1

Connector Part Information		09705164B025 GRY
Pin	Wire Color	Function
1	ORN/BLK	4WD Indicator
2	PPL/YEL	MIL Lamp
3	-	Not Used
4	RED	High Beam Indicator
5	WHT	Battery Positive Voltage
6	WHT/BLU	High Beam Indicator
7	YEL/GRN	AIR BAG Indicator
8	GRN/RED	LH Turn Indicator
9	BLU/YEL	VSS Input
10	-	Not Used
11	GRY/BLU	POWER Indicator
12-13	-	Not Used
14	BLK/WHT	Ignition Positive Voltage
15	-	Not Used
16	GRY/YEL	CRUISE Indicator

Fig 3: Identifying Instrument Cluster Connector C2 Terminals

Courtesy of GENERAL MOTORS CORP.

Instrument Cluster C2

Connector Part Information		09705104B023 BLU
Pin	Wire Color	Function
1	BLU/RED	Not Used
2	RED/YEL	Illumination Lamps
3	YEL/BLK	Oil Pressure Indicator
4	WHT/RED	Charge Indicator
5	GRY/RED	Seat Belt Indicator
6	PPL	Brake Indicator
7	RED/BLK	Brake Indicator
8	PPL/RED	Brake Indicator
9	BRN	Tachometer
10	BLK	RH Turn Indicator-Ground Side

Fig 4: Identifying Instrument Cluster Connector C3 Terminals

Courtesy of GENERAL MOTORS CORP.

Instrument Cluster C3

Connector Part Information		09705134B020 WHT
Pin	Wire Color	Function
1	GRN/YEL	RH Turn Indicator
2	BLK/YEL	Gauges Ground G103
3	BLU/WHT	Fuel Gauge
4	YEL/WHT	ECT Gauge
5	WHT/BLK	O/D OFF Indicator
6	RED/GRN	Illumination Lamps
7-13	-	Not Used

Fig 5: Identifying Ashtray Illumination Lamp Connector Terminals

Courtesy of GENERAL MOTORS CORP.

IP Ashtray Illumination Lamp

Connector Part Information		097050280110 NAT
Pin	Wire Color	Function
1	RED/GRN	Illumination Controller Output
2	RED/YEL	Headlamp Relay Signal

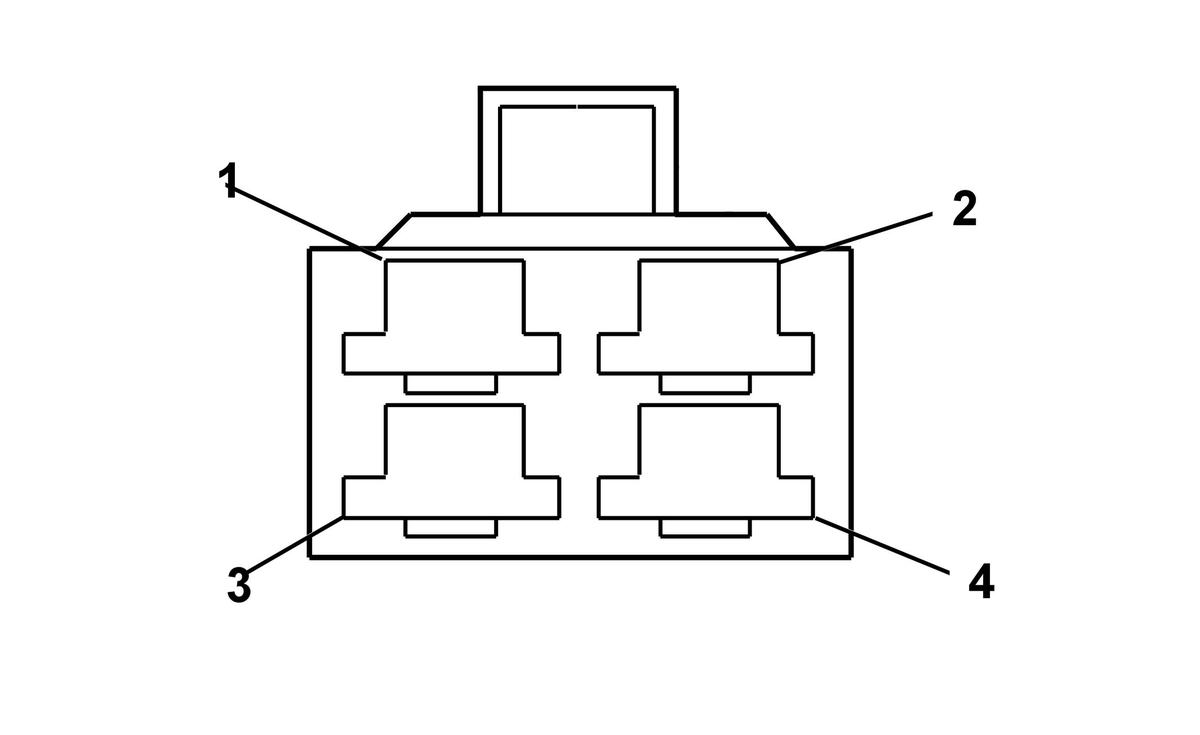

Fig 6: Identifying Cigar Lighter Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Cigar Lighter

Connector Part Information		097050400000 NAT
Pin	Wire Color	Function
1	RED/YEL	Headlamp Relay Output
2	WHT/BLK	Ignition Positive Voltage
3	RED/GRN	Illumination Controller Signal
4	BLK	Ground G-200

Fig 7: Identifying Seat Belt Switch Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Seat Belt Switch

Connector Part Information		097050310210 WHT
Pin	Wire Color	Function
1	GRN/RED	Seat Belt Signal
2	BLK	Ground - G400
3	-	Not Used
