Instrument Panel, Gages, and Console Component Views

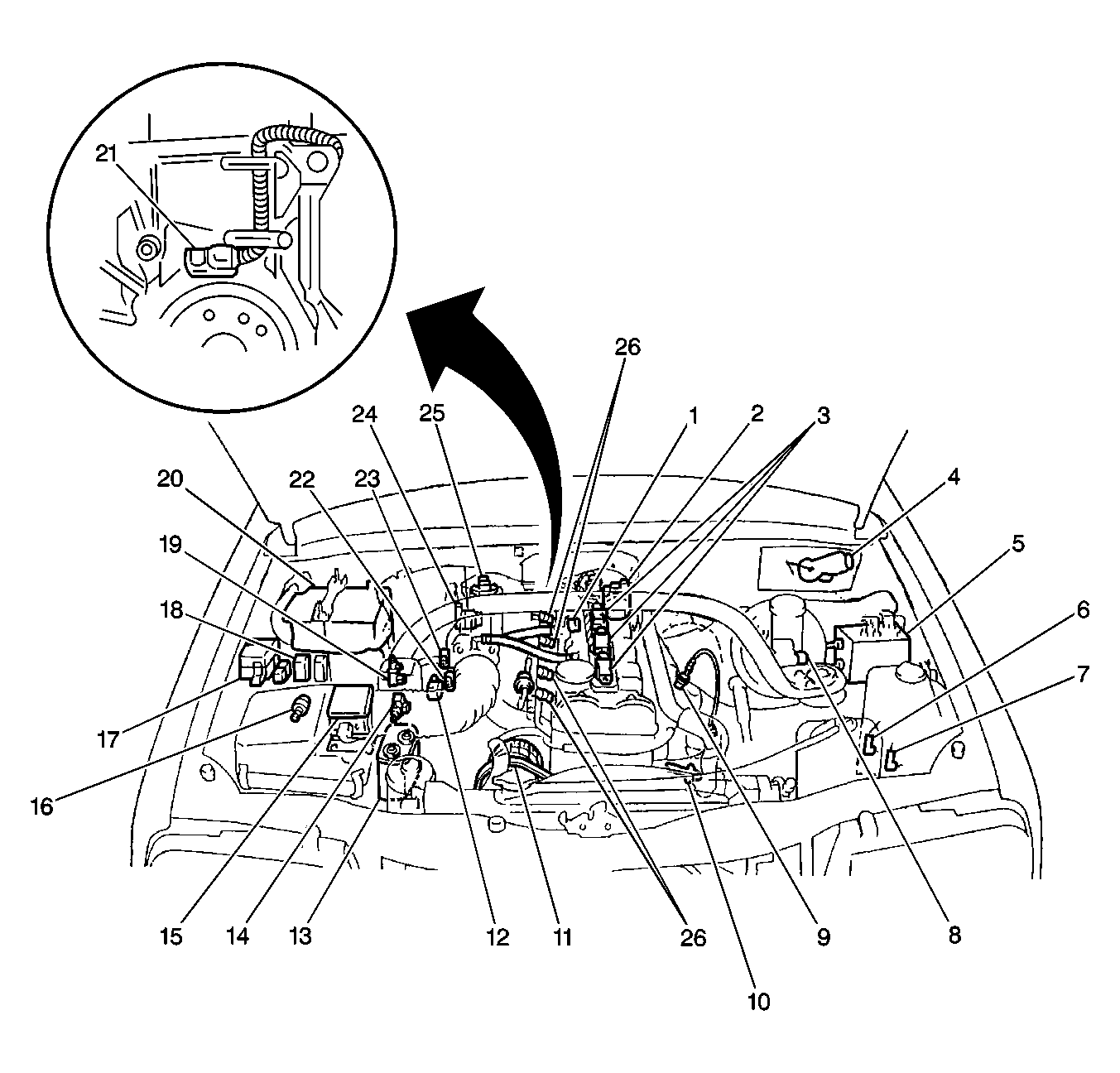

Fig 1: Locating Engine 2.0L Components

Courtesy of GENERAL MOTORS CORP.

Engine 2.0L Components

Callout	Component Name
1	Engine Coolant Temperature (ECT) Sensor
2	Camshaft Position (CMP) Sensor
3	Ignition Coils
4	Front Wiper Motor
5	Electronic Brake Control Module (EBCM)
6	Front Washer Pump
7	Rear Washer Pump
8	Brake Fluid Level Switch
9	Heated Oxygen Sensor 1 (HO2S1)
10	Heated Oxygen Sensor 2 (HO2S2)
11	Power Steering Pressure Switch
12	EVAP Canister Purge Valve
13	EVAP Canister
14	EVAP Canister Vent Solenoid
15	Mass Air Flow (MAF) Sensor
16	Intake Air Temperature (IAT) Sensor
17	Fuse Block
18	A/C Condenser Fan Relay
19	EVAP Tank Pressure Control Solenoid Valve
20	Battery
21	Crankshaft Position (CKP) Sensor
22	Intake Air Control (IAC) Valve
23	Throttle Position (TP) Sensor
24	Exhaust Gas Recirculation (EGR) Valve
25	Manifold Absolute Pressure (MAP) Sensor
26	Fuel Injectors

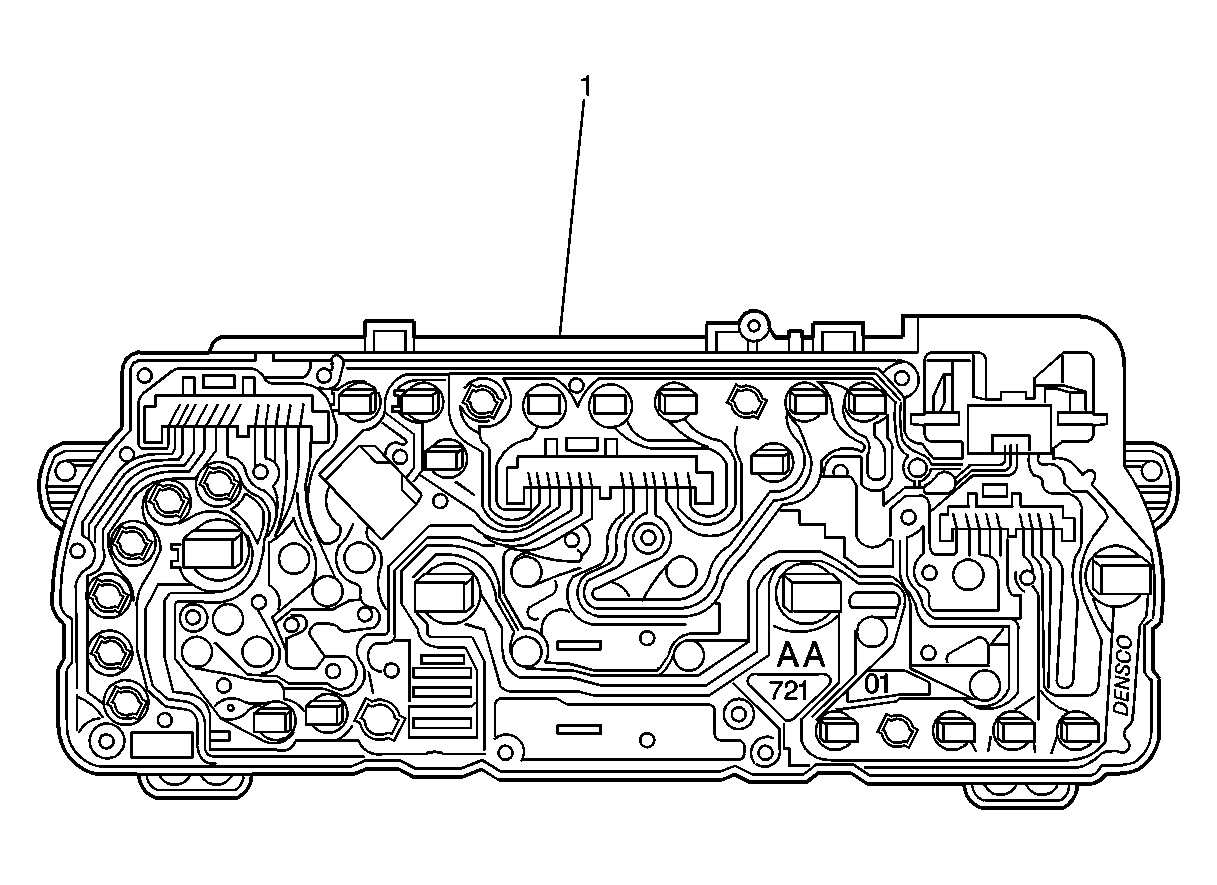

Fig 2: Identifying Instrument Cluster (Rear View)

Courtesy of GENERAL MOTORS CORP.

Instrument Cluster (Rear View)

Callout	Component Name
1	Instrument Cluster

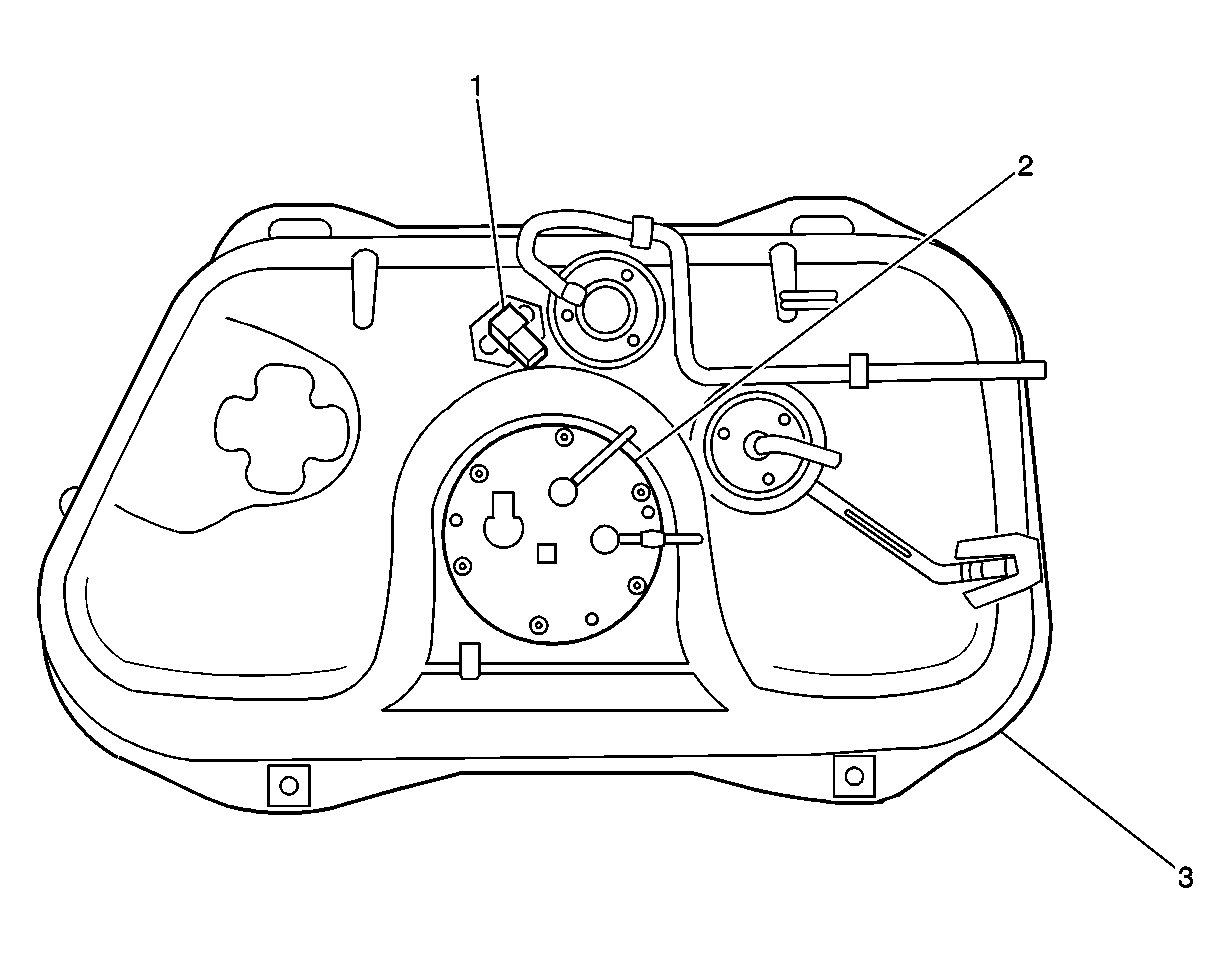

Fig 3: Locating Fuel Tank Components

Courtesy of GENERAL MOTORS CORP.

Fuel Tank
