Instrument Panel Cluster (IPC) Description and Operation: Indicators

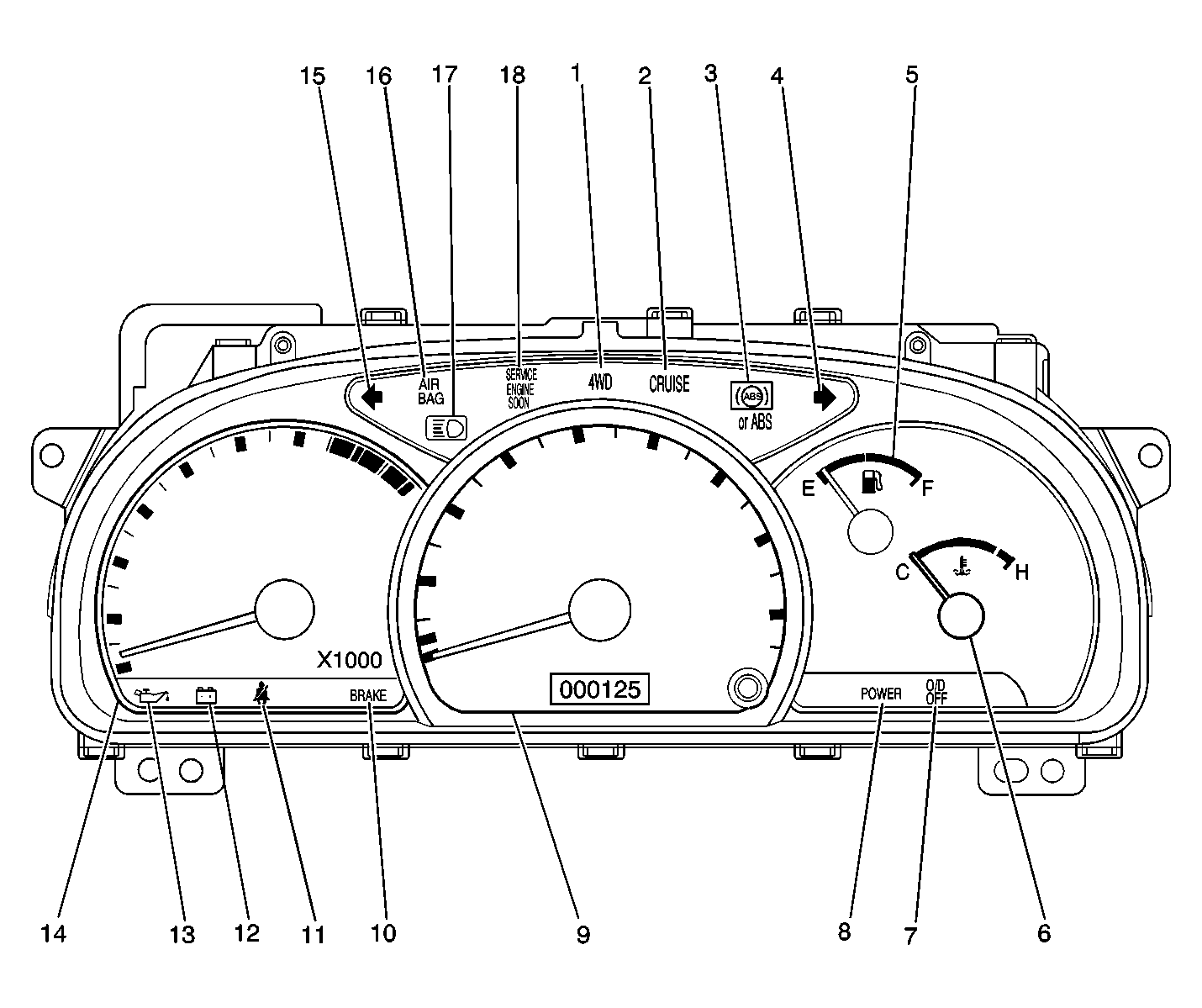

Fig 1: Identifying Instrument Panel Cluster Indicators

Courtesy of GENERAL MOTORS CORP.

The instrument panel cluster includes the following indicators:

• ABS (3), if the vehicle is equipped with an antilock brake system
• AIR BAG (16)
• BRAKE (10)
• Charging system (12)
• CRUISE (2), if equipped
• Fasten seat belt (11)
• High beam (17)
• O/D OFF (7), if the vehicle is equipped with the 4-speed A/T
• Oil pressure (13)
• POWER (8), if the vehicle is equipped with the 4-speed A/T
• SERVICE ENGINE SOON (18)
• Turn signals (4,15)
• 4WD (1), if equipped

The indicator bulbs are serviceable from the rear of the instrument cluster. Refer to Instrument Cluster Lamp Replacement .

The instrument cluster indicators may differ slightly from model to model, depending on the following factors:

• The transmission selection
• The options
• The model selection
