Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

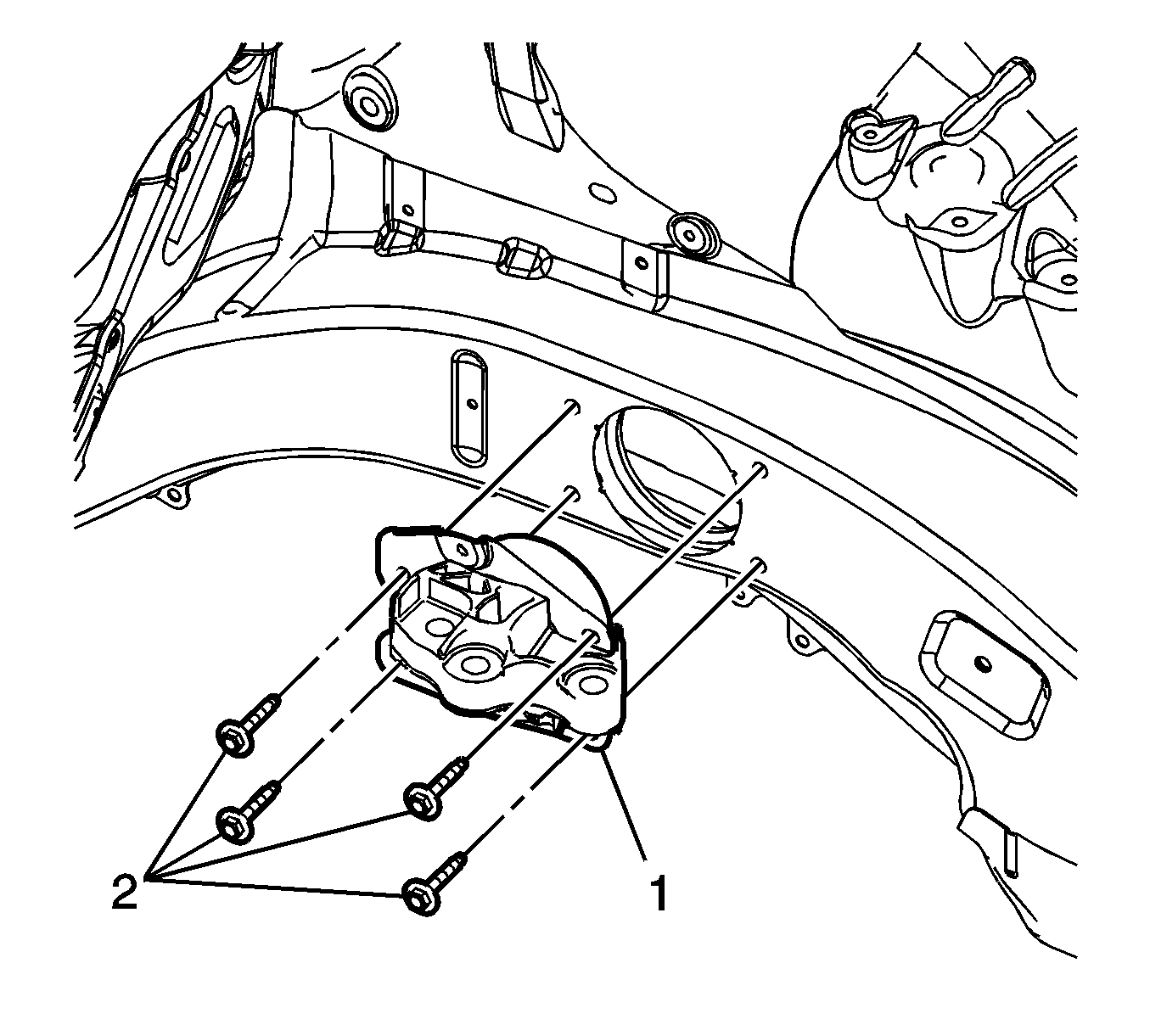

    Fig 1: Transmission Mount To Frame Rail Bolts
    GM1884332Courtesy of GENERAL MOTORS CORP.
  1. Install the left transmission mount (1).
    2. CAUTION: Refer to Fastener Caution .
  2. Install the transmission mount to frame rail bolts (2) and tighten to 27 N.m (20 lb ft).
  3. Using the engine support, raise the transmission until the transmission contacts the left transmission mount.

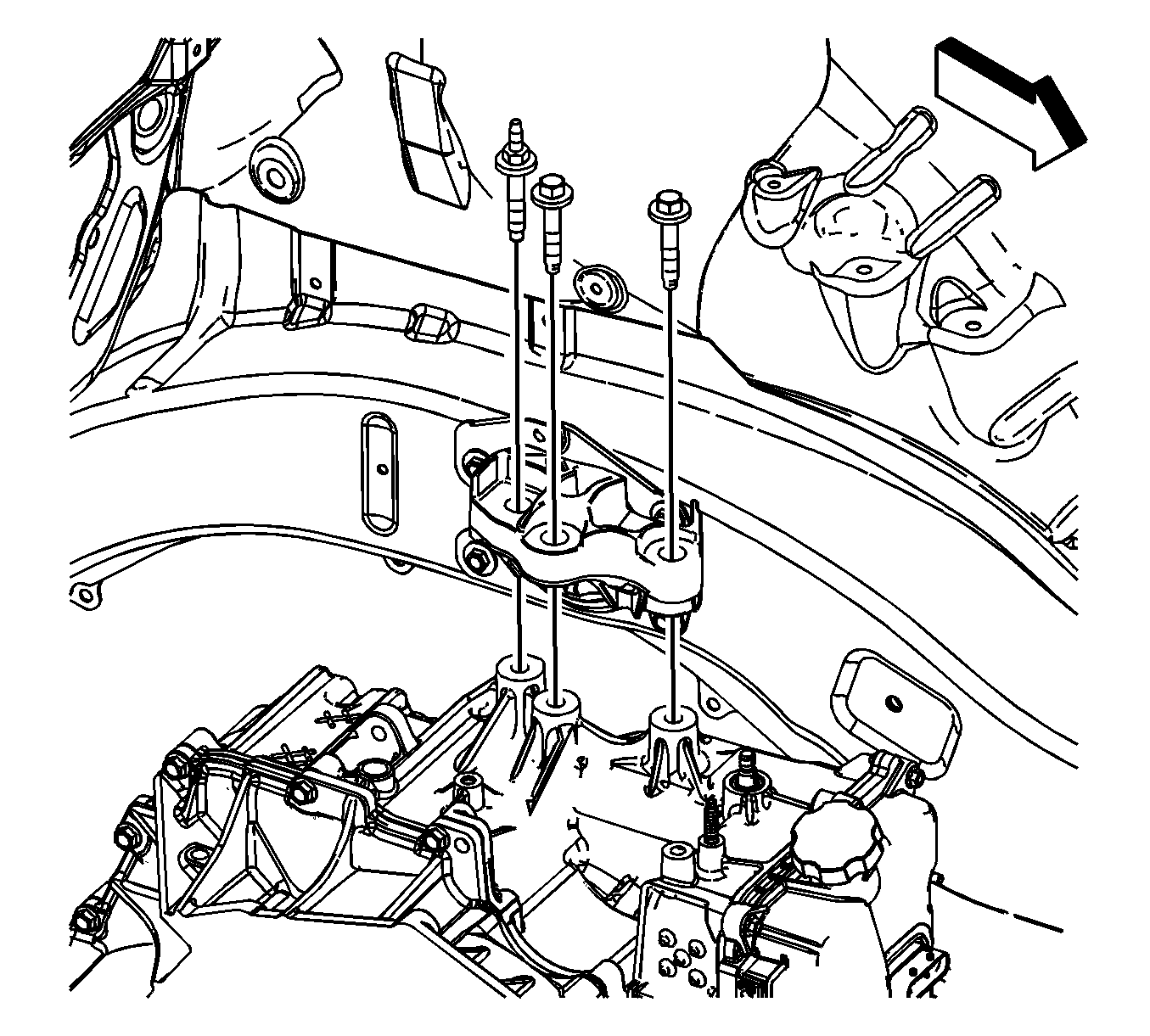

    4. Fig 2: Transmission Mount To Transmission Bolts
    GM1875678Courtesy of GENERAL MOTORS CORP.
  4. Install the transmission mount to transmission bolts and tighten to 50 N.m (37 lb ft).
  5. Raise the vehicle.

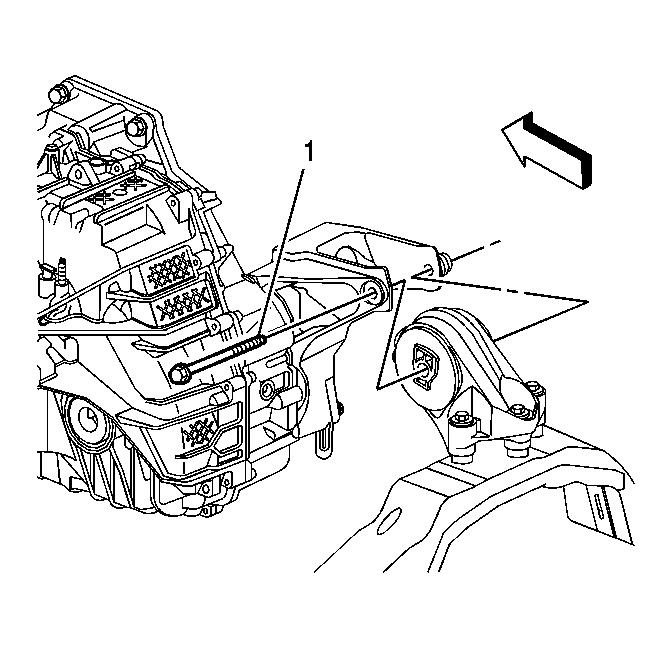

    6. Fig 3: Rear Transmission Mount Thru Bolt
    GM1884515Courtesy of GENERAL MOTORS CORP.
  6. Install the rear transmission mount thru bolt (1) and tighten to 110 N.m (81 lb ft).

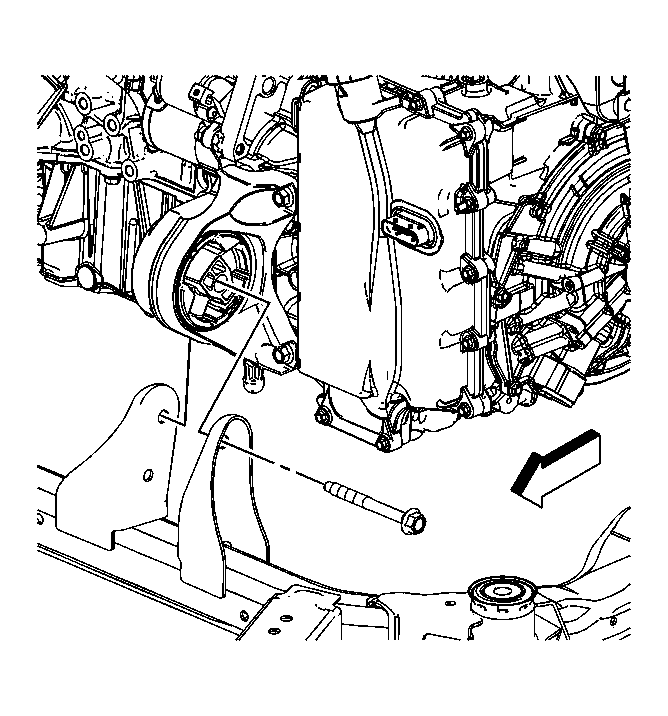

    7. Fig 4: Front Transmission Mount Thru Bolt
    GM1875680Courtesy of GENERAL MOTORS CORP.
  7. Install the front transmission mount thru bolt and tighten to 110 N.m (81 lb ft).
  8. Lower the vehicle.
  9. Remove the engine support fixture.
  10. Install the range selector cable bracket. Refer to Range Selector Lever Cable Bracket Replacement .
  11. Install the battery box. Refer to Battery Box Replacement .
