Input Speed Sensor Seal Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

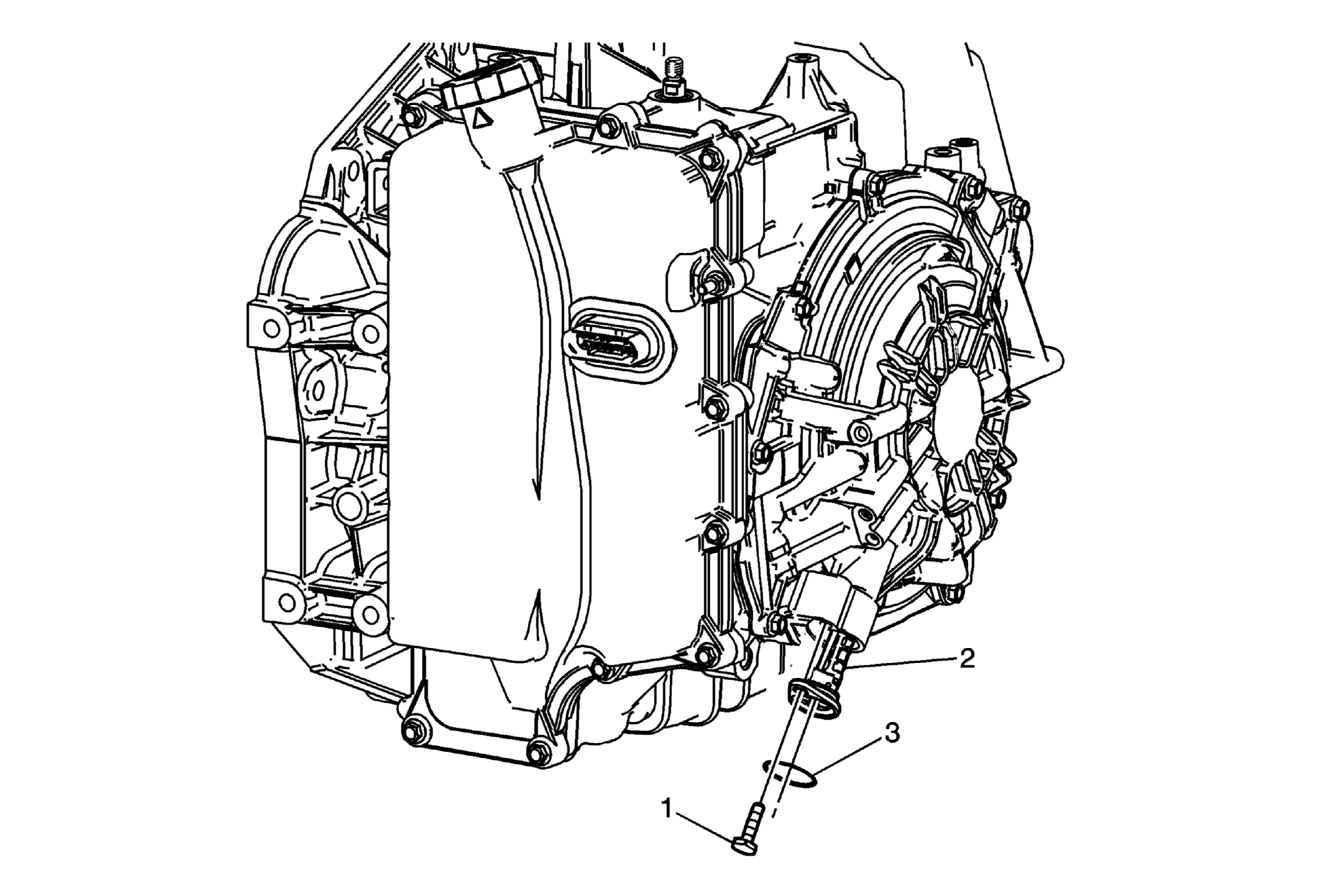

Fig 1: Identifying Input Speed Sensor Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Drain the transmission, refill when repair is completed. Refer to Transmission Fluid Replacement . Remove the left engine splash shield. Refer to Engine Splash Shield Replacement .
1	Input Speed Sensor Bolt M6 x 25 CAUTION: Refer to Fastener Caution . Procedure: Apply threadlocker GM P/N 12345382 (Canadian P/N 10953489) or equivalent to the input speed sensor bolt. Tighten: 9 N.m (80 lb in)
2	Input Speed Sensor (ISS) Tip: Pull the ISS out of the case cover just far enough to gain access to the ISS seal.
3	Input Speed Sensor Seal Tip: Remove the ISS seal by pulling it over the end of the ISS base. Install the new ISS Seal by gently stretching it over the ISS base. Overstretching the seal will cause it to not seal properly. The seal is coated with a dry lubricant. If the coating is missing, lubricate the seal with automatic transmission fluid prior to installation.
