Automatic Transmission Range Selector Lever Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

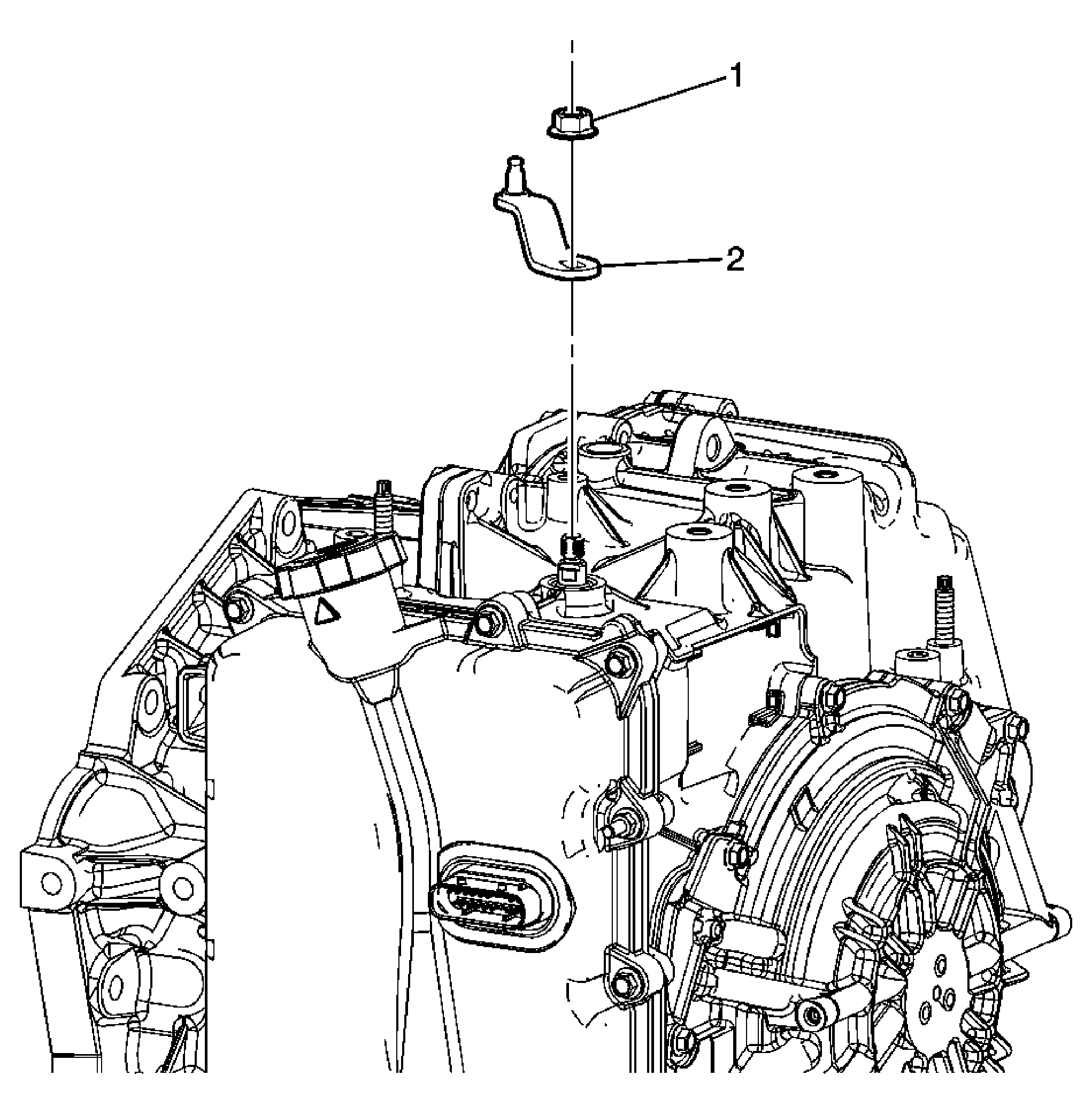

Fig 1: Automatic Transmission Range Selector Lever

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Set the park brake and chock the wheels. Disconnect the range selector cable from the range selector lever.
1	Transmission Range Selector Lever Nut CAUTION: Refer to Fastener Caution . Tighten: 20 N.m (15 lb ft)
2	Transmission Range Selector Lever

Callout

Component Name

Preliminary Procedures

Set the park brake and chock the wheels.
Disconnect the range selector cable from the range selector lever.

Transmission Range Selector Lever Nut

CAUTION: Refer to Fastener Caution .

Tighten: 20 N.m (15 lb ft)

Transmission Range Selector Lever
