Hydraulic Brakes
>>
Specifications
>>
Brake System Specifications
Brake System Specifications

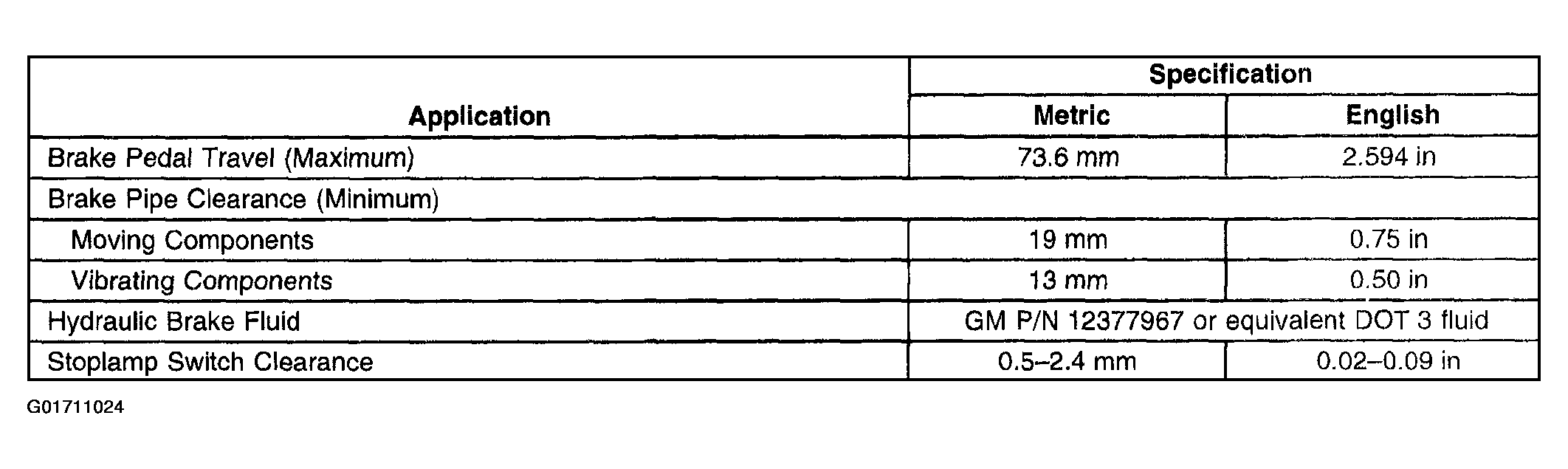

Fig 1: Brake System Specifications
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
