Removal Procedure

  1. Remove the following from the check valve:
    • The hose clamp
    • The hose
  2. Remove the valve from the tube.
  3. Remove the following from the booster assembly (1):
    • The hose clamp
    • The hose
    • The check valve

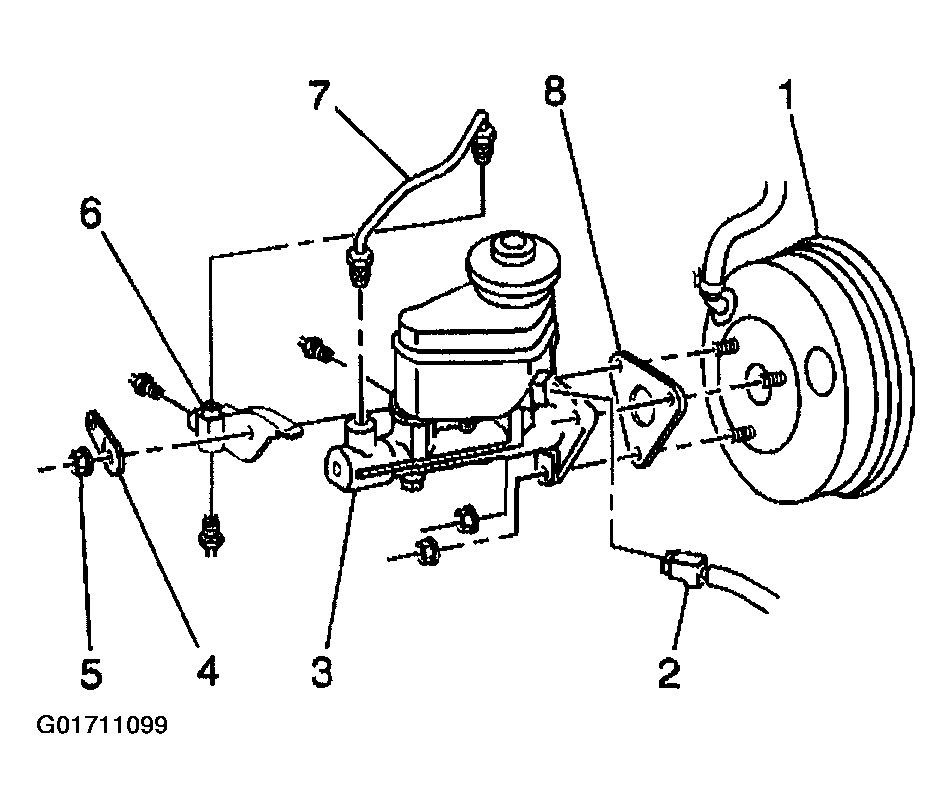

    Fig 1: Removing Vacuum Brake Booster Check Valve and/or Hose
    G01711099Courtesy of GENERAL MOTORS CORP.
