Installation Procedure

  1. Install the hose to the booster assembly (1). Secure with the hose clamp.
  2. Install the valve to the tube.
  3. Install the hose to the check valve. Secure with the hose clamp.

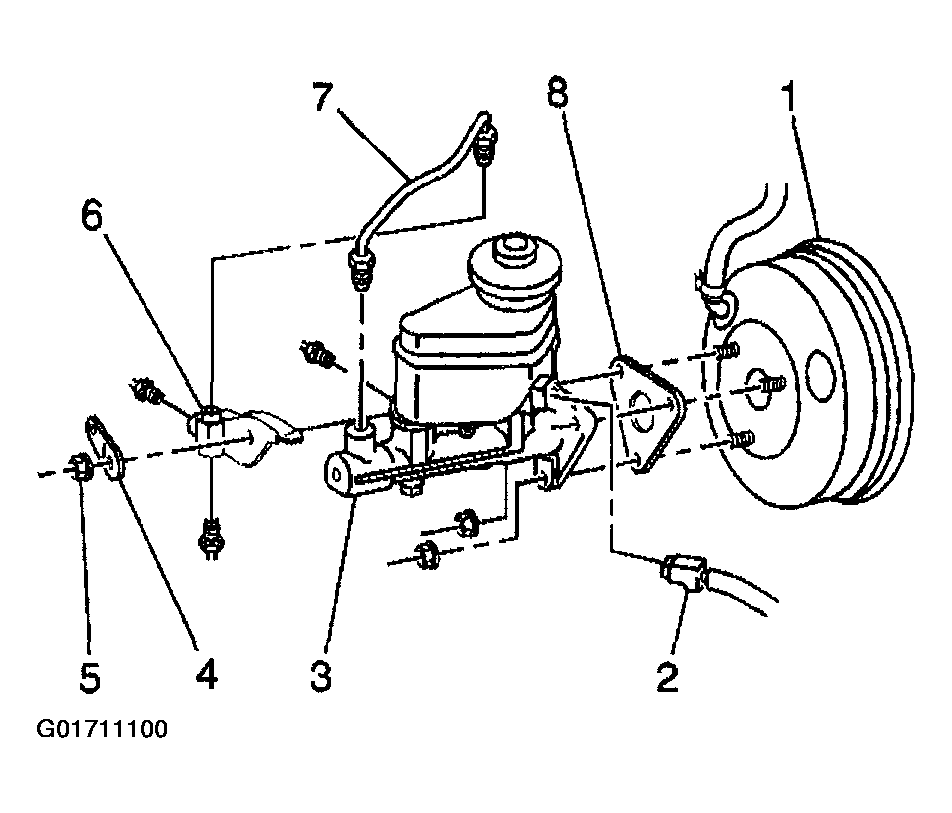

    Fig 1: Installing Vacuum Brake Booster Check Valve and/or Hose
    G01711100Courtesy of GENERAL MOTORS CORP.
