Removal Procedure

  1. Disconnect the negative battery cable.
  2. Remove the knee bolster. Refer to KNEE BOLSTER REPLACEMENT .
  3. Remove the following components from the I/P carrier:
    • The plastic retainer
    • The left side air ventilation duct
    • The screw
    • The left side air outlet duct
  4. Disconnect the stoplamp switch electrical connector.
  5. Remove the following components from the vehicle:
    • One locknut
    • The stoplamp switch (1)

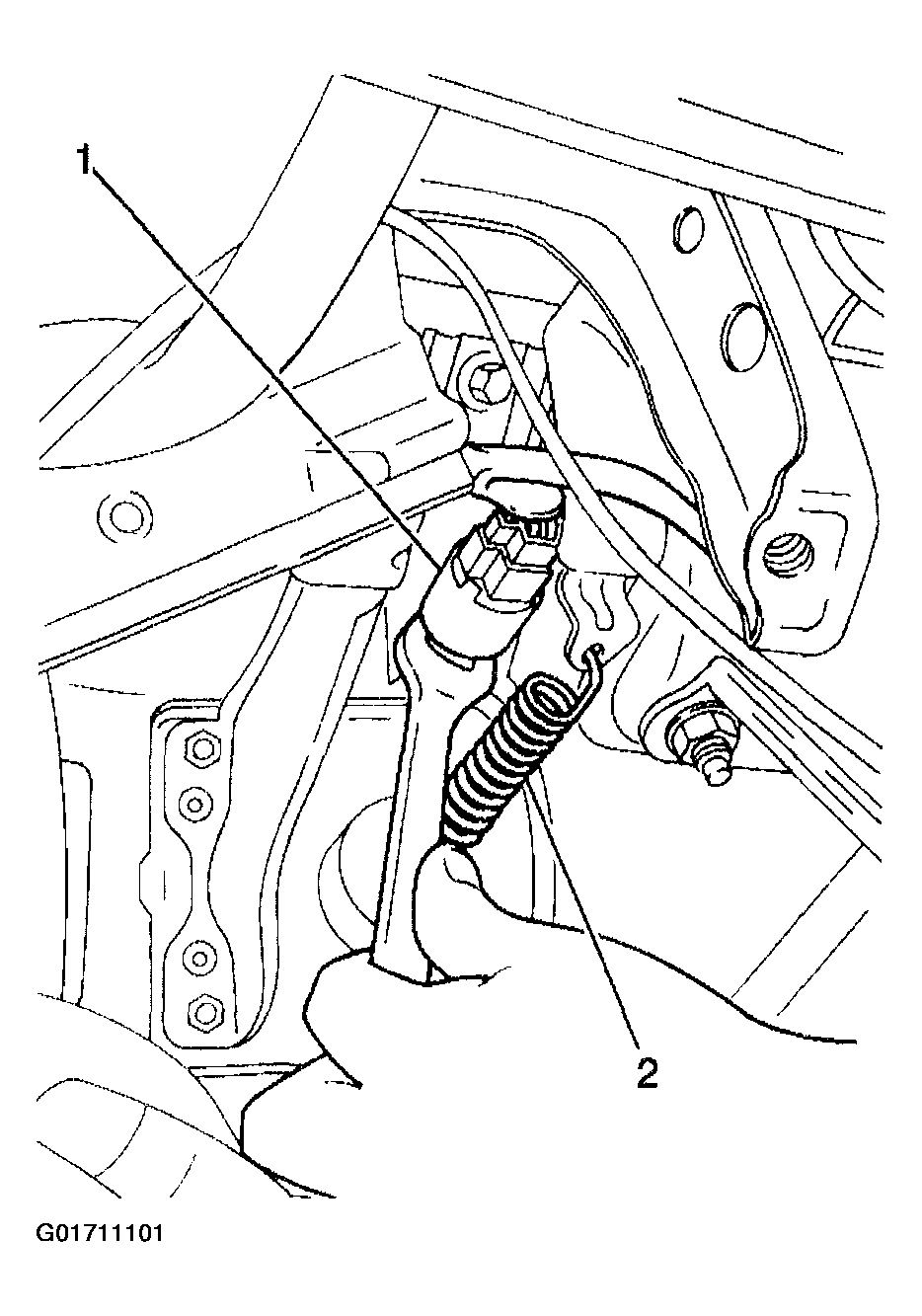

    Fig 1: Removing Stop Lamp Switch
    G01711101Courtesy of GENERAL MOTORS CORP.
