Removal Procedure
NOTE:
Brake fluid will damage electrical connections and painted surfaces. Use shop cloths, suitable containers, and fender covers to prevent brake fluid from contacting these areas. Always re-seal and wipe off brake fluid containers to prevent spills.
- Clean the outside of the brake fluid reservoir.

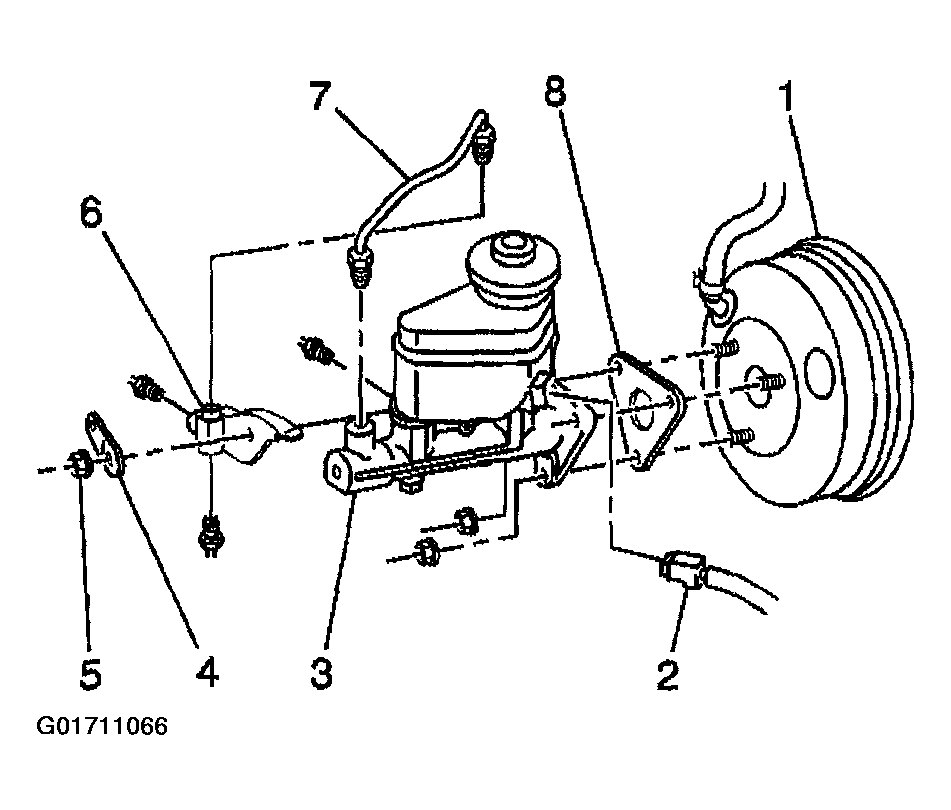

- Disconnect the electrical connector (2) for the fluid level switch.
- Clean the cap for the reservoir.
- Remove the cap for the reservoir.
- Siphon the brake fluid from the reservoir.
- Remove the set screw for the reservoir.
- Remove the reservoir and the grommets from the master cylinder.
