Installation Procedure

  1. Install the new grommets into the master cylinder (3).
  2. Lubricate the grommets using new, clean brake fluid. Ensure that the grommets are seated properly.
  3. Install the reservoir to the master cylinder.
  4. Install the set screw for the reservoir.
  5. Connect the electrical connector (2) for the fluid level switch.
  6. Fill the reservoir with brake fluid, GM P/N 12377967, or the equivalent DOT 3 brake fluid, until the fluid reaches the MAX mark.
  7. Install the cap to the reservoir.
  8. Inspect for fluid leakage.
  9. Bleed the brake system. Refer to Hydraulic Brake System Bleeding .

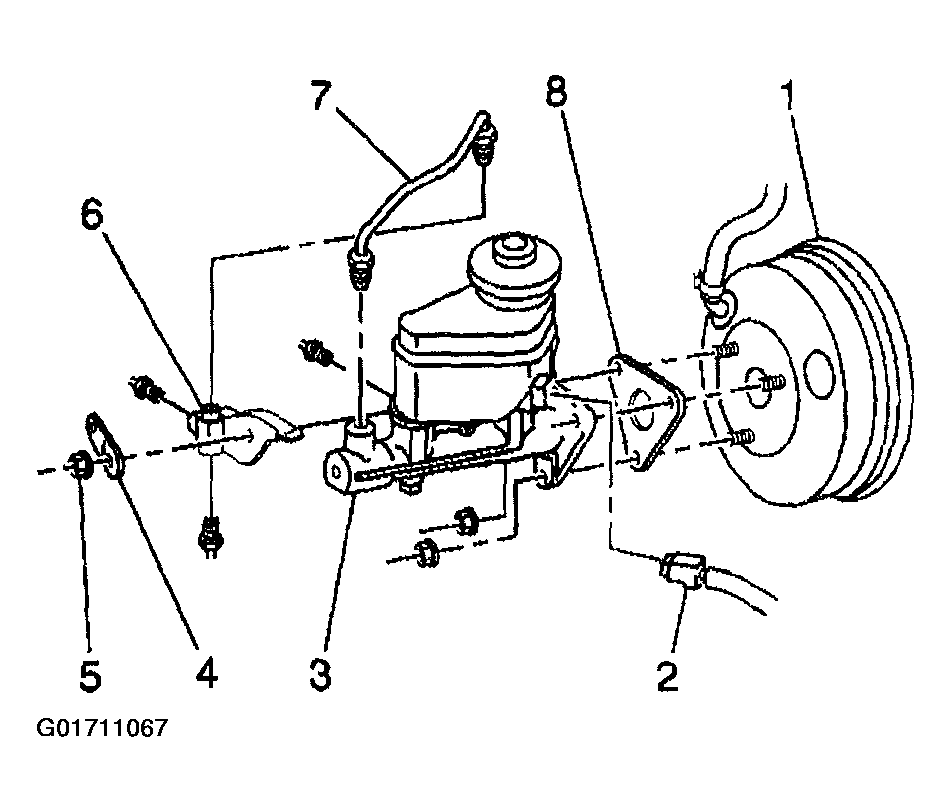

    Fig 1: Installing Master Cylinder Reservoir
    G01711067Courtesy of GENERAL MOTORS CORP.
