Tools Required

J 39801  Brake Bleeder Adapter

1. If the vehicle has ABS and you replaced the master cylinder or the BPMV, refer to ABS AUTOMATED BLEED PROCEDURE .
2. Clean the reservoir cap.
3. Fill the reservoir with brake fluid, GM P/N 12377967 (or equivalent Dot 3 brake fluid) to the MAX mark on the reservoir (1).
4. Ensure that the level of the brake fluid in the reservoir is at least one- half full during the bleeding operation.
5. Install the J 39801 to the master cylinder reservoir.
6. Connect the pressure bleeder to the J 39801.

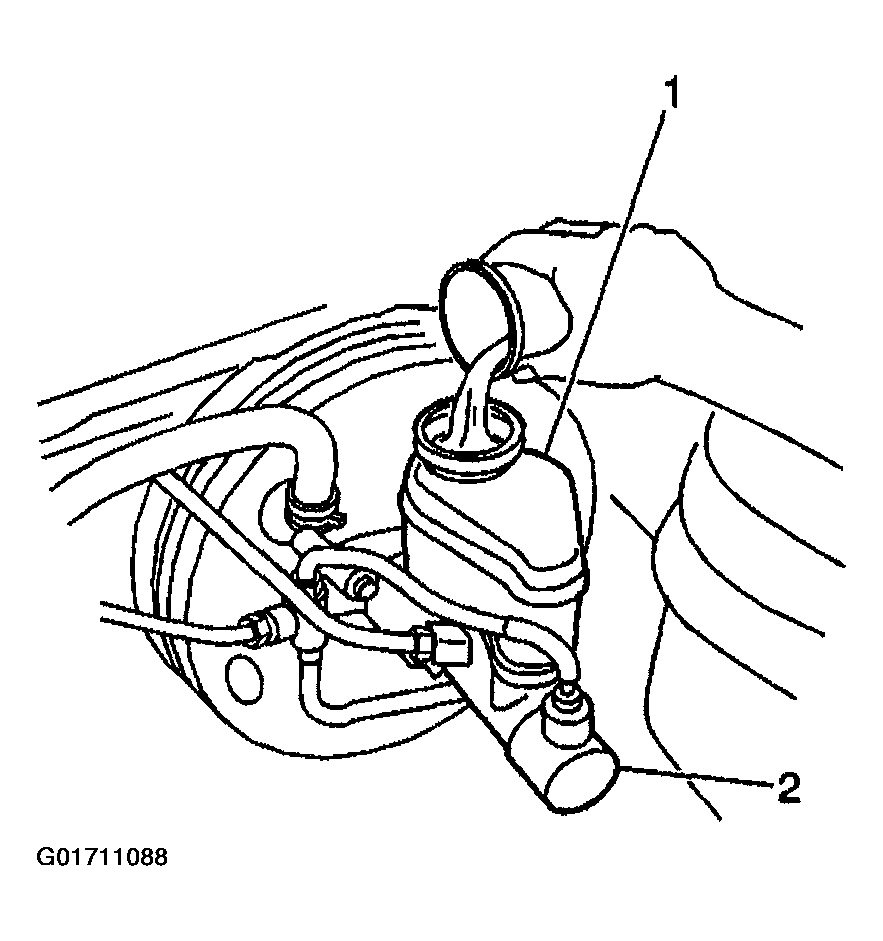

   Fig 1: Filling Reservoir

   Courtesy of GENERAL MOTORS CORP.
7. Raise and support the vehicle.
8. Clean any dirt and foreign material from the hydraulic brake hose and from the fittings.
9. Place a box and wrench (3) over the bleeder valve (2).
10. Attach a transparent hose (1) over the bleeder valve (2).
11. Submerge the other end of the hose in an transparent container (5) filled with brake fluid (6).
12. Charge the pressure bleeder to 140-172 kPa (20- 25 psi).
13. Loosen the bleeder valve (2) approximately one-half turn. The brake pedal should now fall all the way to the floor as the brake fluid flows out of the bleeder valve and into the clear fluid container.

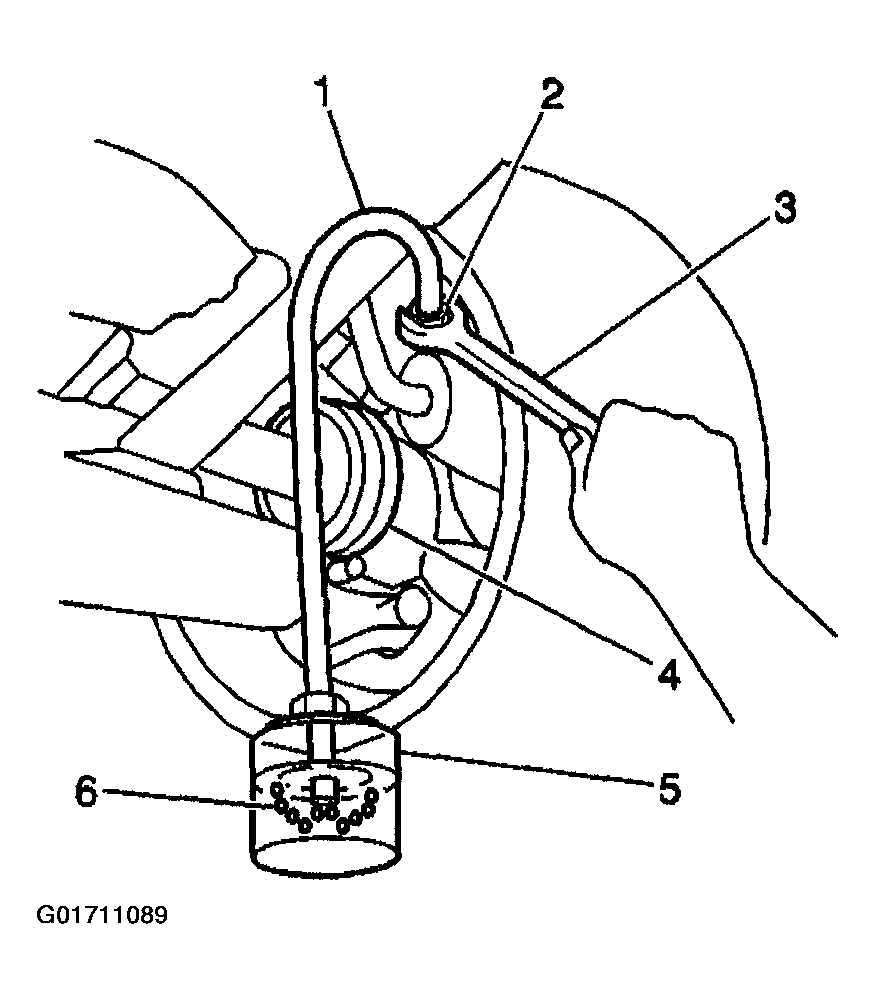

    Fig 2: Pressure Bleeding Hydraulic Brake System

    Courtesy of GENERAL MOTORS CORP.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
14. Tighten the bleeder valve (2).

    Tighten

    Tighten the bleeder valve to 8.3 N.m (85.74 in lbs).

15. Inspect the brake pedal application.
16. Bleed the hydraulic brake system until the following conditions are met:
    • The brake pedal application does not feel spongy.
    • There is no air in the brake pipes or hoses.
    • There are no air bubbles in the clear fluid container (6).
17. Ensure the pressure bleeder is charged to 140-172 kPa (20-25 psi).
18. Remove the transparent hose (1) from the bleeder valve (2).
19. Remove the box end wrench (3) from the bleeder valve (2).
20. Repeat the hydraulic brake system bleeding procedure at each required wheel in order to bleed the entire hydraulic brake system.
21. Remove the pressure bleeder.
22. Install the reservoir cap.
23. Lower the vehicle.
