Hydraulic Brake System Diagnosis

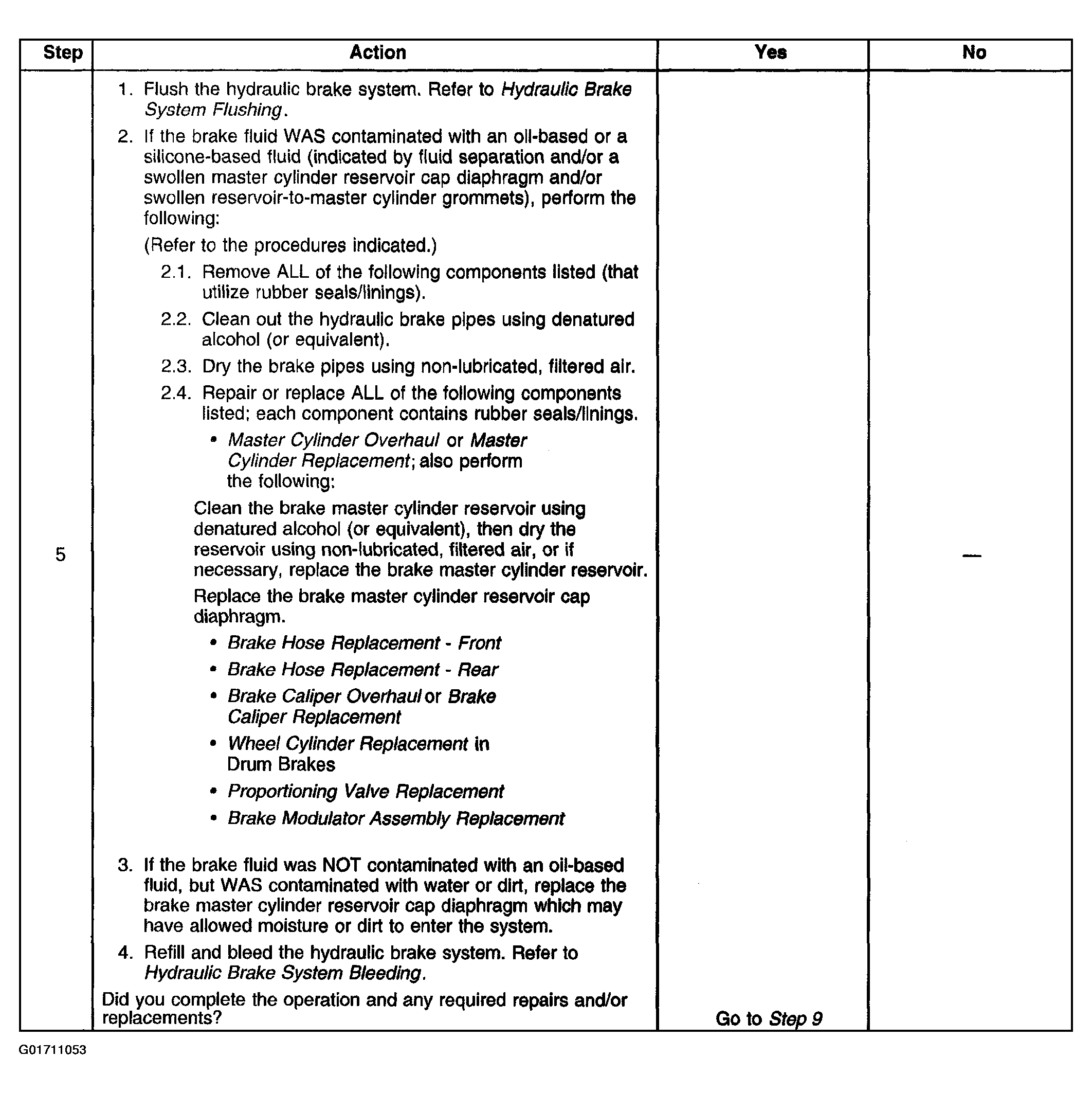

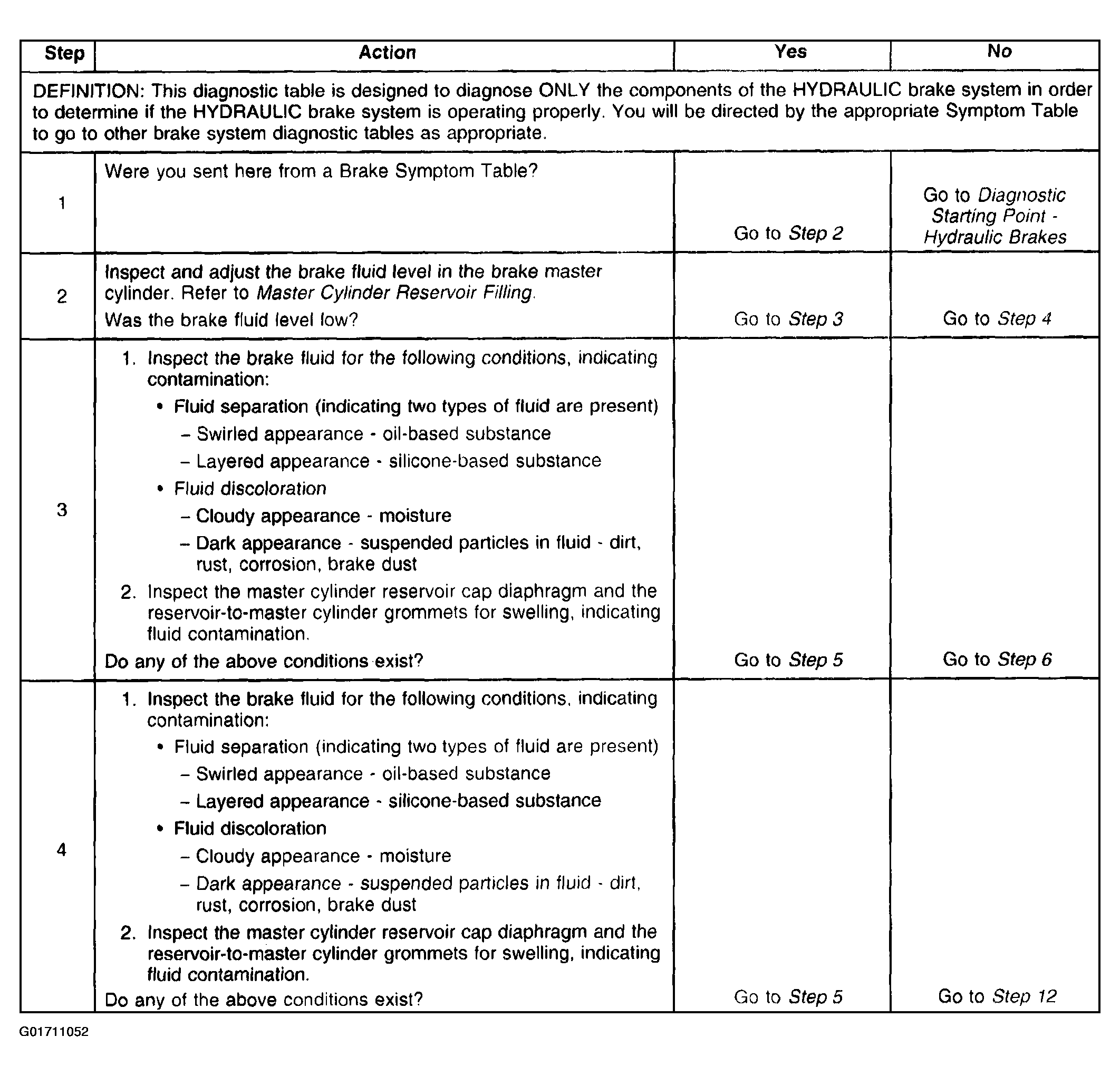

Fig 1: Hydraulic Brake System Diagnosis (1 Of 5)
Courtesy of GENERAL MOTORS CORP.

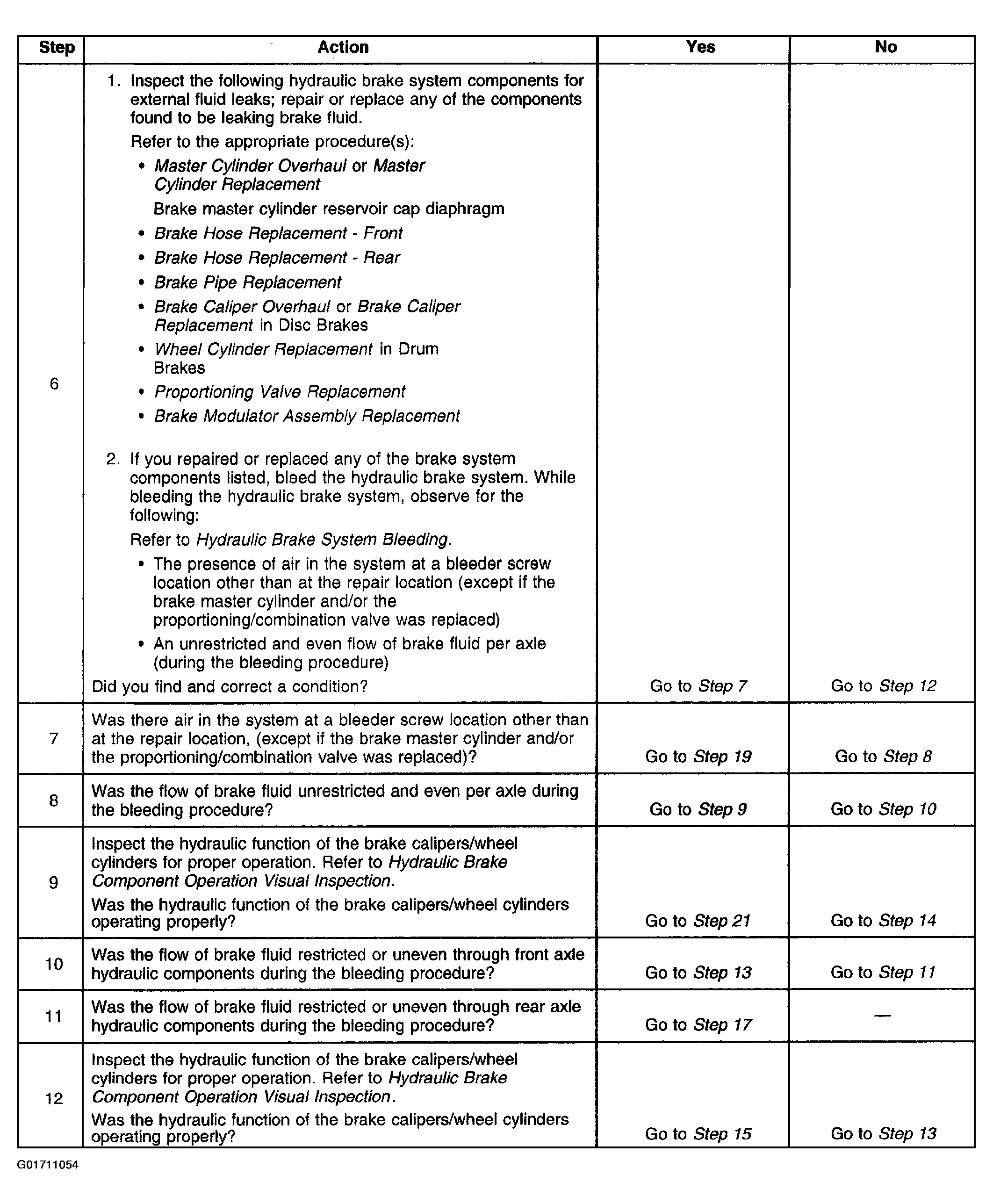

Fig 2: Hydraulic Brake System Diagnosis (2 Of 5)
Courtesy of GENERAL MOTORS CORP.
Fig 3: Hydraulic Brake System Diagnosis (3 Of 5)
Courtesy of GENERAL MOTORS CORP.
Fig 4: Hydraulic Brake System Diagnosis (4 Of 5)
Courtesy of GENERAL MOTORS CORP.

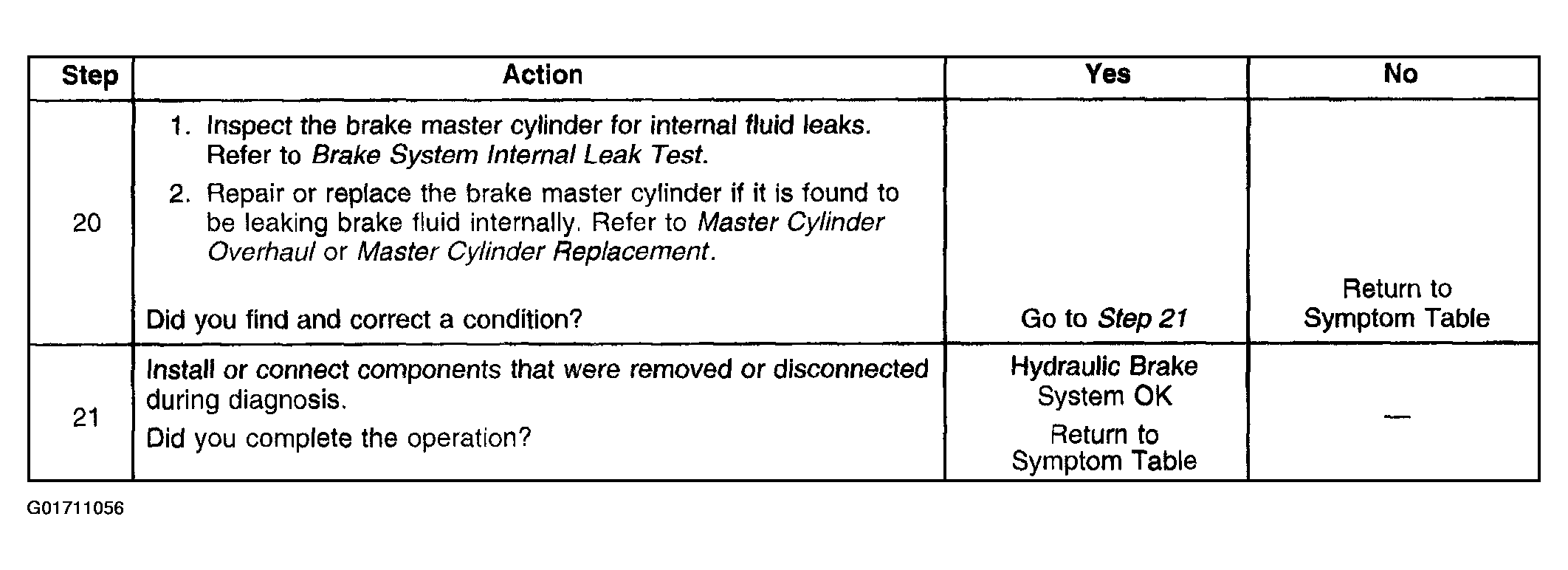

Fig 5: Hydraulic Brake System Diagnosis (5 Of 5)
Courtesy of GENERAL MOTORS CORP.
