Test Description

The number below refer to the step number on the diagnostic table:

1. 18. Drum brake backing plates that come in contact with brake drums may cause brake system noise.

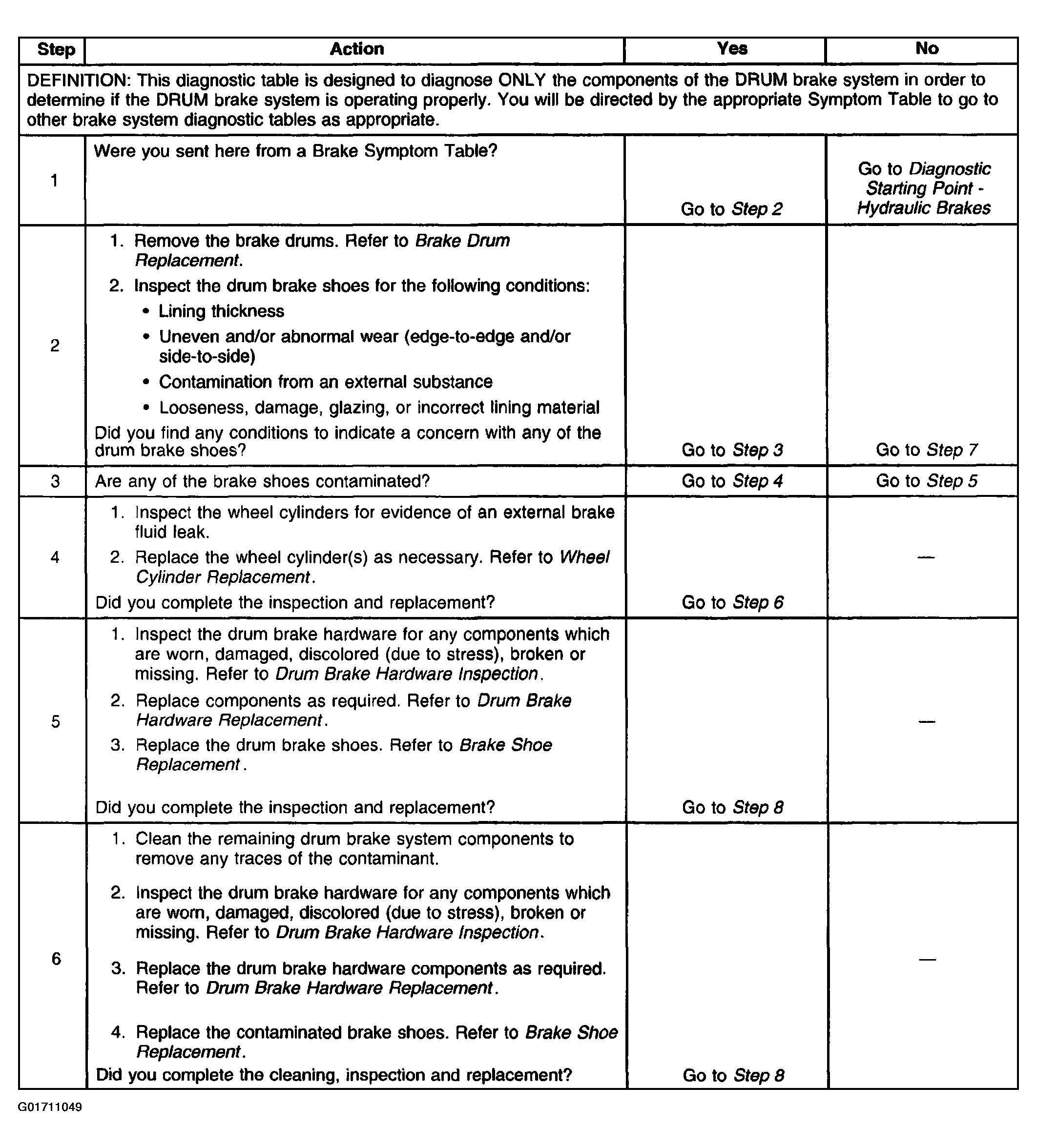

Fig 1: Drum Brake System Diagnosis (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

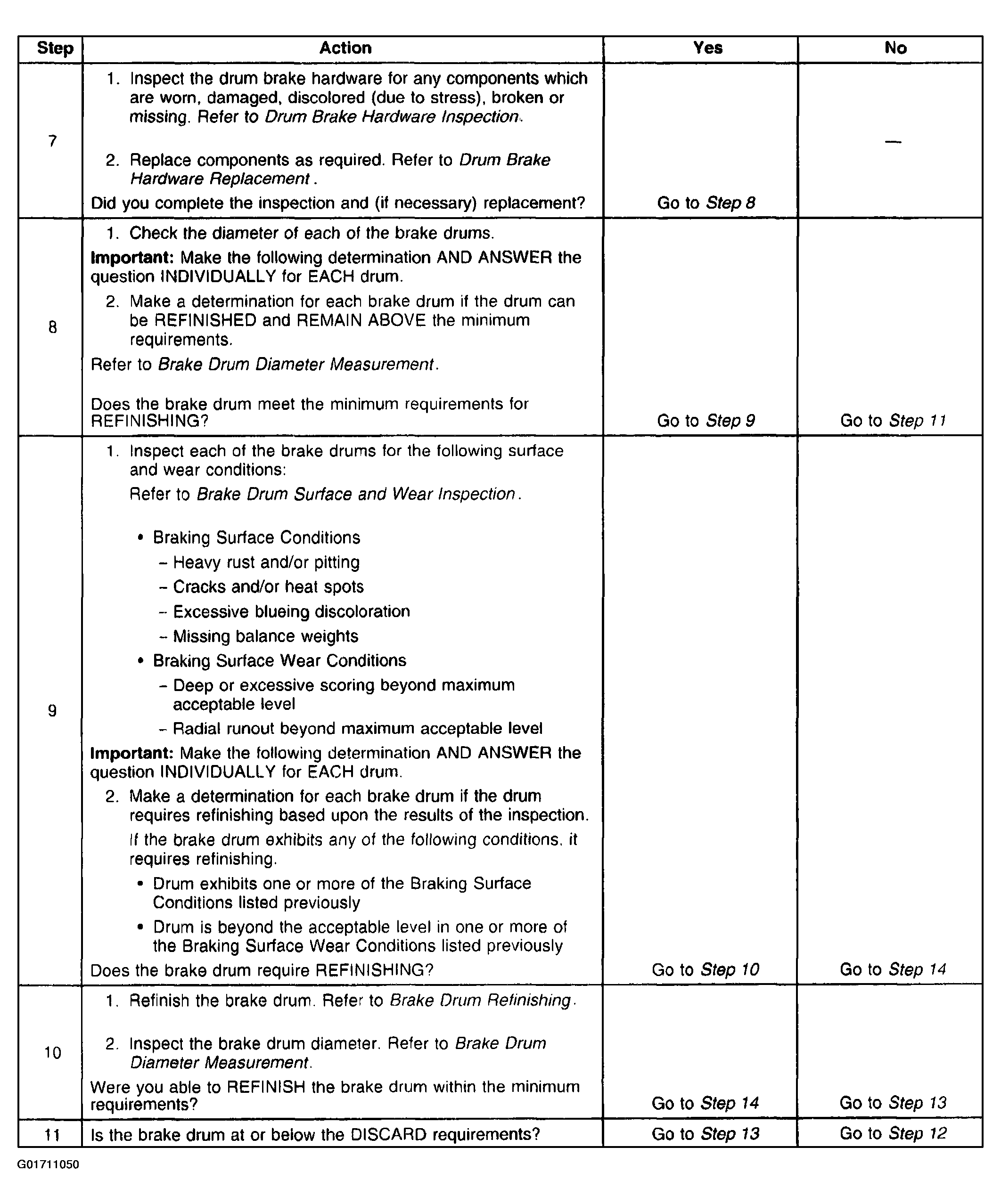

Fig 2: Drum Brake System Diagnosis (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

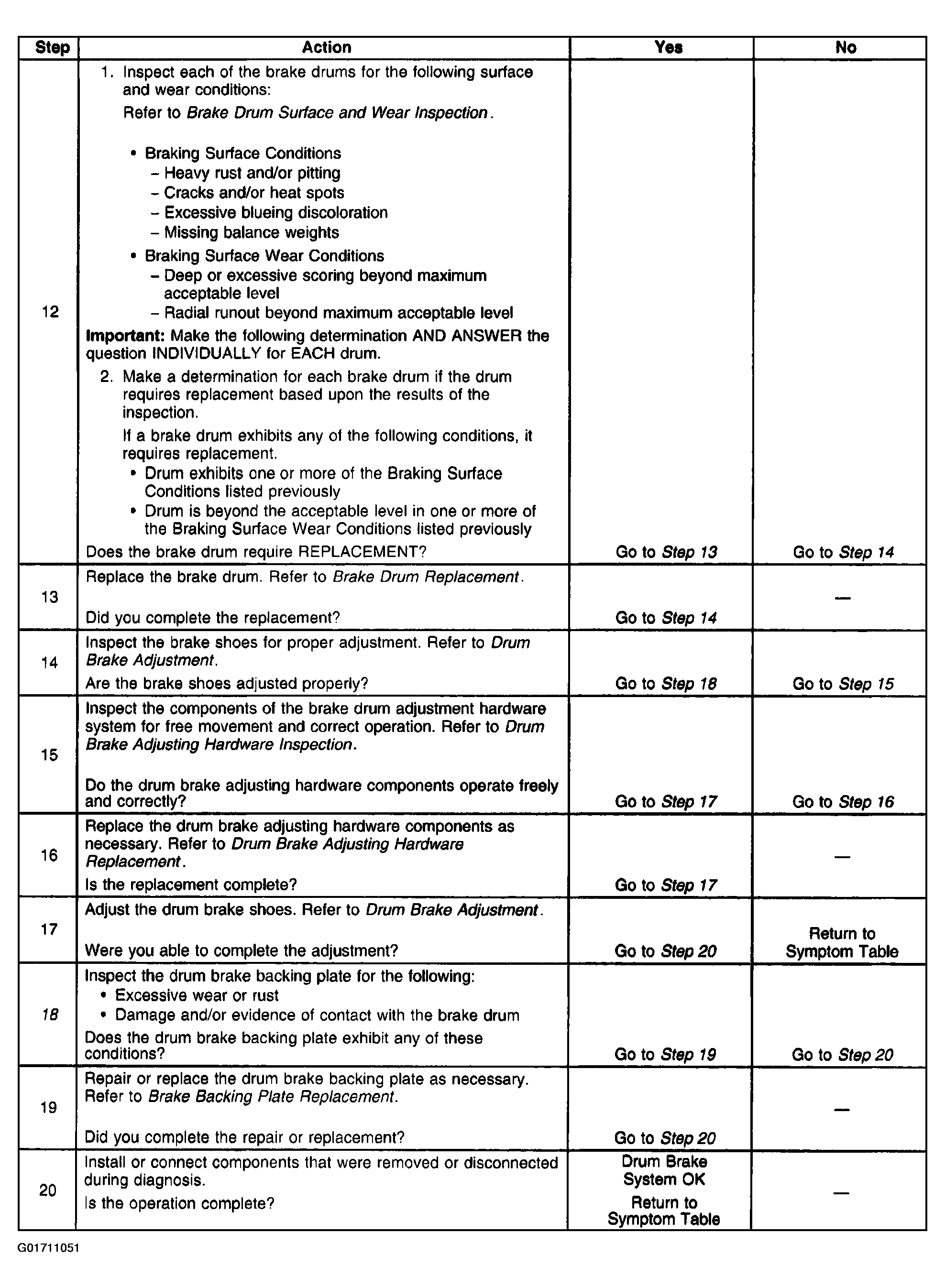

Fig 3: Drum Brake System Diagnosis (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
