Home >> Chevrolet >> 2002 >> Prizm LSi, Standard >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Hydraulic Brakes >> Diagnostic Information And Procedures >> Braking Action Uneven - Front to Rear >> Test Description

Test Description

The number below refer to the step number on the diagnostic table:

  1. 2. Suspension components that are not operating properly may cause a disturbance to the vehicle during application of the brake system.

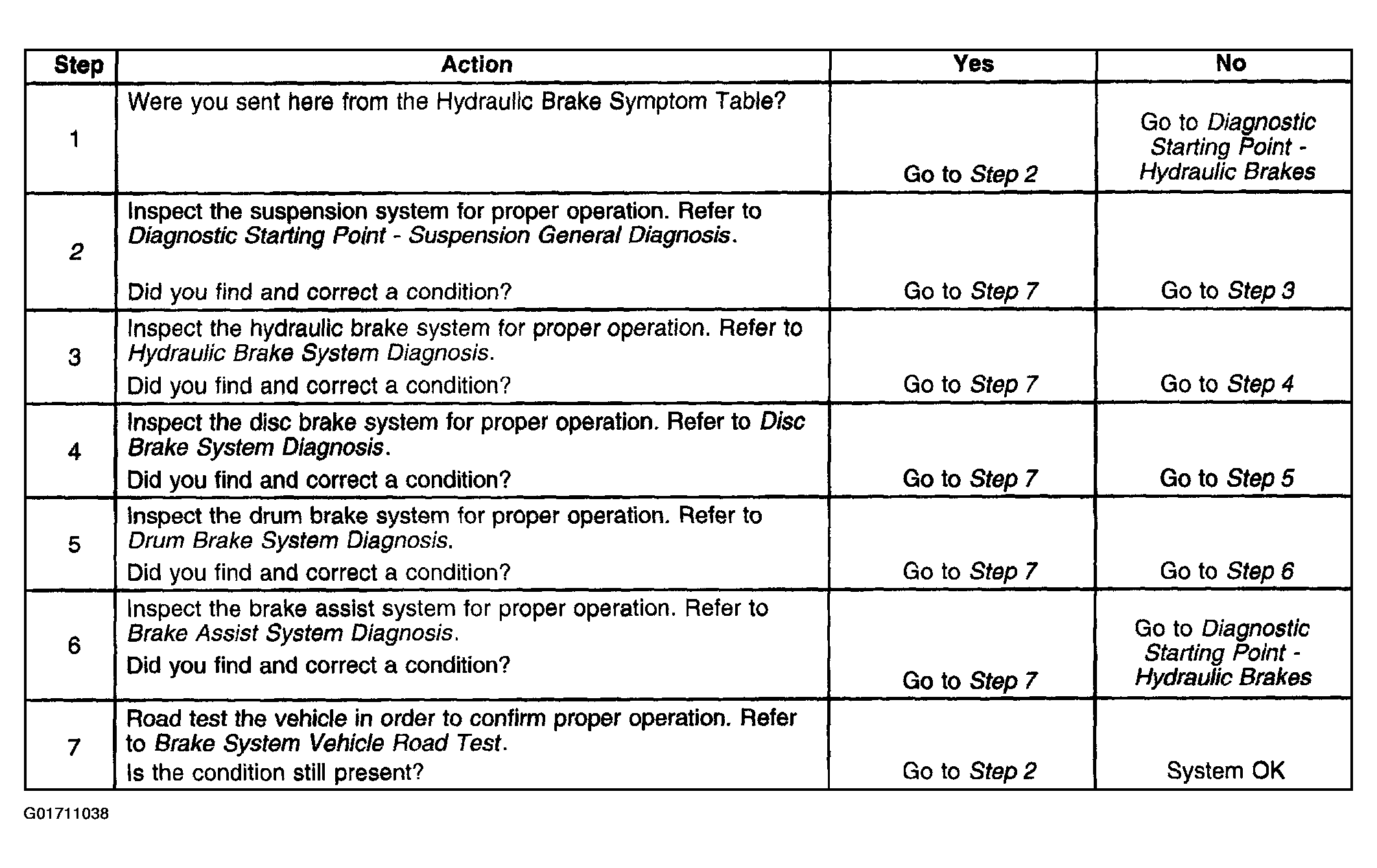

Fig 1: Braking Action Uneven - Front to Rear
G01711038Courtesy of GENERAL MOTORS CORP.
