Home >> Chevrolet >> 2002 >> Prizm LSi, Standard >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Hydraulic Brakes >> Diagnostic Information And Procedures >> Brake Warning Indicator Inoperative

Brake Warning Indicator Inoperative

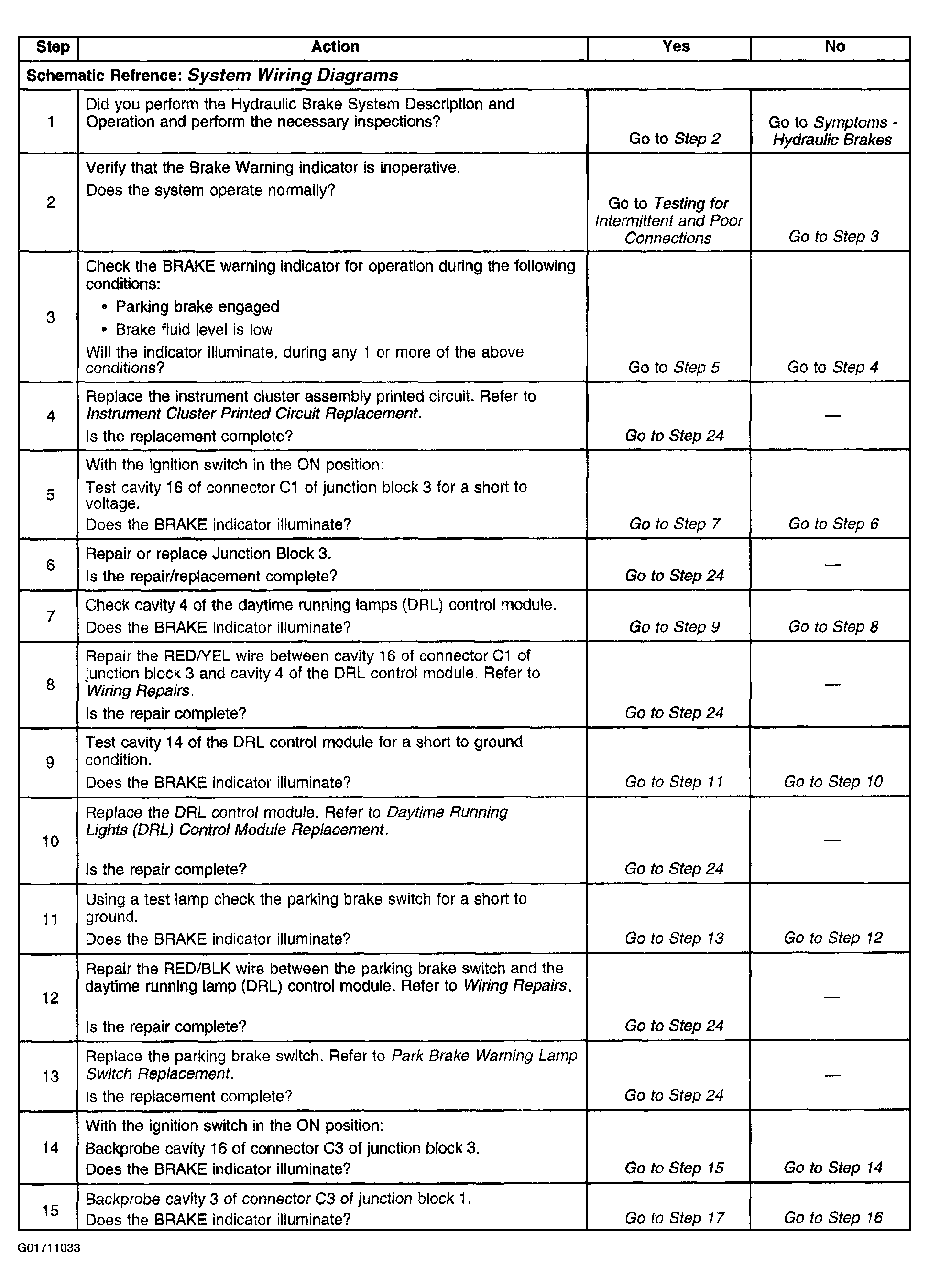

Fig 1: Brake Warning Indicator Inoperative (1 Of 2)
G01711033Courtesy of GENERAL MOTORS CORP.

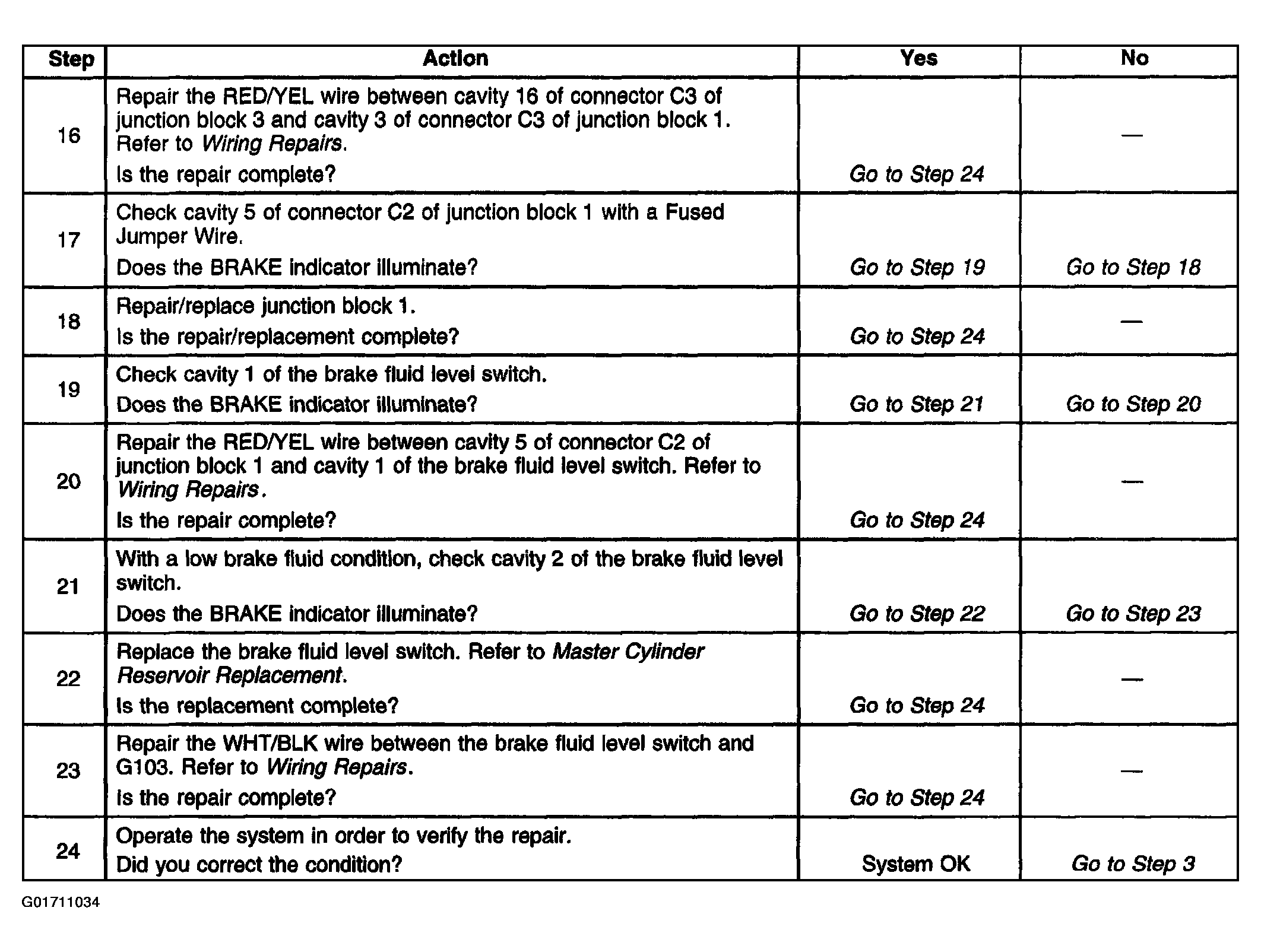

Fig 2: Brake Warning Indicator Inoperative (2 Of 2)
G01711034Courtesy of GENERAL MOTORS CORP.
