Test Description

The numbers below refer to the step numbers on the diagnostic table:

  1. 2. Suspension components that are not operating properly may cause a disturbance to the vehicle during application of the brake system.
  2. 3. Anti-lock brake system operation could produce feedback through the brake pedal during application of the brake system.

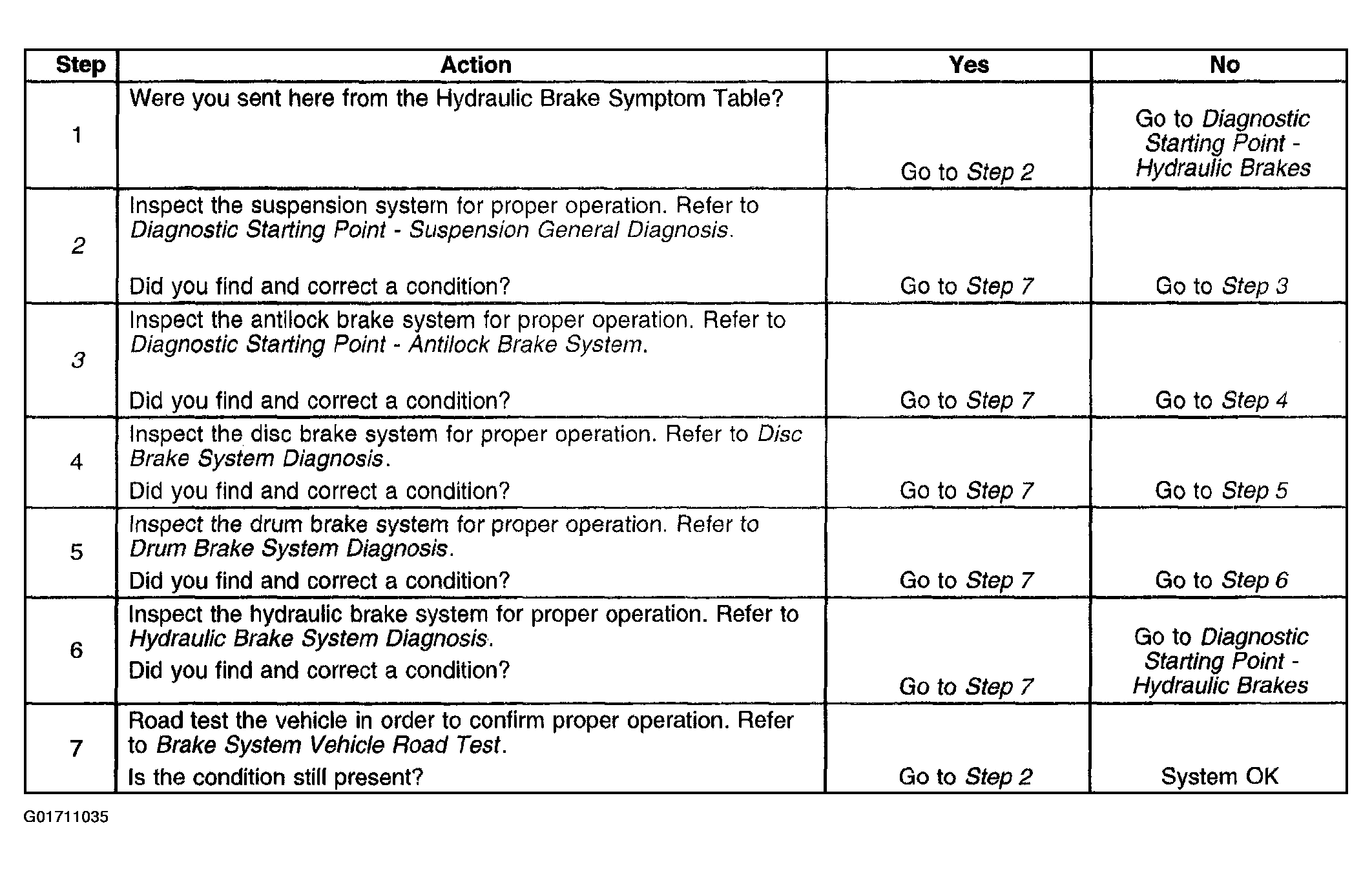

Fig 1: Brake Pulsation
G01711035Courtesy of GENERAL MOTORS CORP.
