Brake Pedal Excessive Travel
Brake Pedal Excessive Travel

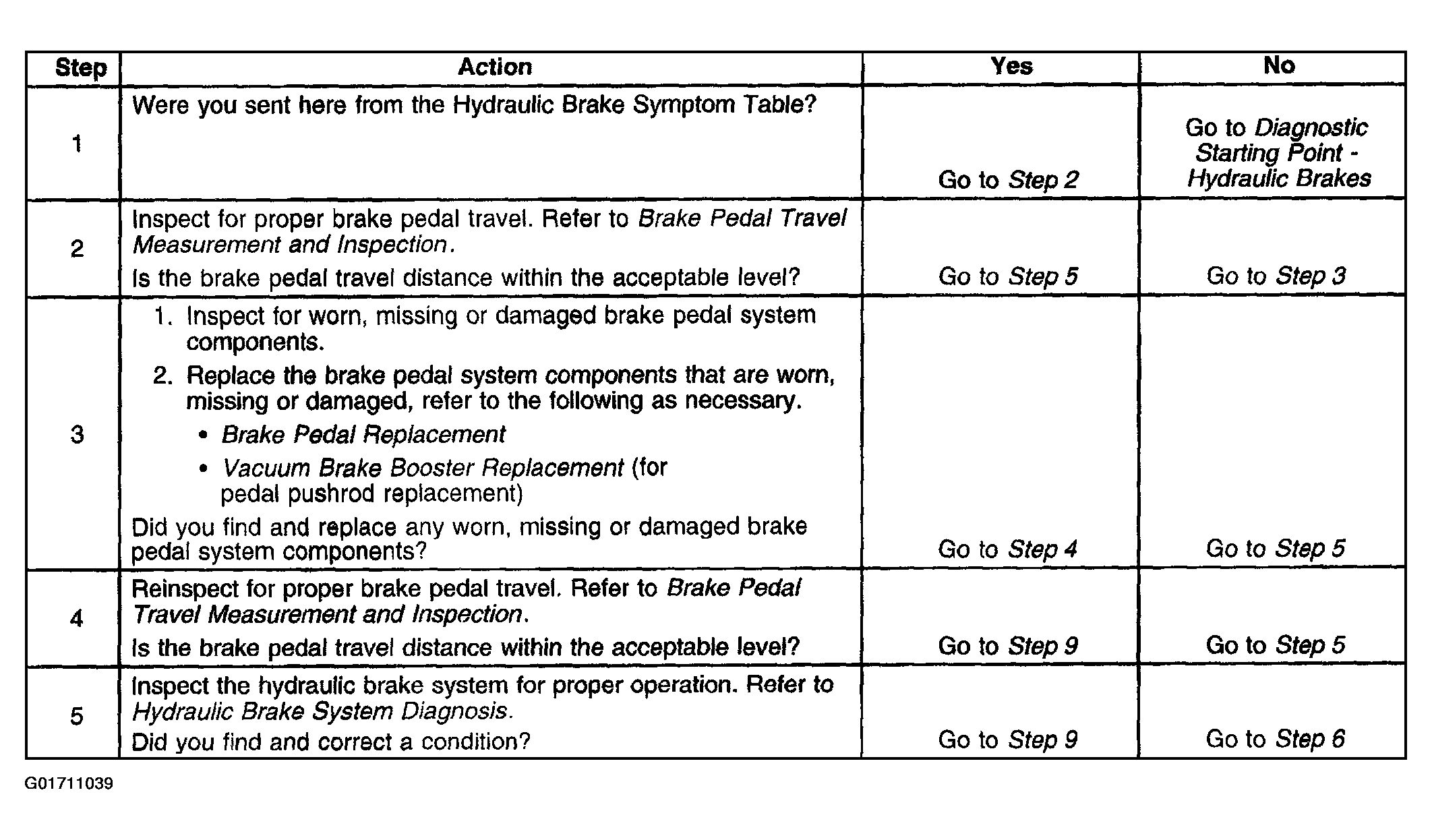

Fig 1: Brake Pedal Excessive Travel (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

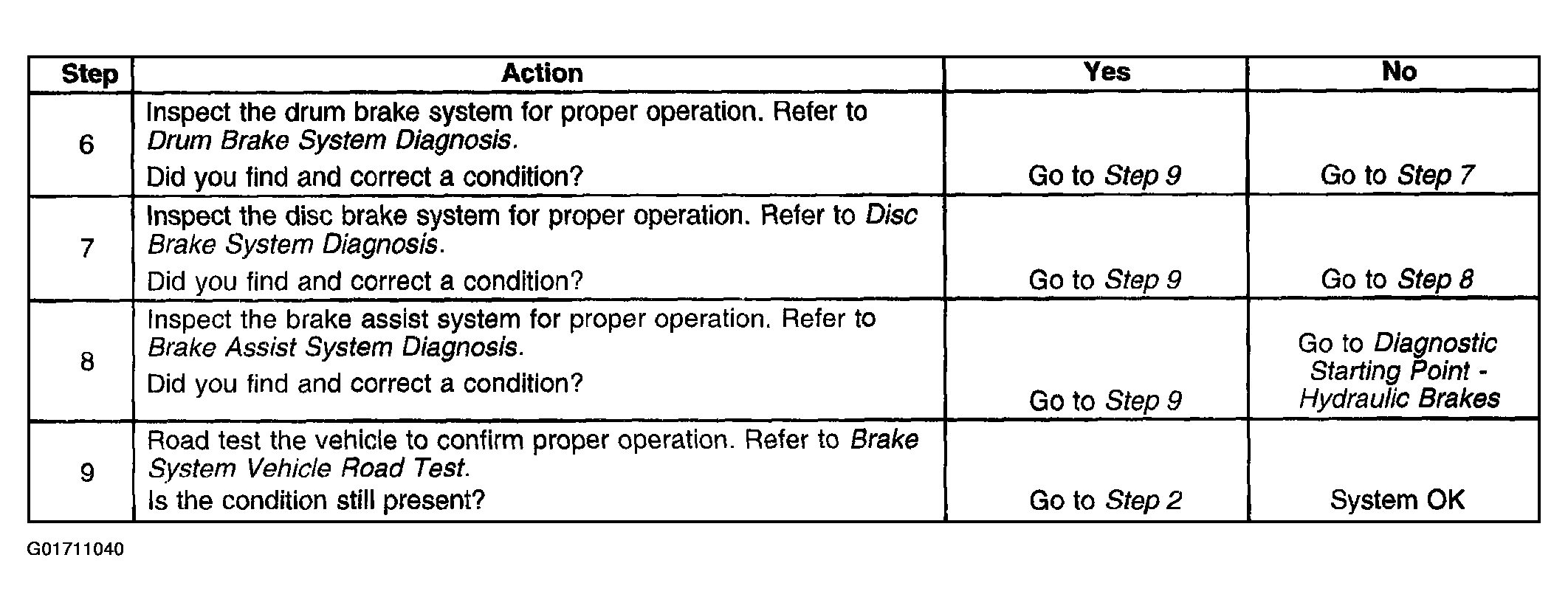

Fig 2: Brake Pedal Excessive Travel (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
