Brake Assist System Diagnosis

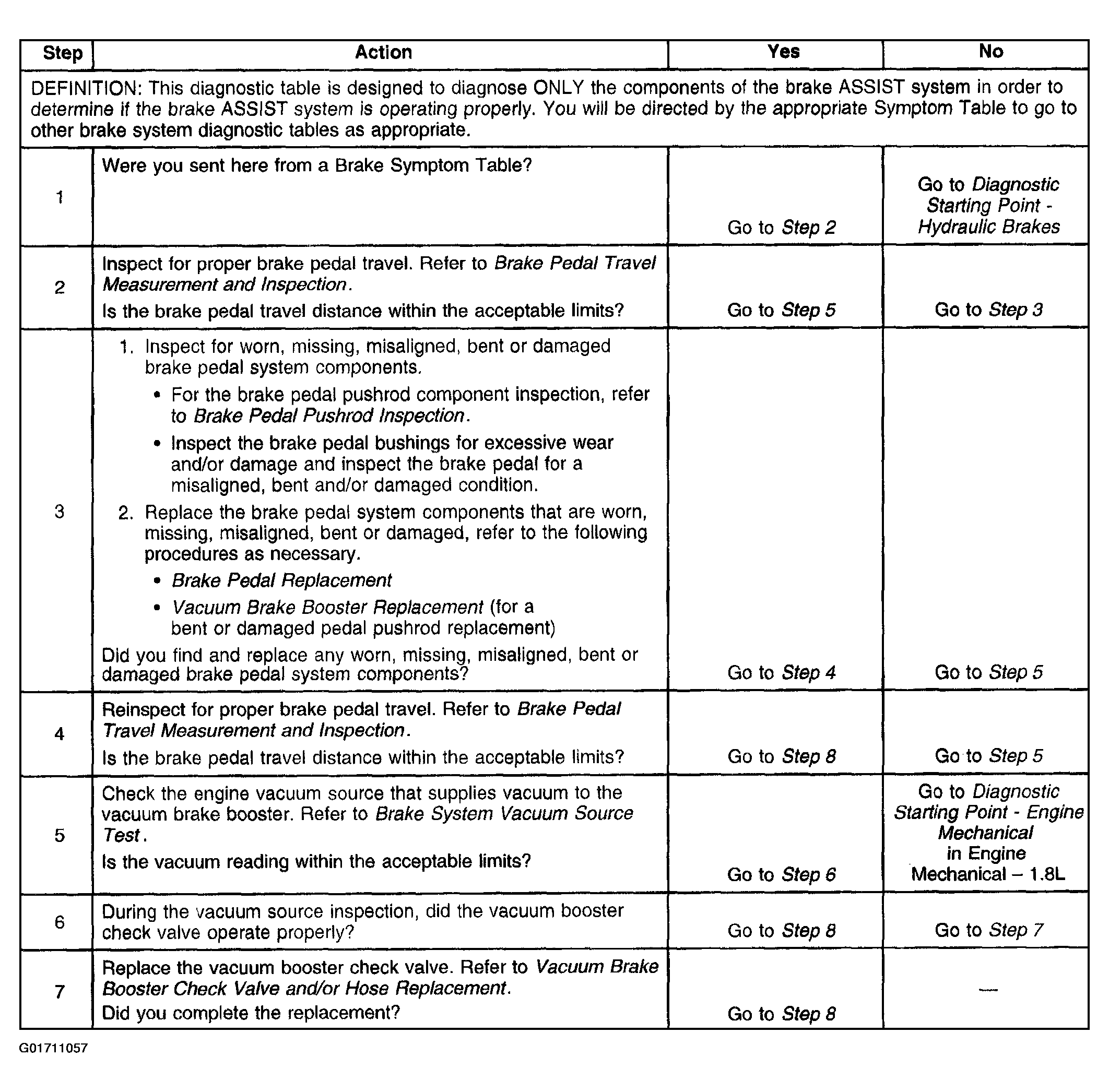

Fig 1: Brake Assist System Diagnosis (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

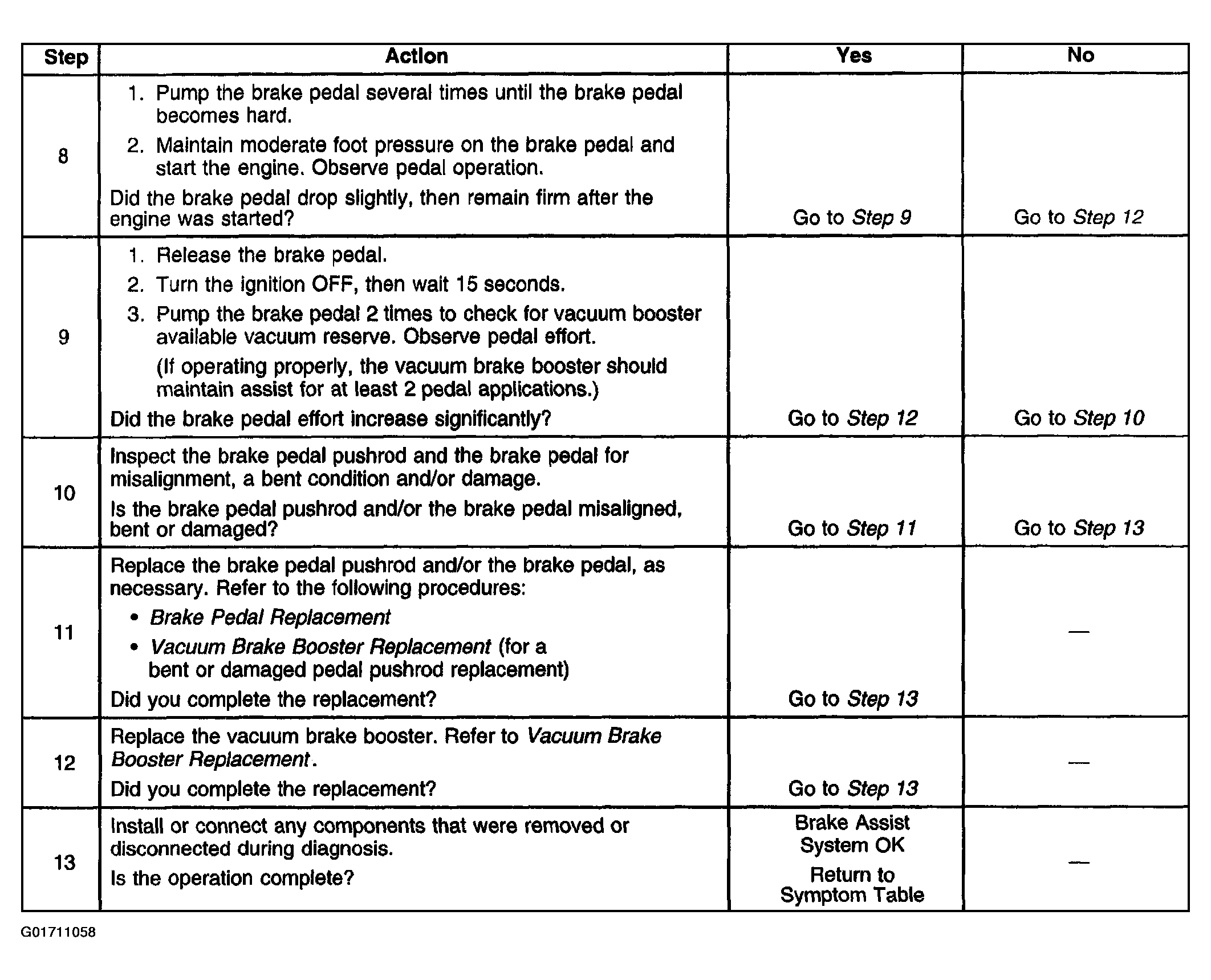

Fig 2: Brake Assist System Diagnosis (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
