Hydraulic Brakes Connector End Views

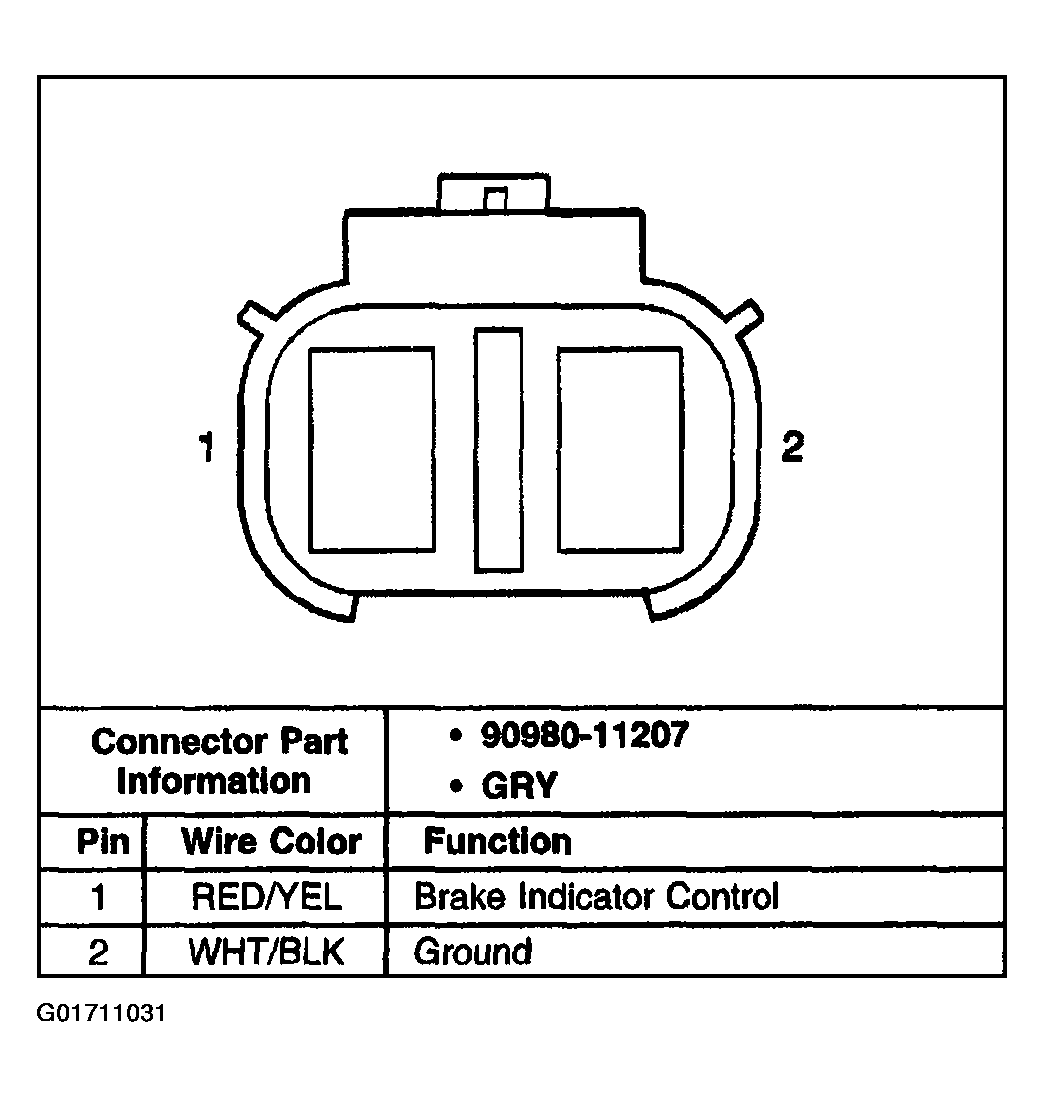

Fig 1: Brake Fluid Level Switch

G01711031

Courtesy of GENERAL MOTORS CORP.
