Hydraulic Brakes Component Views

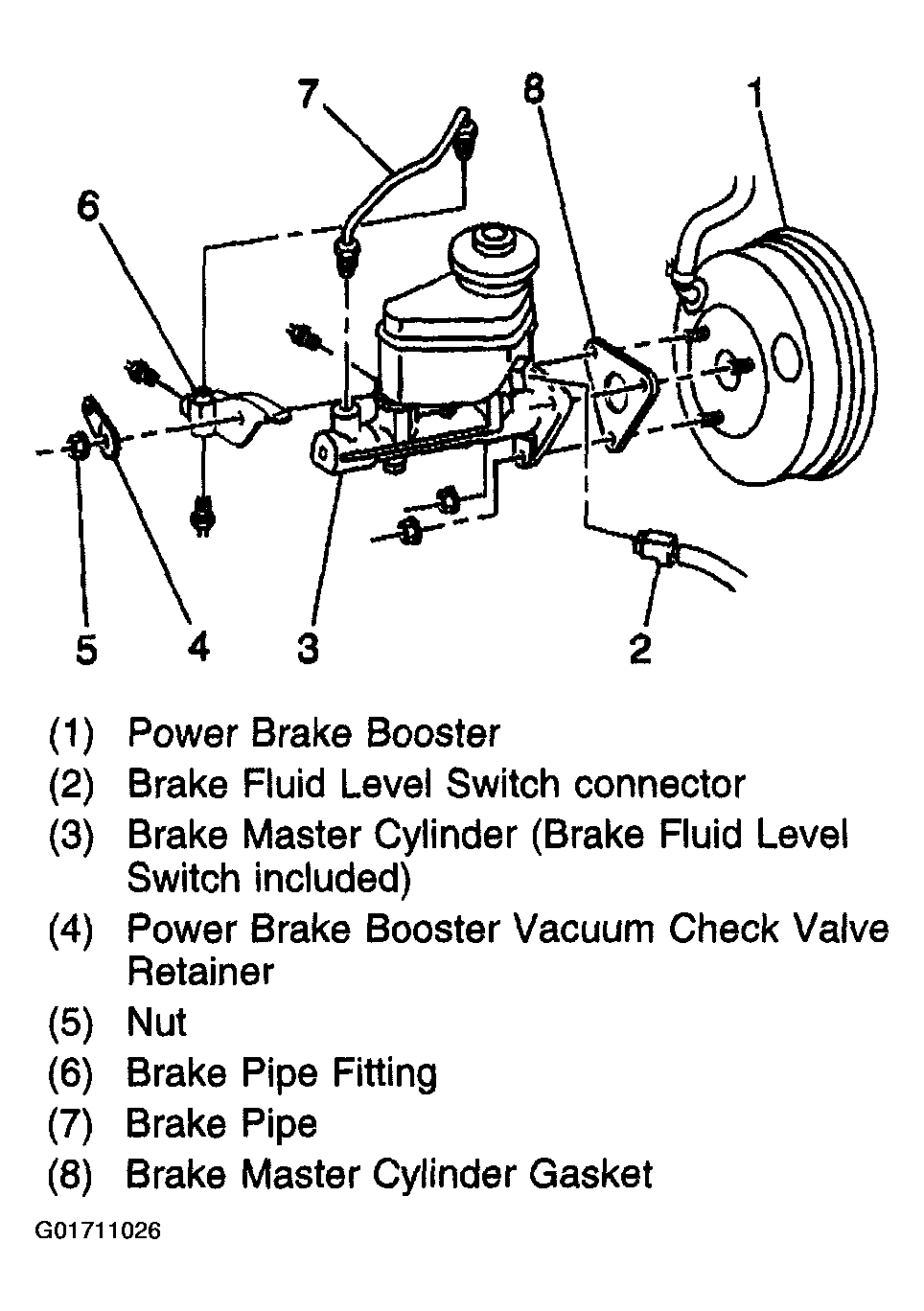

Fig 1: Brake Fluid Level Switch Without ABS
G01711026Courtesy of GENERAL MOTORS CORP.

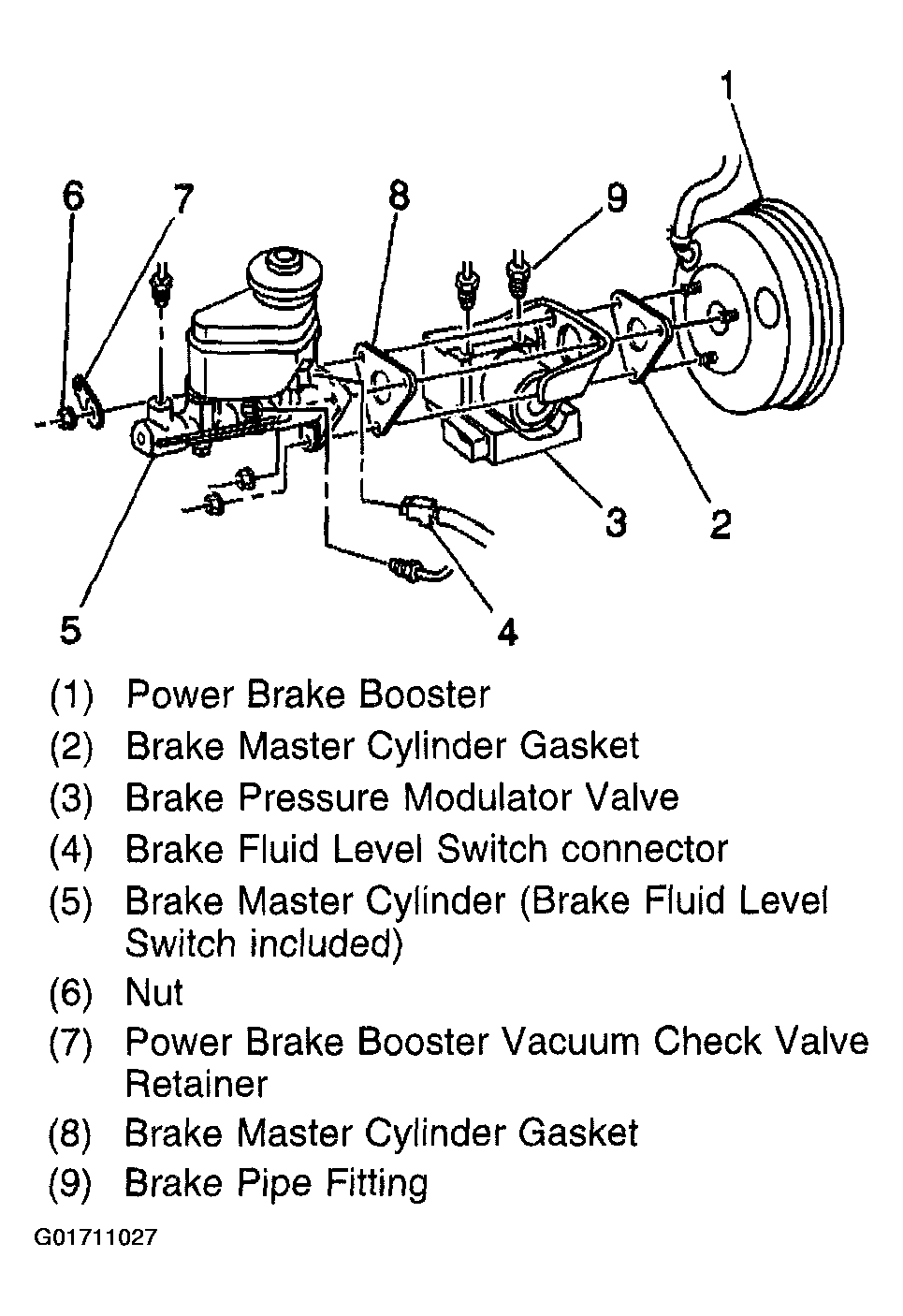

Fig 2: Brake Fluid Level Switch with ABS
G01711027Courtesy of GENERAL MOTORS CORP.

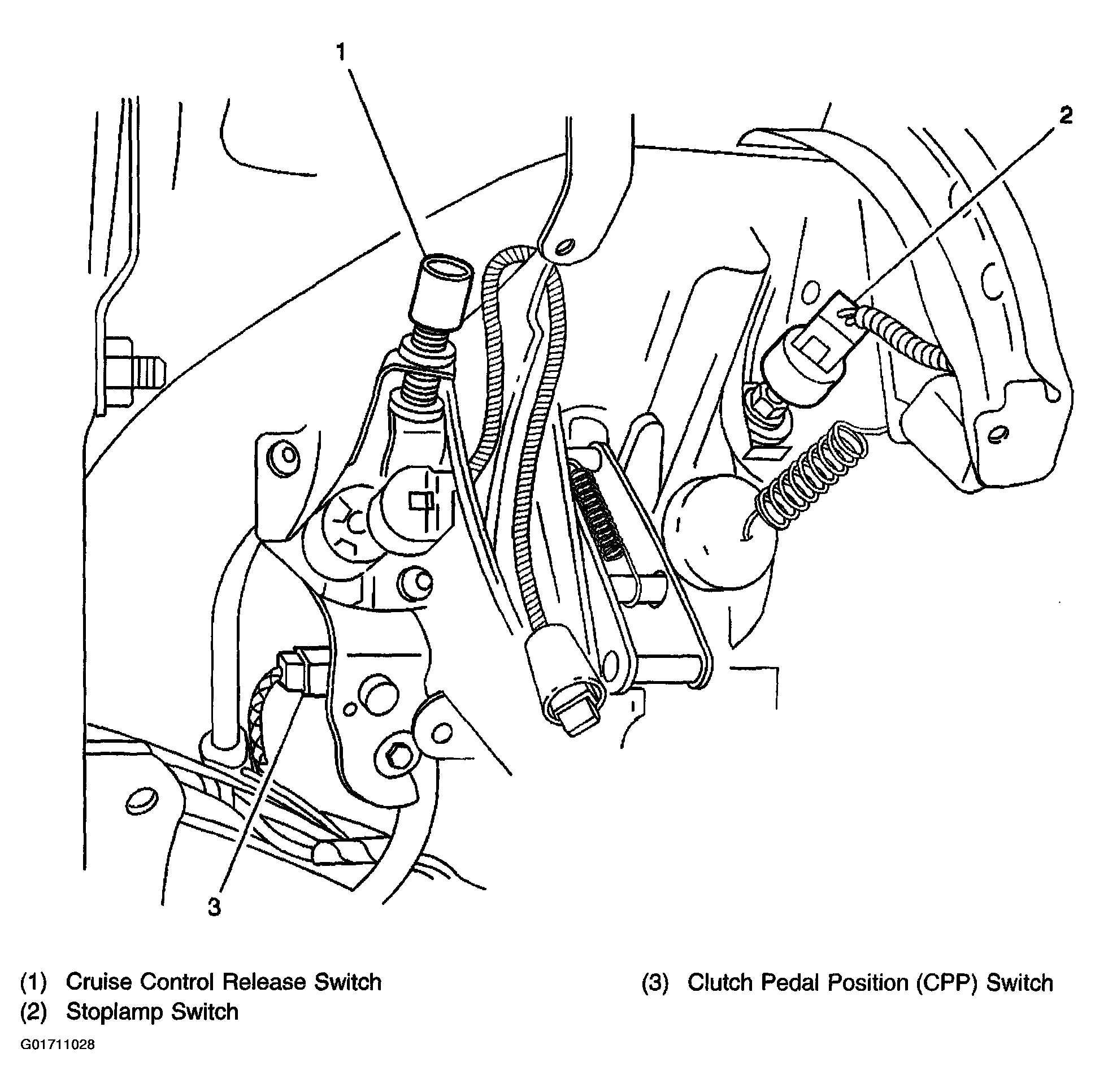

Fig 3: LH Cowl Wiring (Manual Transmission)
G01711028Courtesy of GENERAL MOTORS CORP.

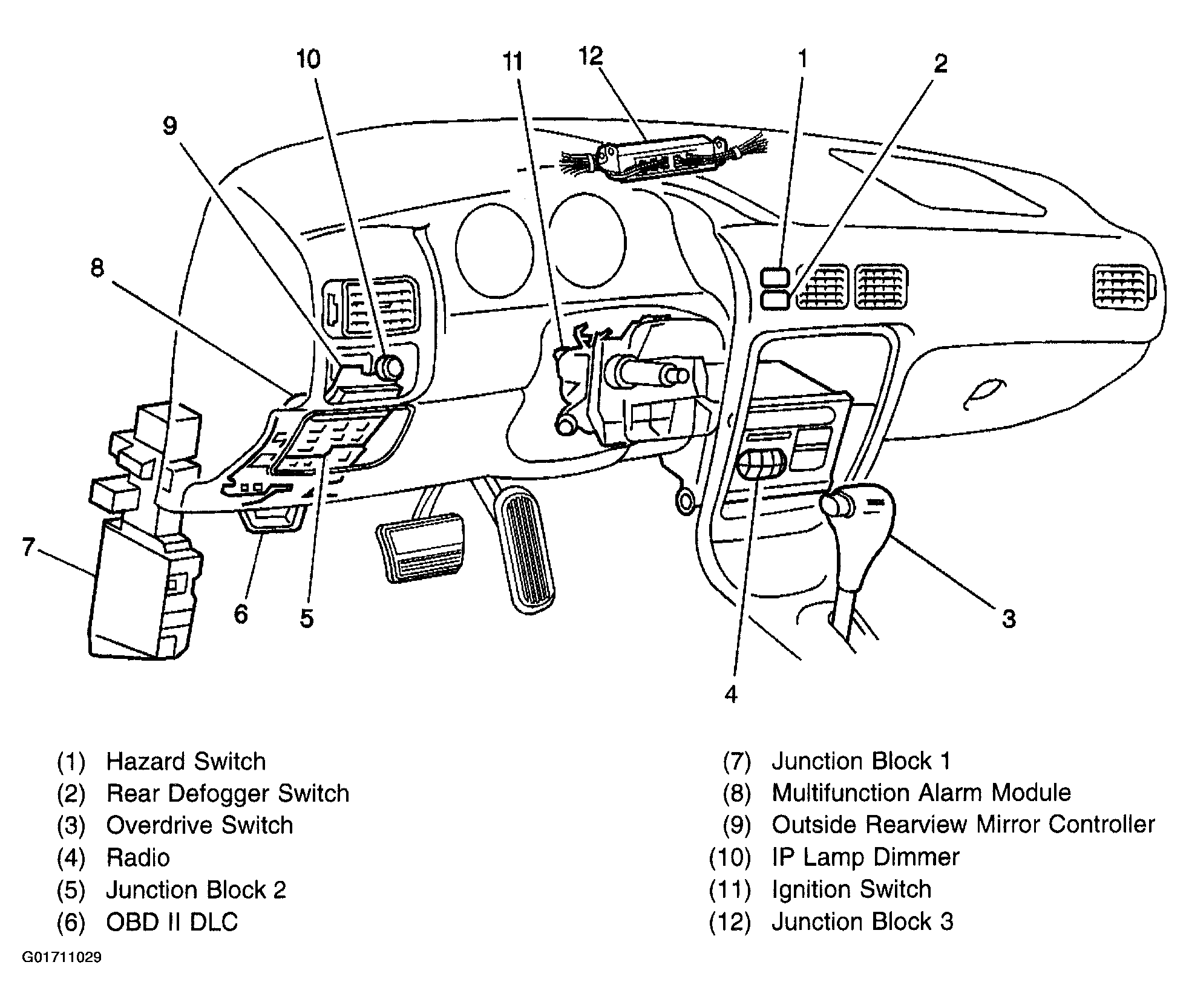

Fig 4: Instrument Panel Assembly (Left Side)
G01711029Courtesy of GENERAL MOTORS CORP.

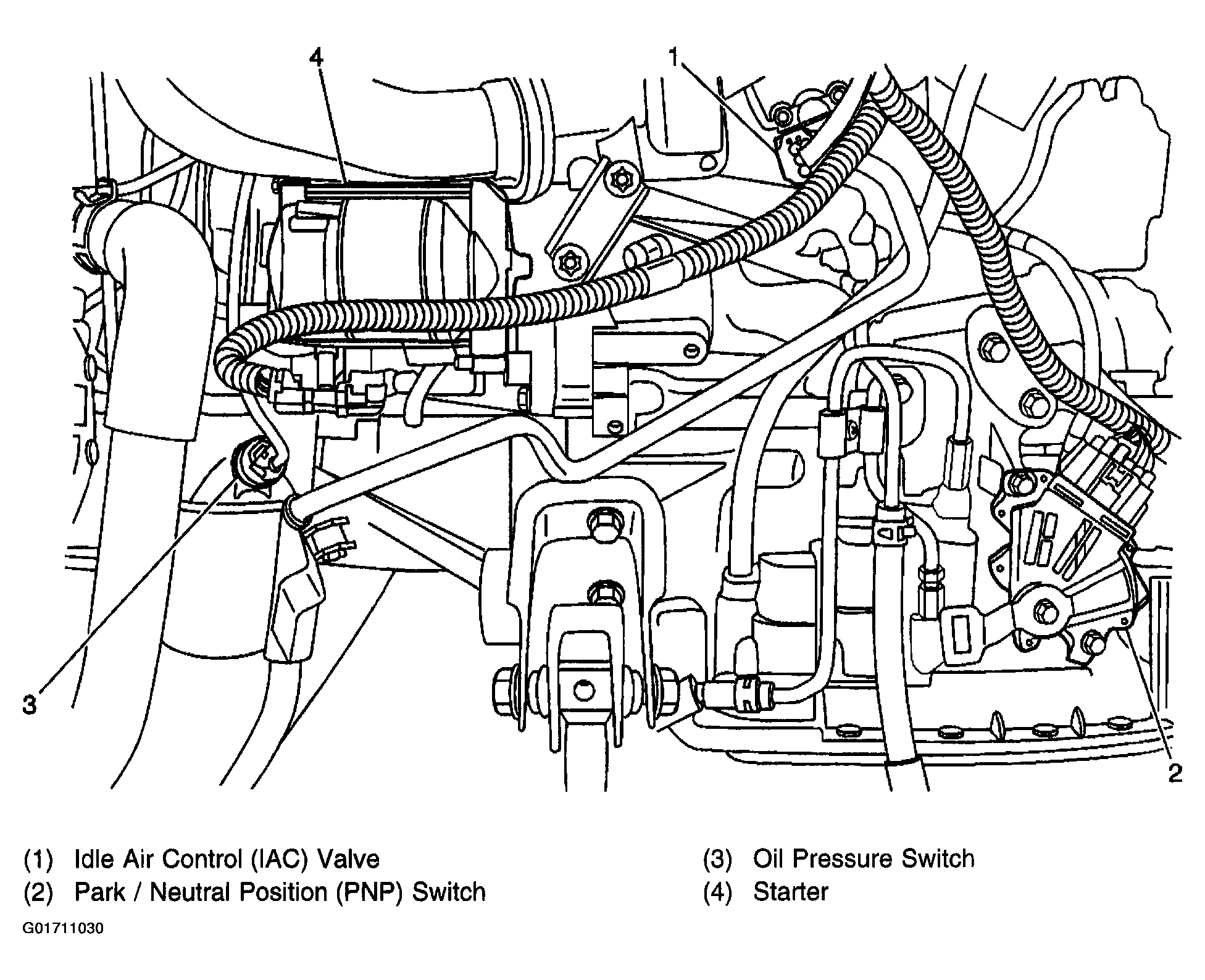

Fig 5: Left Side Engine View
G01711030Courtesy of GENERAL MOTORS CORP.
