Installation Procedure

  1. Gently install the IP cluster trim plate (2) by pressing into place until fully seated. Secure the trim plate with the 2 screws.

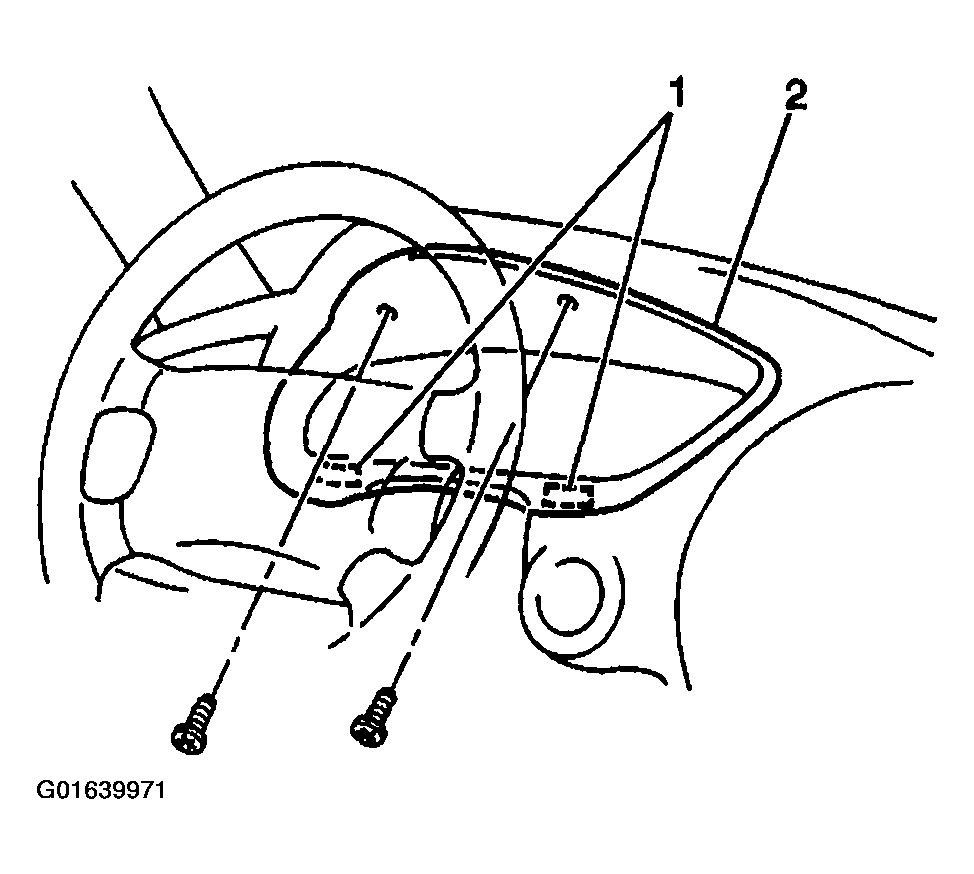

    Fig 1: Installing IP Cluster Trim Plate
    G01639971Courtesy of GENERAL MOTORS CORP.
  2. Install the steering column upper trim cover (2) to the vehicle. Secure the trim cover with the screw (3).

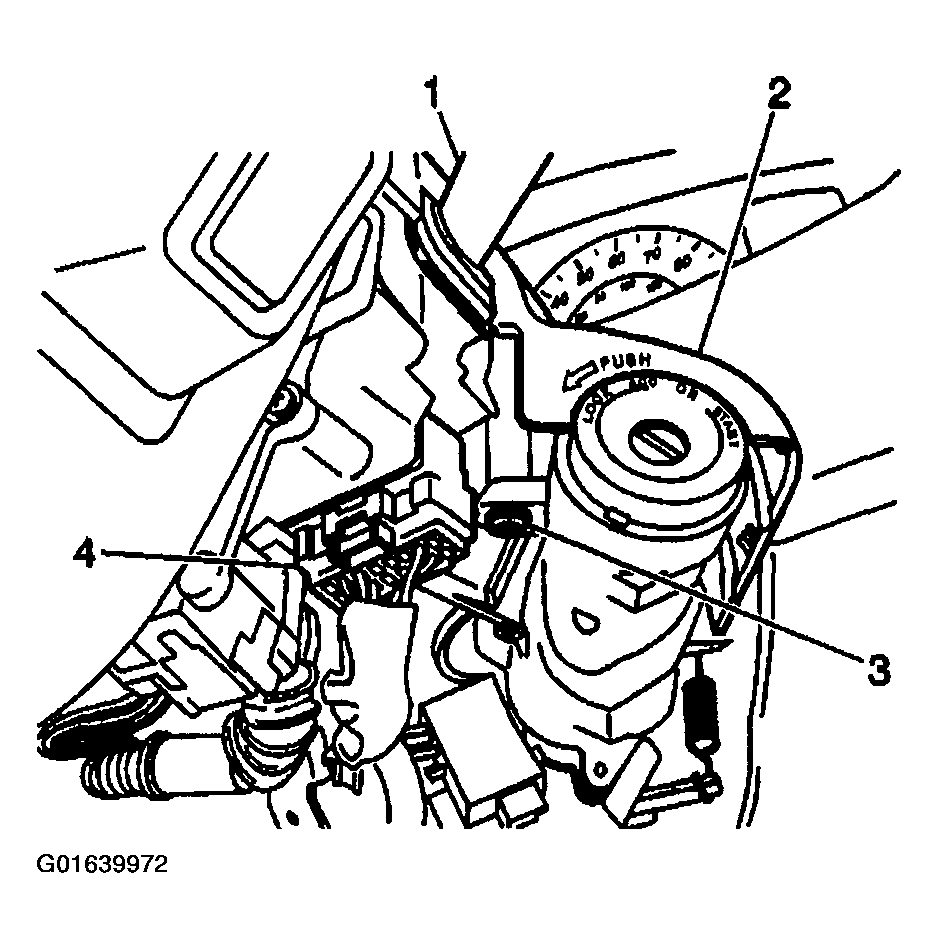

    Fig 2: Installing Steering Column Upper Trim Cover
    G01639972Courtesy of GENERAL MOTORS CORP.
  3. Install the steering column lower trim cover (6) to the vehicle. Secure the trim cover with the 3 screws.

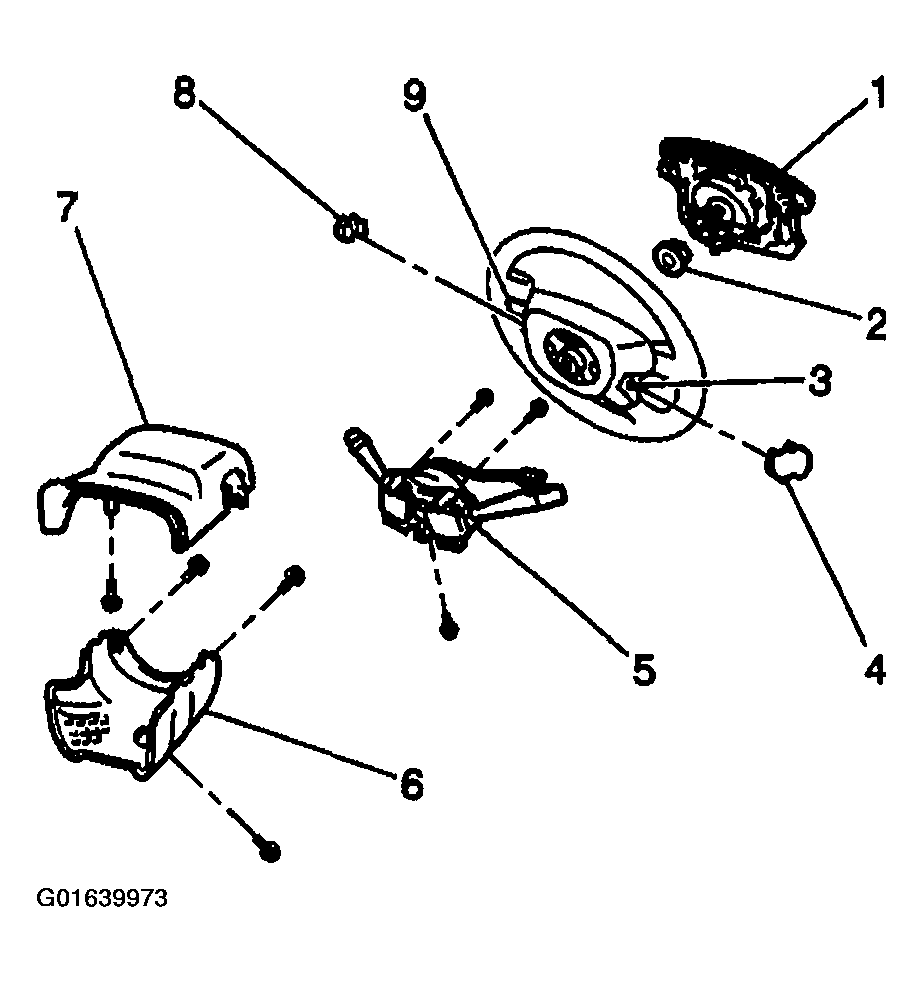

    4. Fig 3: Installing Steering Column Lower Trim Cover
    G01639973Courtesy of GENERAL MOTORS CORP.
  4. Enable the SIR System. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
