Installation Procedure

  1. Install the instrument panel ashtray housing, if removed.
  2. Install the cigar lighter assembly, if removed. Refer to Cigar Lighter Replacement .
  3. Connect the following components:
    • The 2 cigar lighter electrical connectors
    • The IP ashtray bulb socket
  4. Install the IP accessory center trim plate (1) to the IP assembly. Ensure that the retaining clips are fully engaged.

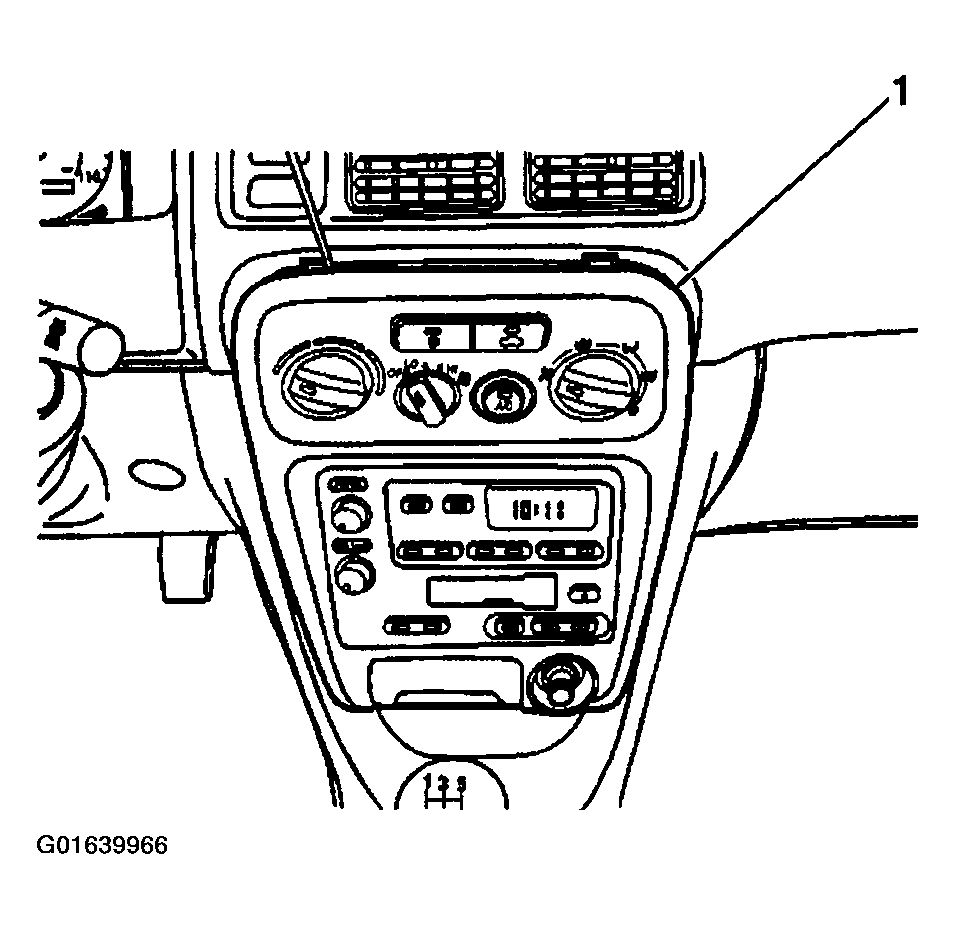

    5. Fig 1: Installing IP Accessory Center Trim Plate
    G01639966Courtesy of GENERAL MOTORS CORP.
  5. Install the instrument panel ashtray to the instrument panel ashtray housing by depressing the spring loaded tab.
