Removal Procedure

  1. Remove the speedometer (2). Refer to Speedometer Replacement .
  2. Remove the engine tachometer (1), if equipped. Refer to Tachometer Replacement .
  3. Remove the fuel gauge (3), if equipped. Refer to Fuel Gage Replacement .
  4. Remove the engine coolant temperature gauge (4), if equipped. Refer to Temperature Gage Replacement .

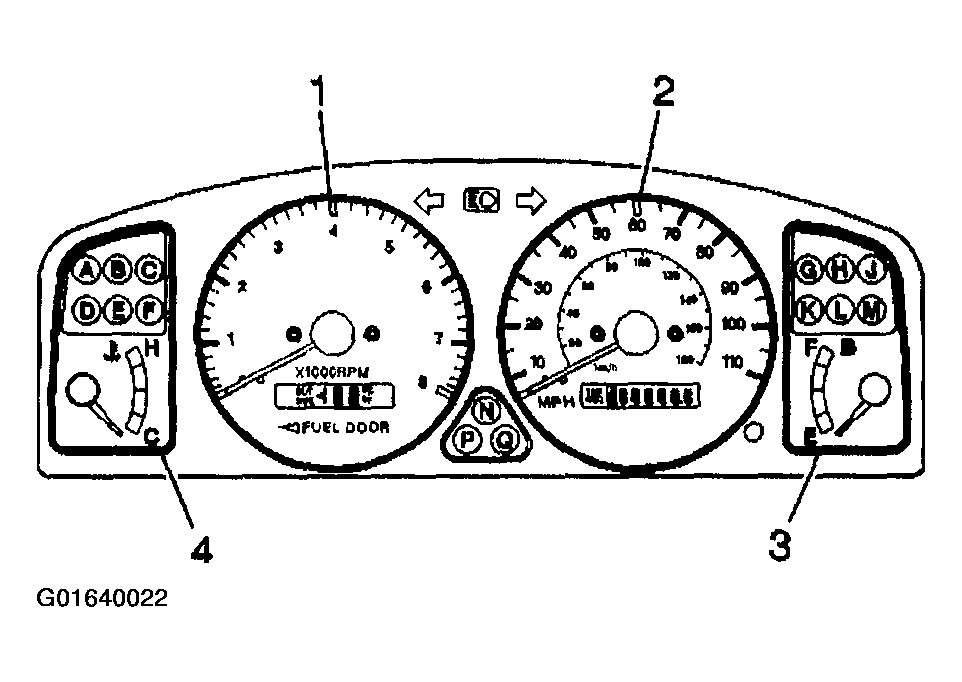

    Fig 1: Removing Speedometer, Engine Tachometer, Fuel Gauge And Engine Coolant Temperature Gauge
    G01640022Courtesy of GENERAL MOTORS CORP.
  5. Remove the fuel and temperature gauge (1), if equipped. Refer to Fuel/Temperature Gage Replacement .

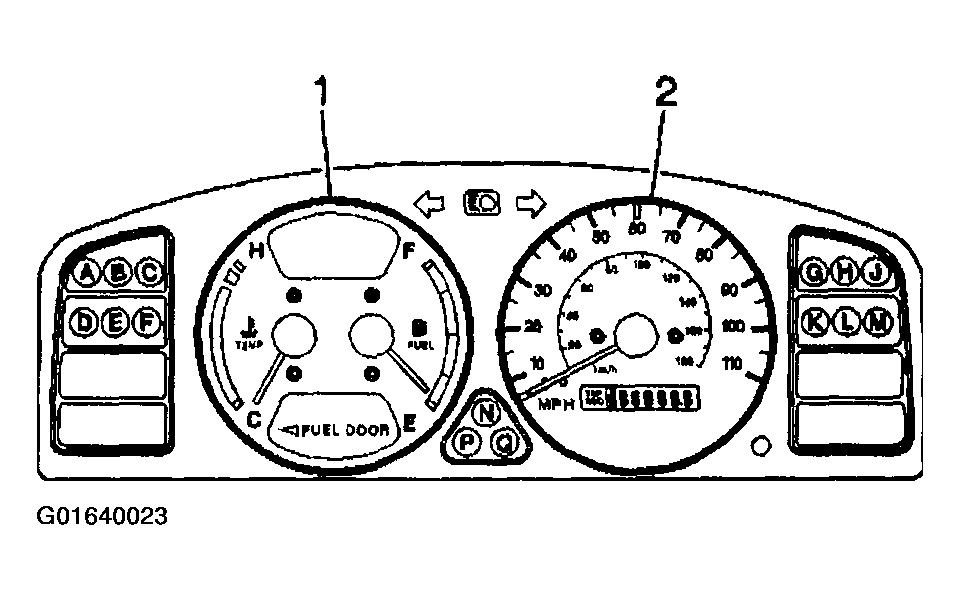

    6. Fig 2: Removing Fuel And Temperature Gauge
    G01640023Courtesy of GENERAL MOTORS CORP.
  6. Remove all of the instrument cluster bulb sockets from the cluster case.
  7. Remove the bulbs from the sockets, as necessary.
  8. Remove the following relays from the cluster case:
    • Electronic Brake Control Indicator Lamp
    • Instrument Cluster Bulb Check
  9. Remove the printed instrument cluster circuit from the instrument cluster case.
