Installation Procedure

  1. Install the bulb to the socket (1).
  2. Install the instrument cluster bulb socket (1) to the instrument cluster case by turning in a clockwise direction.
  3. Install the instrument cluster retainer. Refer to BEZEL REPLACEMENT - IP Cluster

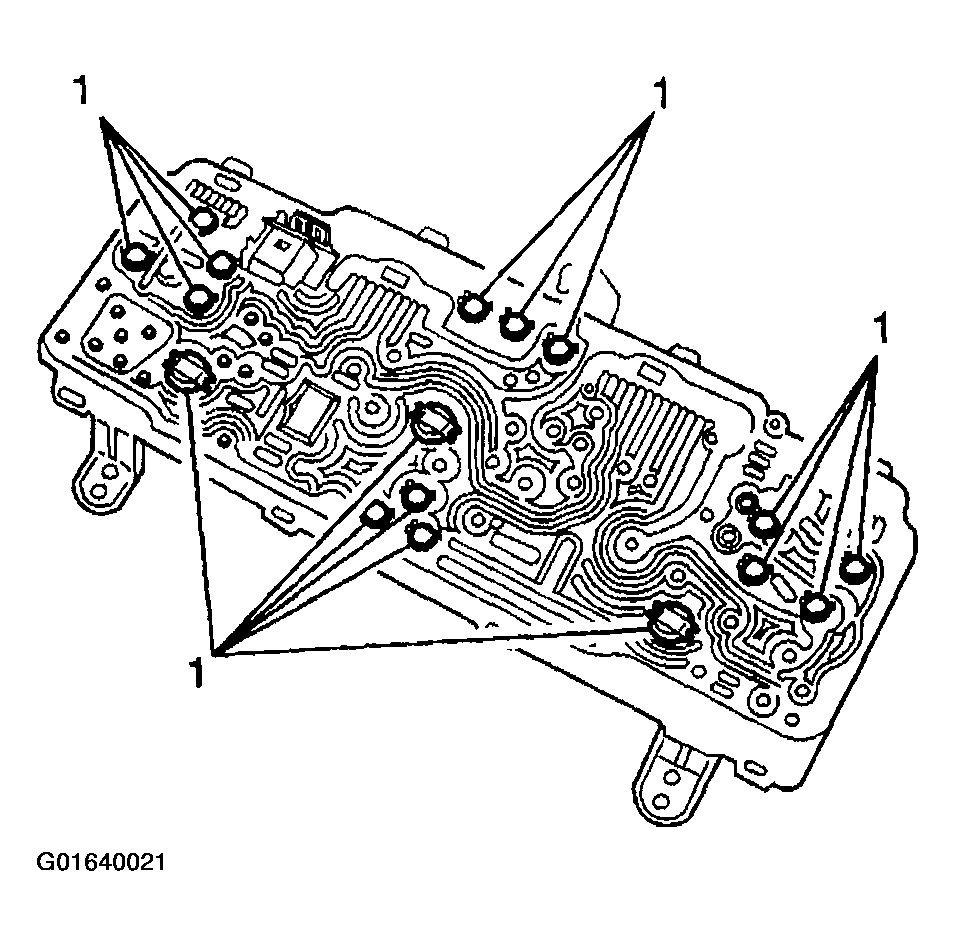

    Fig 1: Installing Bulb To Socket
    G01640021Courtesy of GENERAL MOTORS CORP.
