Installation Procedure

  1. Install the hazard warning switch to the hazard warning switch trim plate (2). Ensure that the retaining tabs are fully engaged.
  2. Connect the hazard warning switch electrical connector (1).

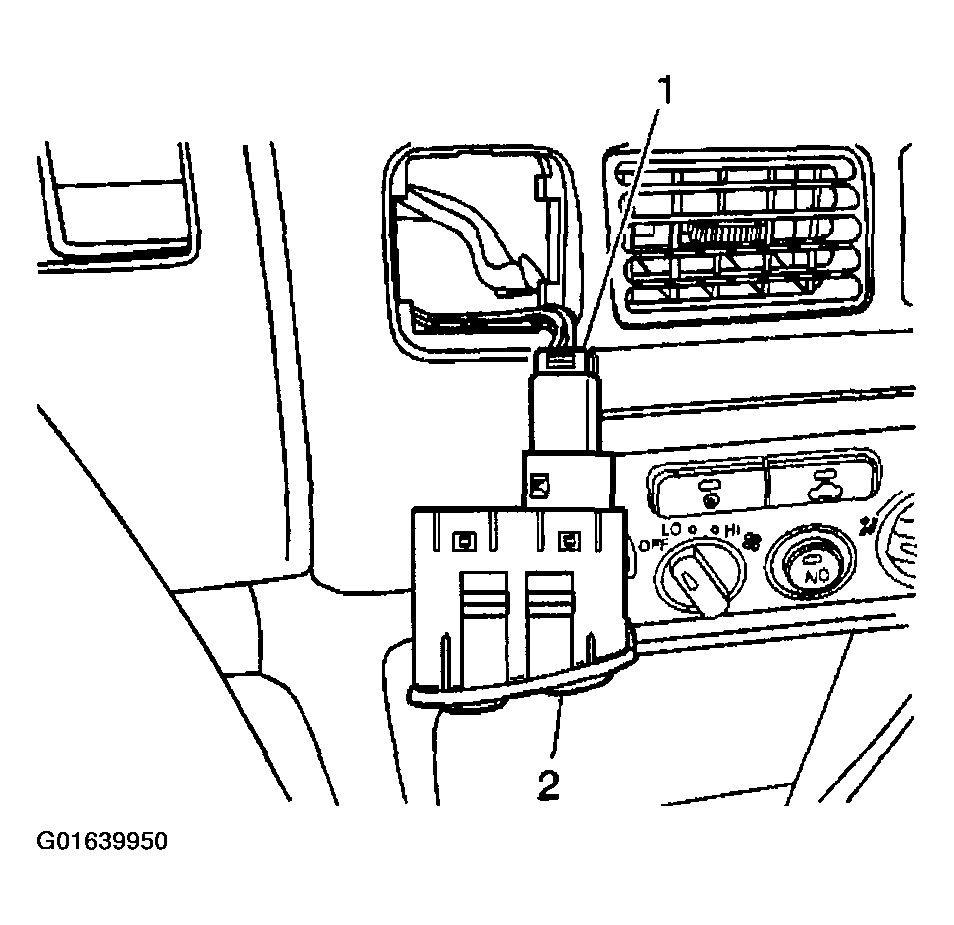

    3. Fig 1: Connecting Hazard Warning Switch Electrical Connector
    G01639950Courtesy of GENERAL MOTORS CORP.
  3. Install the hazard warning switch trim plate (2) to the IP. Ensure that the retaining clips are fully engaged.
