Removal Procedure

  1. Remove the instrument cluster retainer. Refer to BEZEL REPLACEMENT - IP Cluster .

    Important:  Do not remove the needle from the fuel or temperature gauge. There are no detent or flat spot on the shafts in order to indicate the correct placement.

  2. Remove the 6 screws (2) which secure the fuel and temperature gauge to the instrument cluster case.

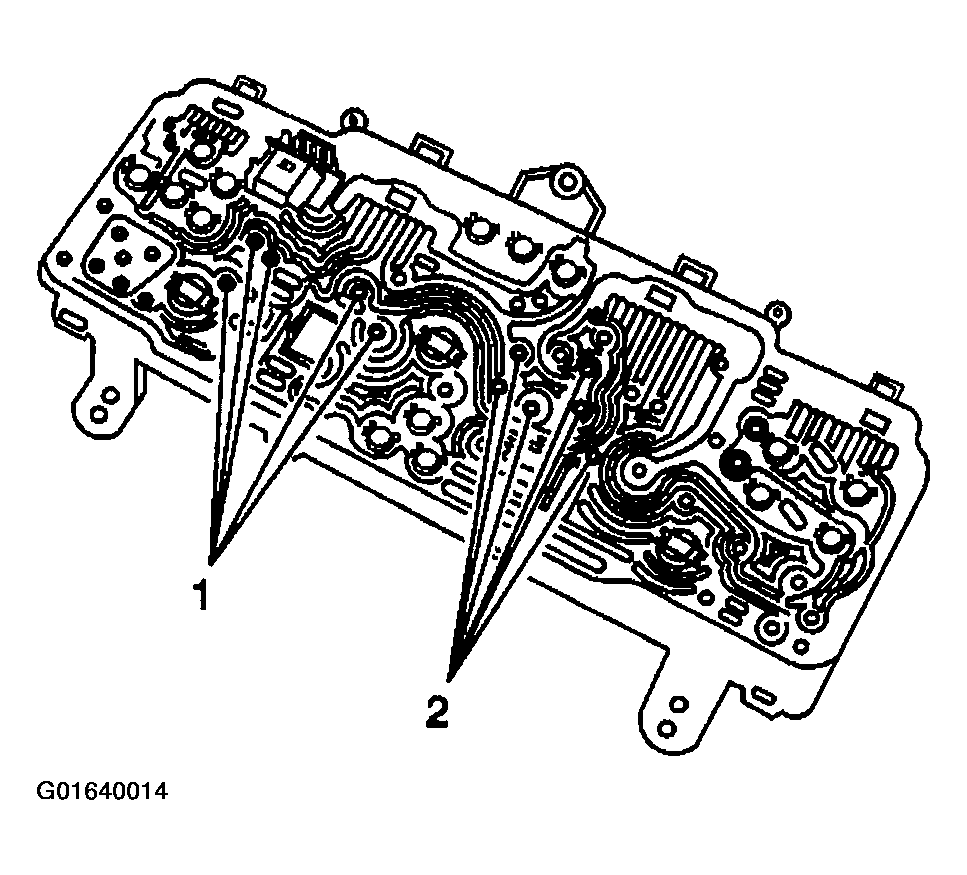

    Fig 1: Removing 6 Screws Which Securing Fuel Temperature Gauge
    G01640014Courtesy of GENERAL MOTORS CORP.
  3. Remove the fuel and temperature gauge (1) from the instrument cluster case.

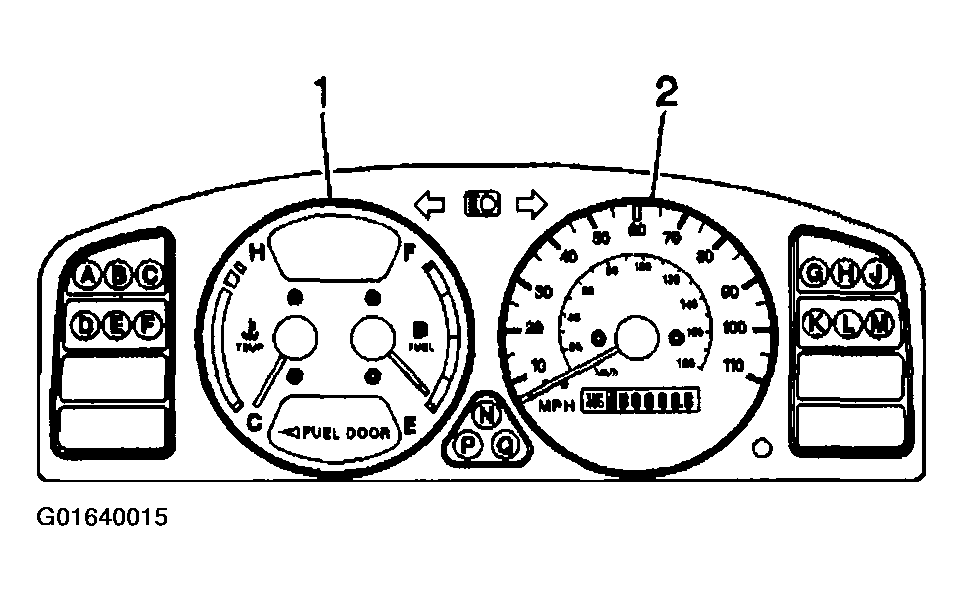

    Fig 2: Removing Fuel And Temperature Gauge From Instrument Cluster Case
    G01640015Courtesy of GENERAL MOTORS CORP.
