Installation Procedure

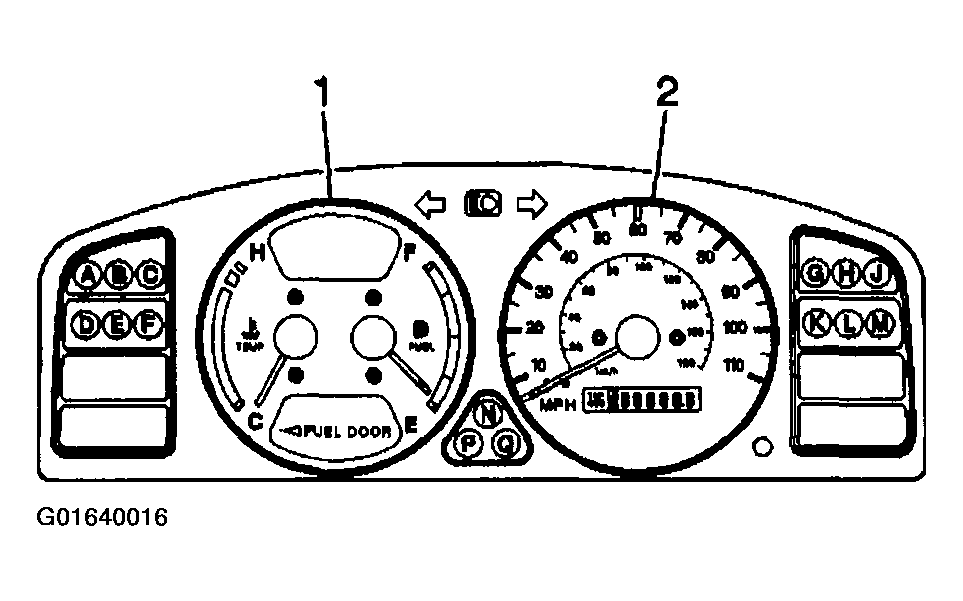

  1. Install the fuel and temperature gauge (1) to the instrument cluster case.
    Fig 1: Installing Fuel And Temperature Gauge To Instrument Cluster Case
    G01640016Courtesy of GENERAL MOTORS CORP.

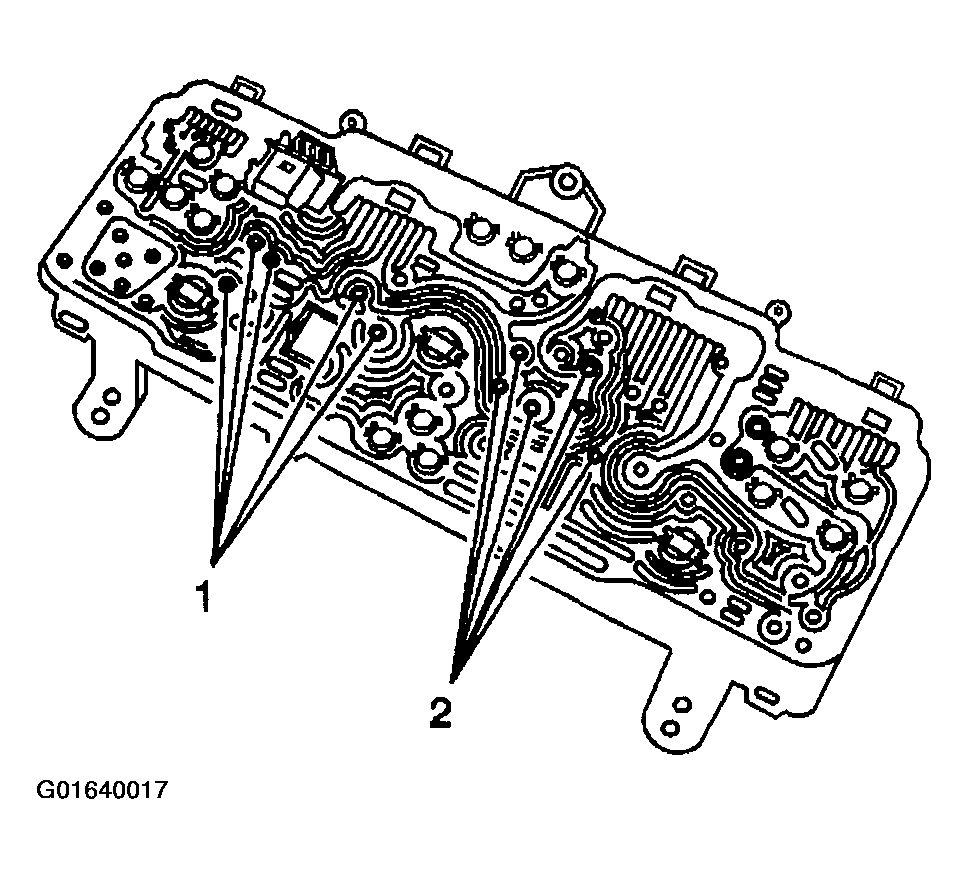

  2. Secure the fuel and temperature gauge with the 6 screws (2).
    3. Fig 2: Securing Fuel And Temperature Gauge With 6 Screws
    G01640017Courtesy of GENERAL MOTORS CORP.
  3. Install the instrument cluster retainer. Refer to BEZEL REPLACEMENT - IP Cluster .
