Installation Procedure

  1. Install the fuel gauge (3) to the instrument cluster case.
    Fig 1: Installing Fuel Gauge To Instrument Cluster Case
    G01640004Courtesy of GENERAL MOTORS CORP.
  2. Secure the fuel gauge with the 3 screws (1).
  3. Install the instrument cluster retainer. Refer to BEZEL REPLACEMENT - IP Cluster .

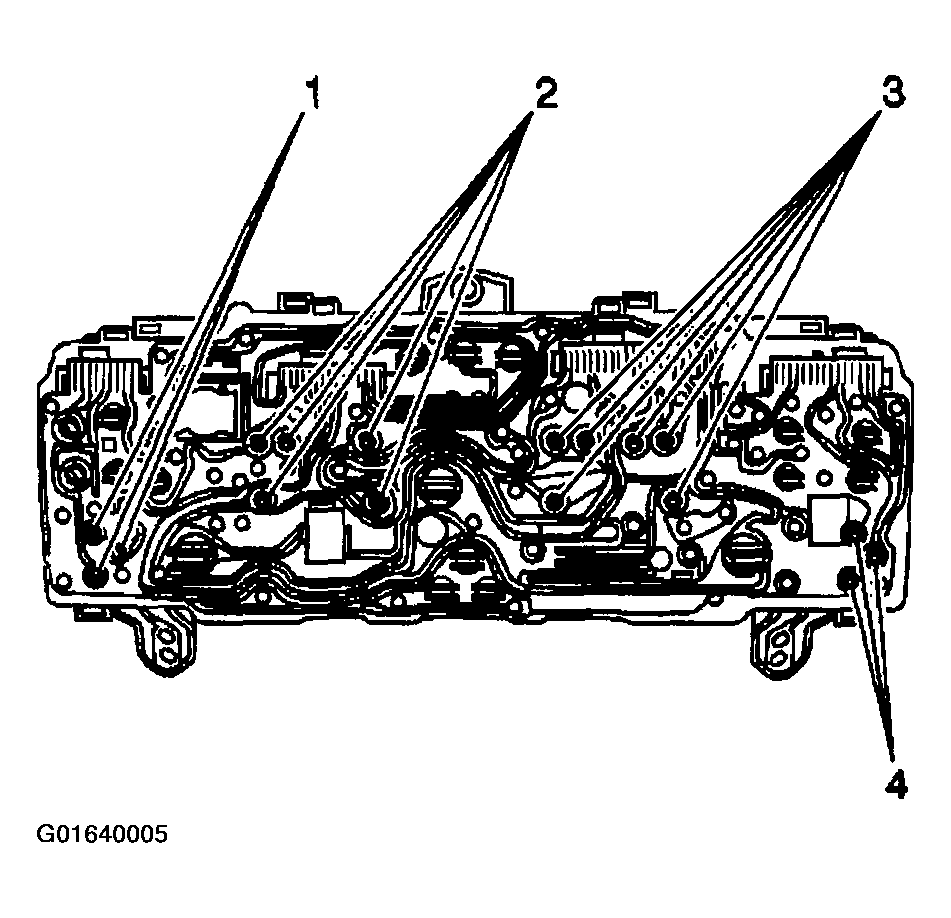

    Fig 2: Securing Fuel Gauge With 3 Screws
    G01640005Courtesy of GENERAL MOTORS CORP.
