Installation Procedure

Install the front floor rear console (1) to the vehicle.

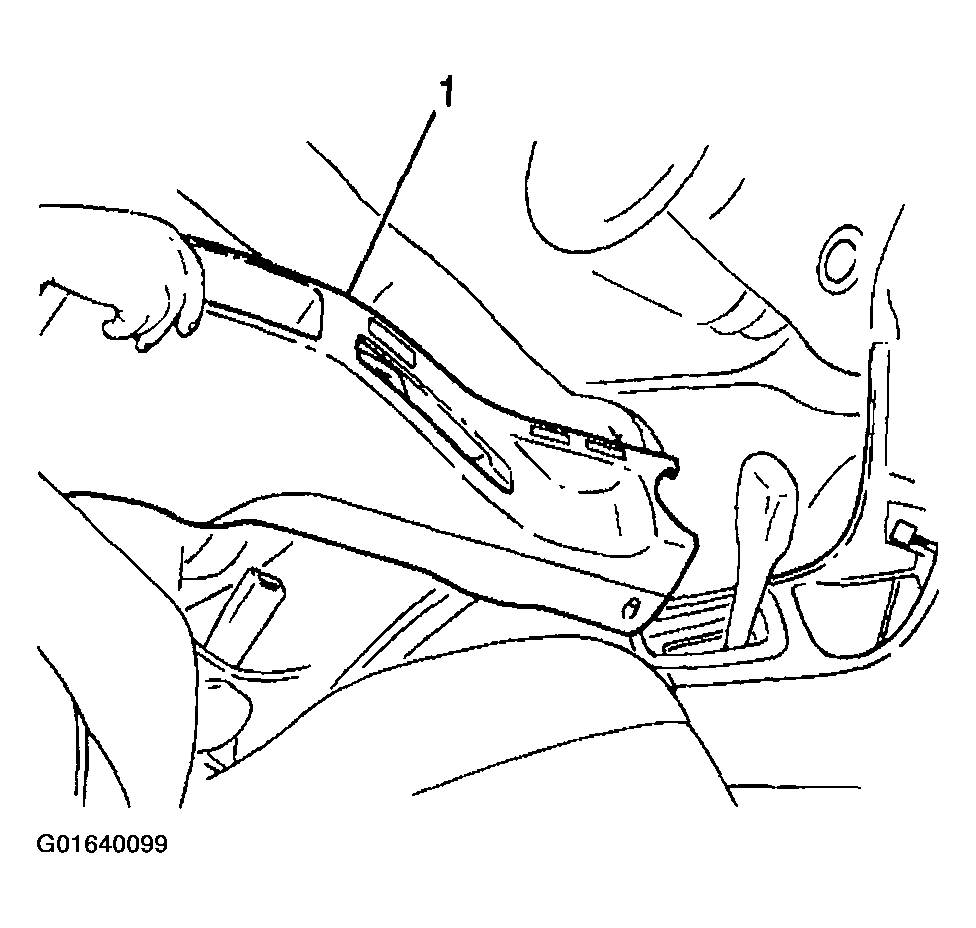

Fig 1: Installing Front Floor Rear Console
Courtesy of GENERAL MOTORS CORP.
Lower the parking brake lever.
NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
Install the 2 bolts (1) to the rear compartment of the rear console.
Tighten

Tighten the front floor rear console bolts to 15 N.m (11 lb in).

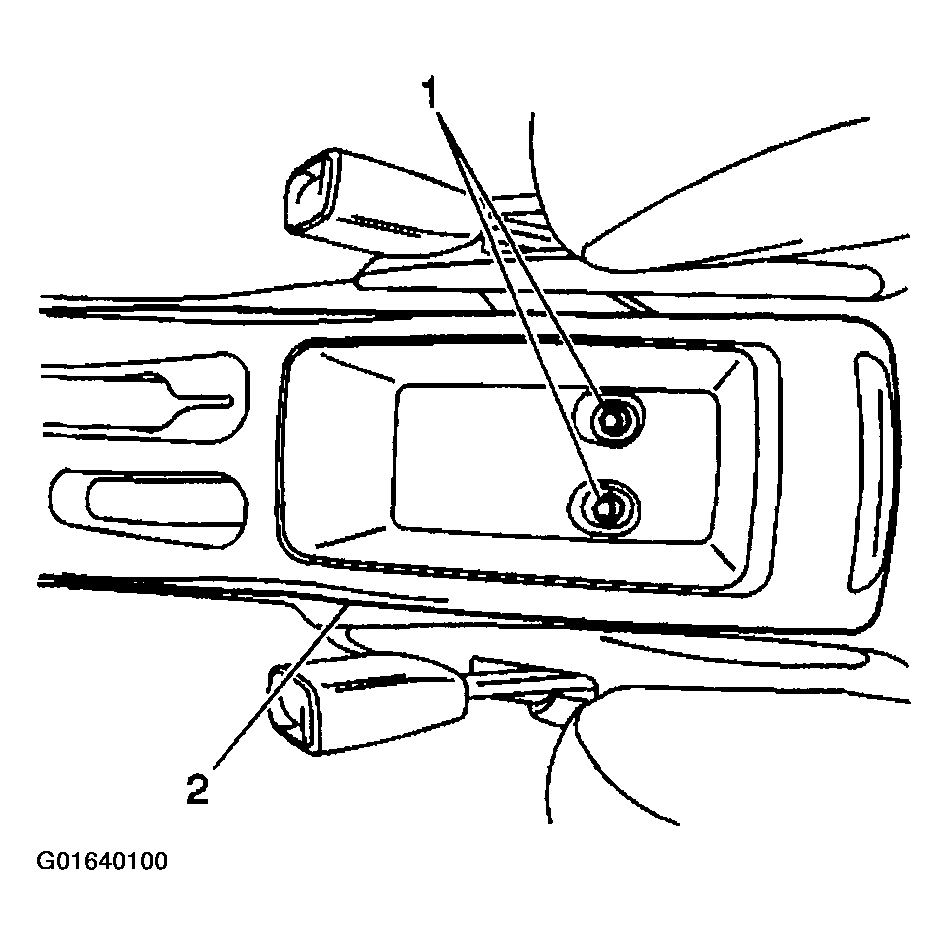

Fig 2: Installing 2 Bolts To Rear Compartment Of Rear Console
Courtesy of GENERAL MOTORS CORP.
Install the screw (3) to each side of the front floor rear console (2) which secures the rear console to the front floor front console (1).

Fig 3: Installing Screw To Each Side Of Front Floor Rear Console
Courtesy of GENERAL MOTORS CORP.
