Removal Procedure

  1. Remove the IP accessory center trim plate. Refer to TRIM PANEL REPLACEMENT - IP Center .
  2. Remove the cigar lighter rear retainer (3) from the cigar element housing.

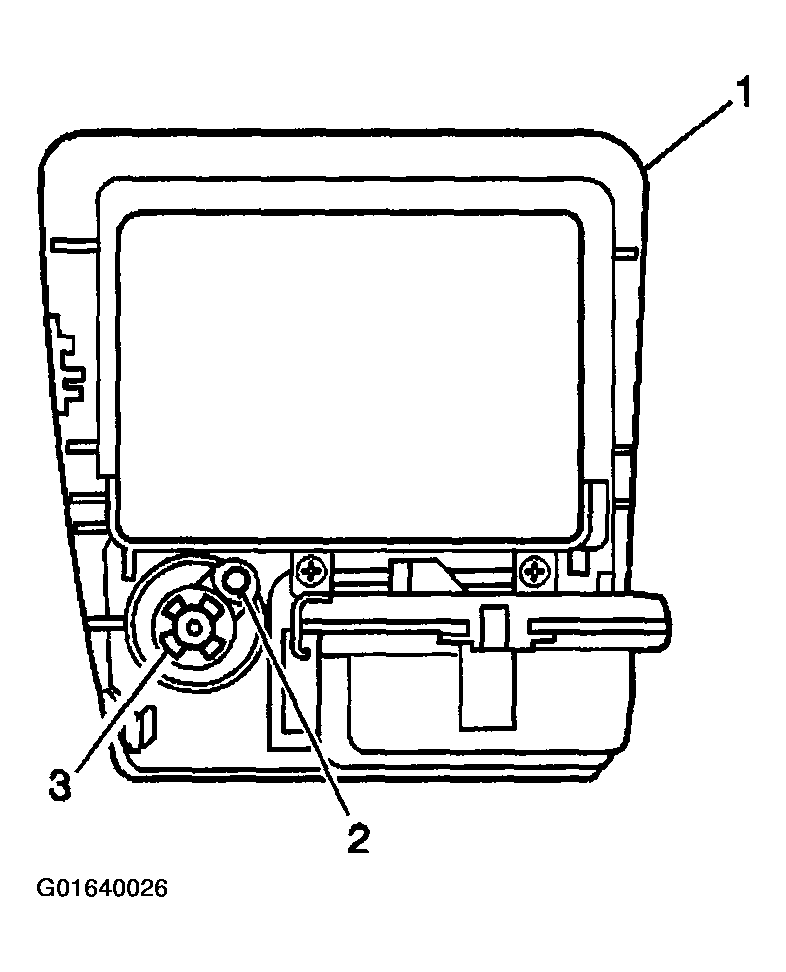

    3. Fig 1: Removing Cigar Lighter Rear Retainer
    G01640026Courtesy of GENERAL MOTORS CORP.
  3. Remove the cigar element housing and element from the center trim plate by turning counterclockwise 90 degrees and pushing on the back of the element housing.
  4. Remove the cigar lighter lamp lens (2) from the center trim plate (1), if necessary.
    Fig 2: Removing Cigar Lighter Lamp Lens From Center Trim Plate
    G01640027Courtesy of GENERAL MOTORS CORP.
